This is not just another speaker range. Each new generation of 800 Series Diamond is a landmark event for Bowers & Wilkins. This is their benchmark, their icon; the most advanced range of loudspeakers they know how to make. For Bowers & Wilkins, the 800 Series Diamond is everything they know, and everything they are.

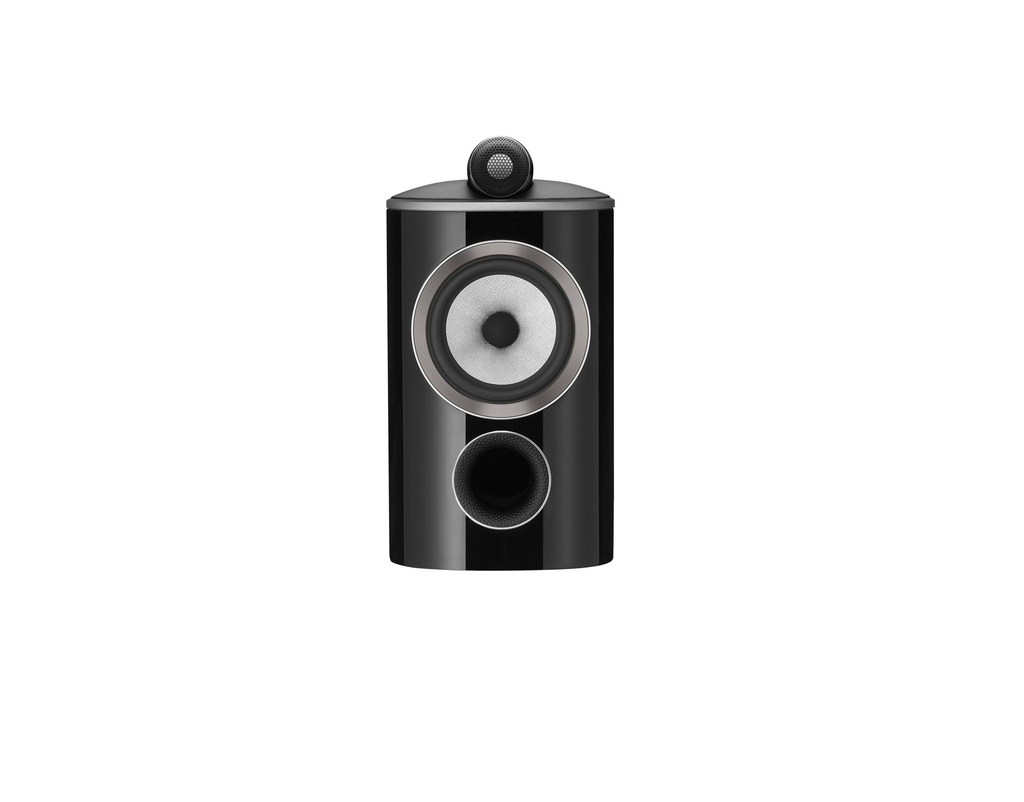

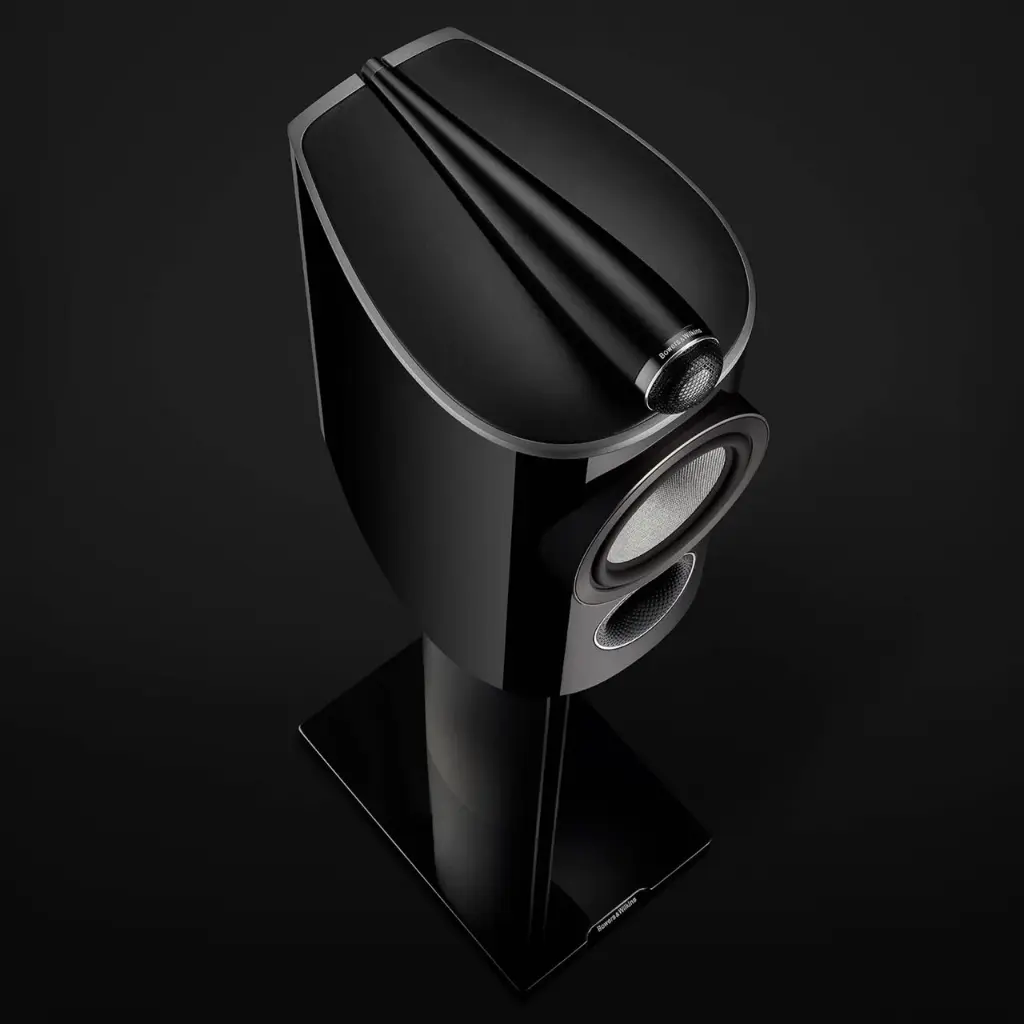

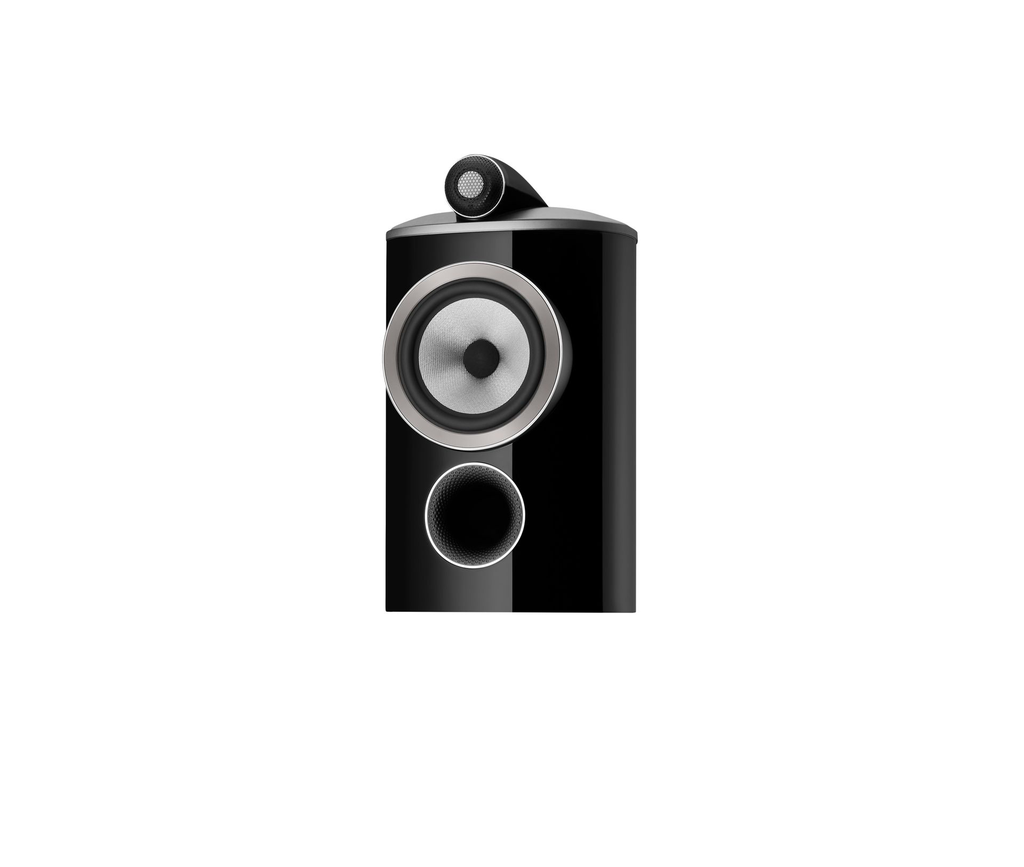

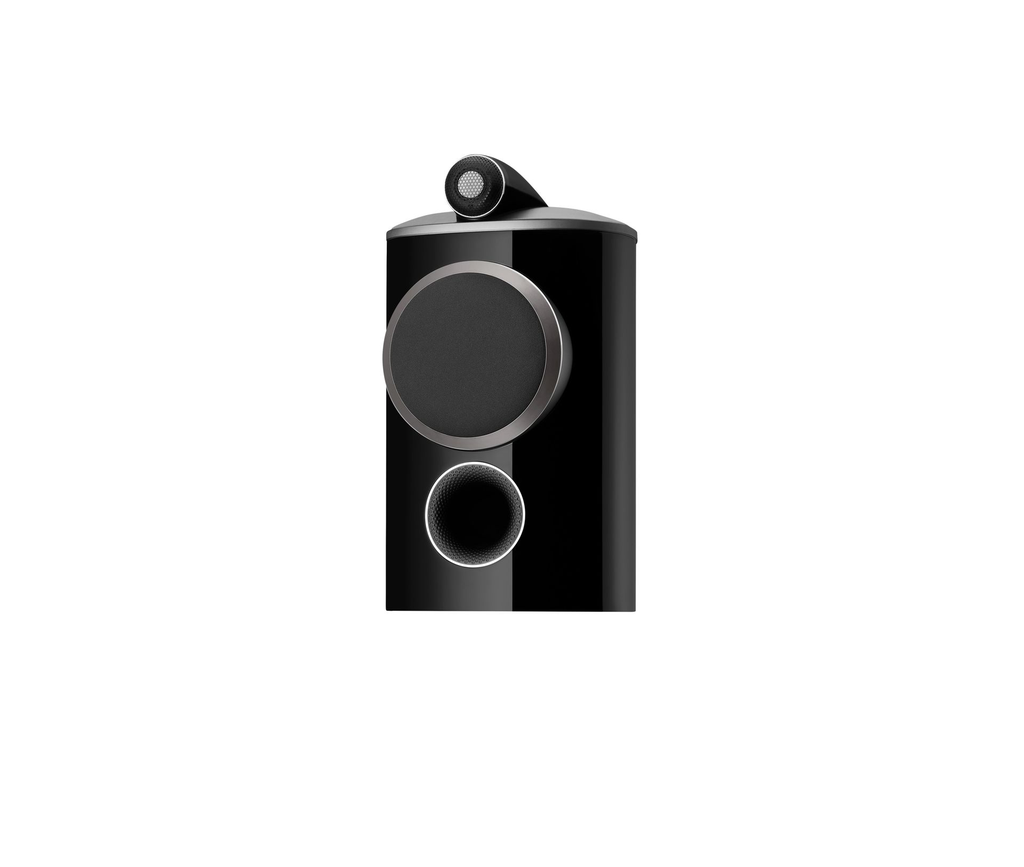

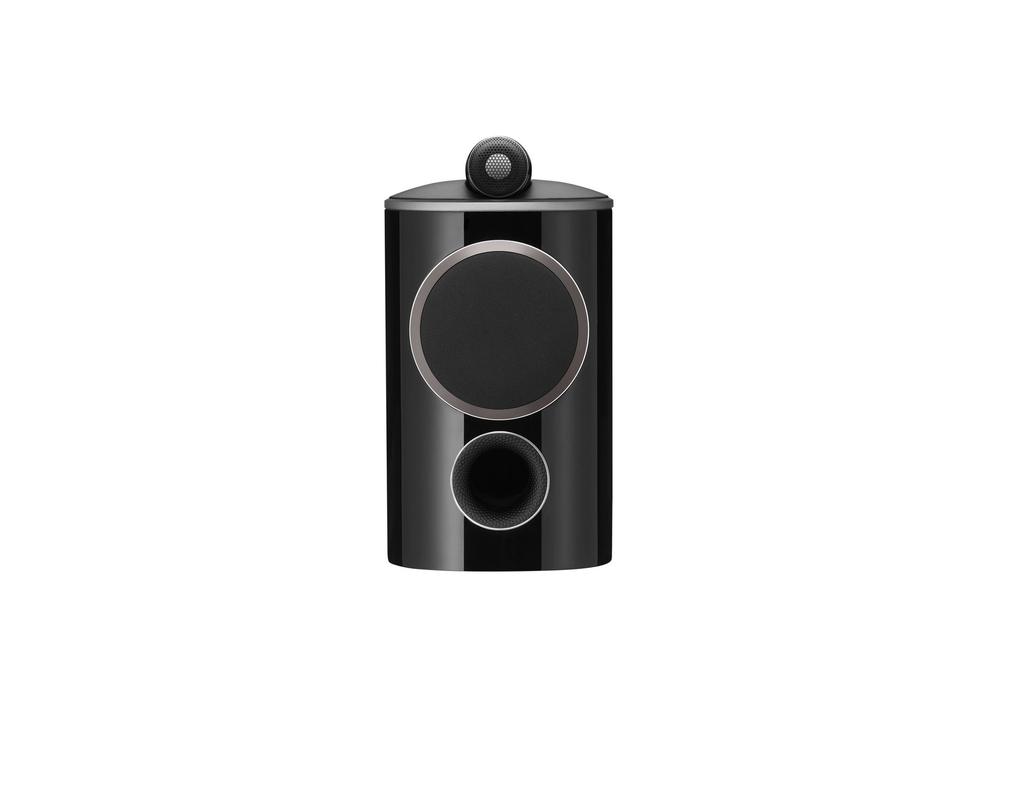

The 805 D4 stand-mount loudspeaker is the most compact model in the 800 Series Diamond range, but it's still packed with advanced technologies, including that all-important Diamond dome tweeter and Solid-Body Tweeter-on-Top. It's proof positive that small can still be beautiful.
Features
Diamond tweeter
Solid-body Tweeter-on-Top
Continuum cone bass/mid-Matrix™
Anti-Resonance plug
Flowport™
Solid-Body Tweeter
The iconic Solid-Body Tweeter-on-Top housing features an elongated form with a longer tube-loading system, creating an even more free and open sound with high frequencies. As before, the carefully decouples housing is milled from a single solid block of aluminum to better resist resonance.
Rear-Mounted Crossover

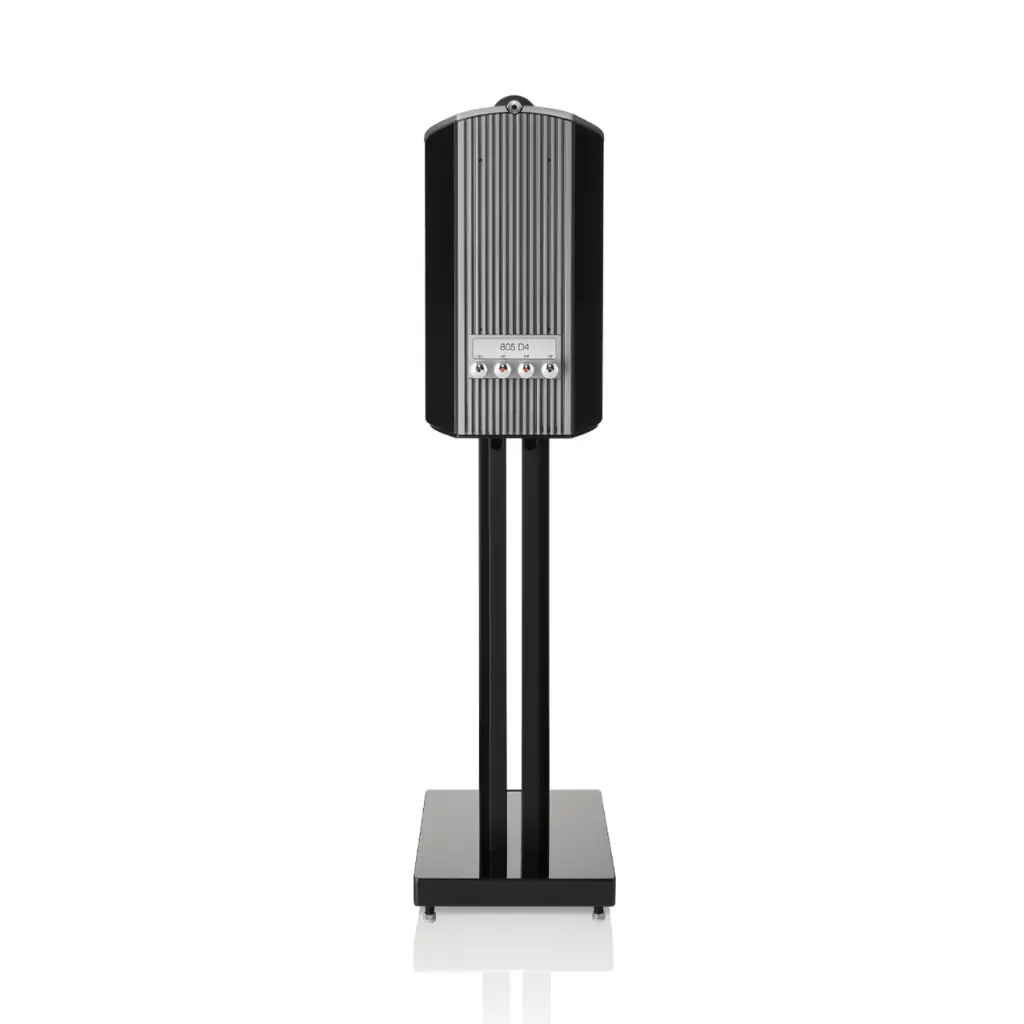

All stereo models in the new range now use rear-mounted crossover designs mounted on stiff aluminum spines. This isolates the sensitive capacitors from the effects of air pressure within the enclosure.

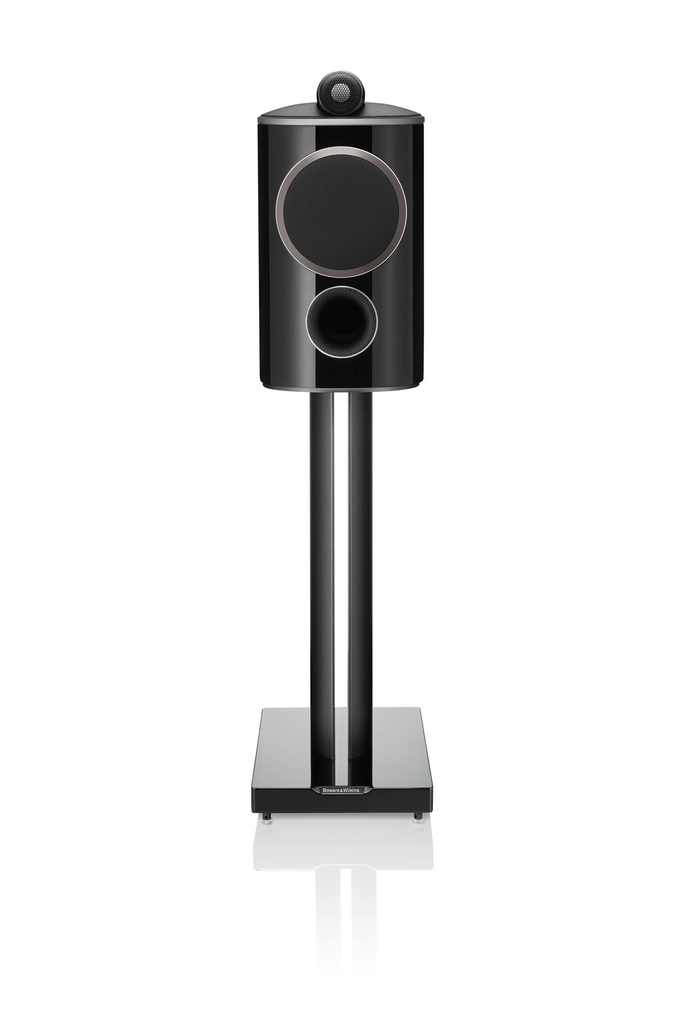

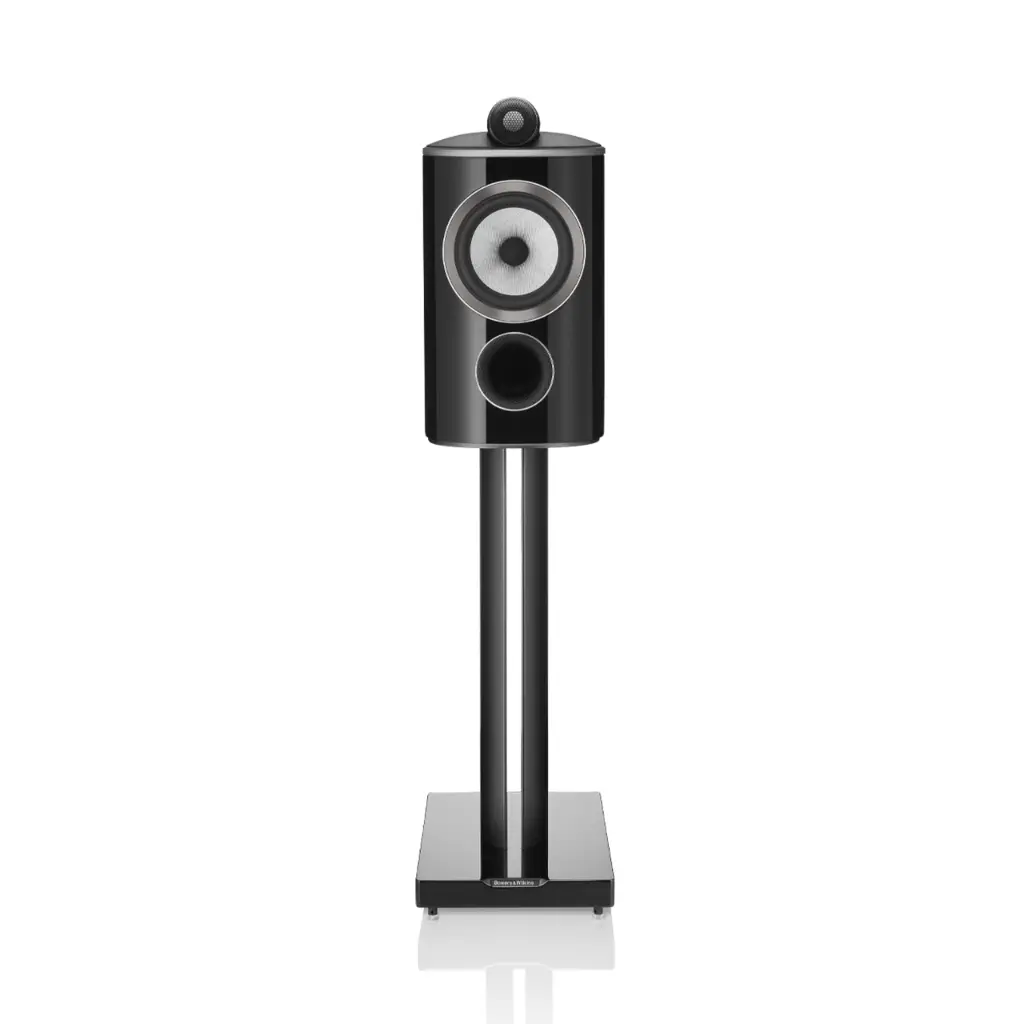

*Stand(s) Sold Separately
Description: 2-way vented-box system
Drive Units
1x 25mm (1 in) diamond dome high frequency
1x 165mm (6.5 in) Continuum cone bass midrange
Frequency Range: 34Hz to 35kHz
Frequency Response (+/- 3dB from reference axis): 42Hz to 28kHz
Sensitivity (on axis at 2.83Vrms at 1m): 88dB
Harmonic Distortion
2nd and 3rd harmonics (90dB, 1m on axis)
<1% 90Hz - 20kHz
<0.3% 120Hz - 20kHz
Nominal Impedance: 8Ω (minimum 4.6Ω)
Recommended Amplifier Power: 50W - 120W into 8Ω on unclipped program
Max. Recommended Cable Impedance: 0.1Ω
Dimensions (W x H x D): 9.45" x 17.32" x 14.68"
Weight: 34.28 lbs
805 D4 2-Way Bookshelf Speaker - Each
Manual
*Speaker Stand Sold Separately
Data Sheet
Installation Manual
CAD Drawings
