Data Outlet Diagnostic Services
Fundamental procedures to ensure a robust physical connection for optimal network connectivity
Testing and troubleshooting a network or data connection at a specific physical outlet (data point) involves verifying that the port is functioning correctly and can provide a stable connection to the network. This process typically includes using tools such as cable testers or a laptop to check for proper signal transmission, correct wiring, and active network link. If a problem is detected, the technician may trace the cable back to the patch panel or switch to identify issues like loose connections, cable damage, or incorrect port mapping. The aim is to ensure that the data point delivers reliable connectivity for any connected device, such as a computer, access point, or IP camera.
Step 1 : Locate the Patch Panel
Identify the specific patch panel that acts as the main connection point for all the data point cables that originate from the various wall outlets and route back to this central location.
Step 2 : Match Wall Data Ports to Patch Panel
Carefully trace and establish a connection between the designated wall data point and each of the corresponding ports found within the patch panel setup. In some scenarios, it is also possible to convert wall telephone port to wall data ports.
Step 3 : Label Each Connection

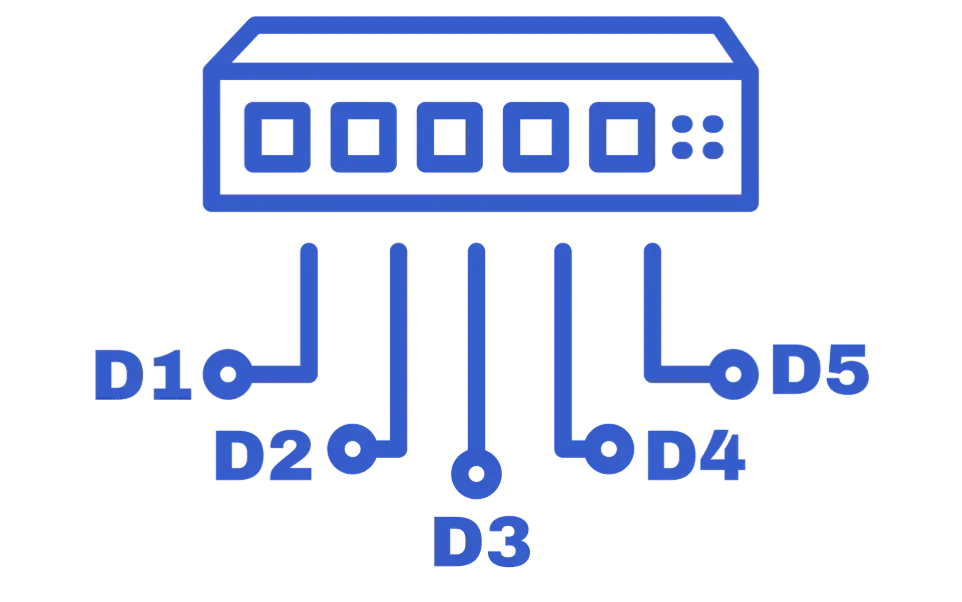

We ensure that each wall ports in the patch panel are labeled sequentially starting from D1, followed by D2, D3, and so on, to maintain clarity and organization in the setup.
Step 4 : Perform Comprehensive Continuity Testing
Utilize a continuity tester to check the electrical connection from the designated wall data point all the way to the specific port located in the patch panel, ensuring that there are no breaks or interruptions in the circuit.
Step 5 : Diagnostic Reporting and Analysis
Produce a comprehensive testing report as outlined below, and identify the specific wall data points that require correction in the subsequent phase of the project. It is essential to ensure that all discrepancies are noted and addressed to facilitate a smoother workflow moving forward.
All set for the deployment of the Wifi access point system

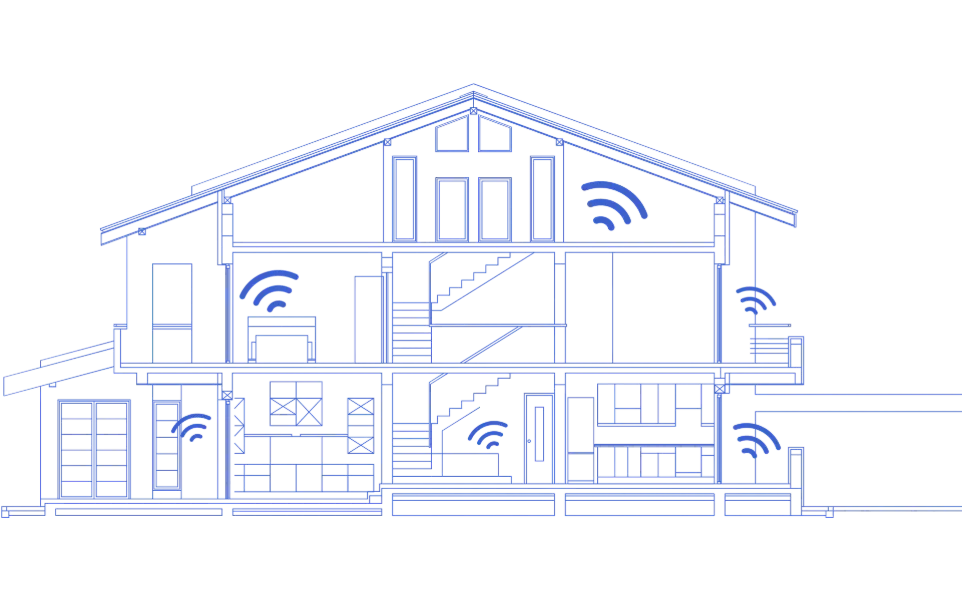

Once the data points have been thoroughly validated and confirmed to be functioning correctly, the next step involves the strategic installation of WiFi access points. This will ensure that every corner of the home receives robust and high-speed WiFi coverage, allowing for seamless connectivity across all devices and enhancing the overall internet experience for all users within the household.
