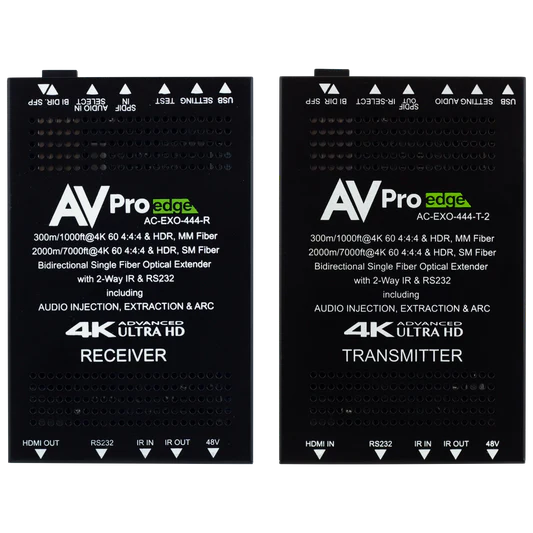

AVPro HDMI Fiber Extender Kit (4K60Hz 18Gbps, 300M MM Fiber, 2000M SM Fiber)

Video:
Video Resolutions	Up to 4K 60Hz 4:4:4
VESA Resolutions	Up to DCI 4K (4096x2160)
HDR Formats	HDR10, HDR10+, Dolby Vision (24/30 Frames), HLG, Dolby Vision
Color Space	YUV (Component), RGB  (CSC: Rec. 601, Rec. 709, BT2020, DCI, P3 D6500)
Chroma Subsampling	4:4:4, 4:2:2, 4:2:0 Supported
Color Bit Depth	Up to 16 bit (1080), Up to 12 bit (4K)
Down Scaling	4K (and HDR) down to 1080p
Audio:
Audio Formats Supported HDMI	PCM 2.0 Ch, LPCM 5.1 & 7.1, Dolby Digital, DTS 5.1, Dolby Digital Plus, Dolby TrueHD, DTS-HD Master Audio, DTS-X, Dolby Atmos
Audio Formats Supported Extracted  (Toslink Out, TX Only)	PCM 2.0 Ch, LPCM 5.1 & 7.1, Dolby Digital, DTS 5.1, Dolby Digital Plus (No Downmixing) - Extract Local or ARC
Audio Formats Supported  (Toslink Input, RX Only)	PCM 2.0 Ch, LPCM 5.1 & 7.1, Dolby Digital, DTS 5.1, Dolby Digital Plus  (No Downmixing) - Input for ARC
ARC (Audio Return Channel)	Via Toslink or HDMI
Fiber:
Type	Multimode (OM3 Recommended) Or Single Mode
Connector	LC (Lucent)
Recommended Fiber	Cleerline SSF
SFP (Small Form0Factor Pluggable Transceiver)	Universal and Changeable - 300M /2kM Built In
Distance:
OM3 Multi-Mode (Full 4k)	300 Meters (1000 Feet) (Cat 6a)
Single-Mode (Full 4k)	2KM (1.25 Miles) (Cat 6a)
HDMI Lead In/Out (4K60 4:4:4)	Up to 50 Feet (using Bullet Train HDMI)
HDMI Lead In/Out (w/ AOC Cable) (4K60 4:4:4)	Up to 130 Feet (using Bullet Train AOC)
Other:
Bandwidth	18 Gbps (W/ ICT)
HDCP	HDCP 2.3 and Earlier
Ports:
HDMI  (TX & RX)	Type A
Audio (Extracted / Embedded) (TX & RX)	Toslink
IR TX (TX & RX)	3.5MM Mono (2 Conductor)
IR RX (TX & RX)	3.5mm Stereo (3 Conductor)
RS-232 (TX & RX)	3-Pin Terminal Block
power  (TX & RX)	2-Pin Terminal Block
Environmental:
Operating Temperature	23 to 125°F (-5 to 51°C)
Storage Temperature	-4 to 140°F (-20 to 60°C)
Humidity Range	5-90% RH (No Condensation)
Power:
Power Consumption (Total)	12 Watts Max
Power Supply - Matrix	Input: AC 100-240V ~ 50/60Hz Output: DC 48V 0.5A
Dimensions:
Dimensions (Unit Only Depth/Width/Height)	MM: 83.4 X 131.23 X 21.37 INCH: 3.28 X 5.17 X 0.84
Dimensions (Packaged Depth/Width/Height)	MM: 138 x 165 x 91 INCH: 5.5 x 6.5 x 3.6
Weight (Unit)	6 lbs (0.27 KG)
Weight (Packaged)	1.6 lbs (0.72 KG)
*Specifications subject to change without notice.  Mass & dimensions are approximate

Extend 4K 60 4:4:4 and HDR Signals: Distance is no longer an obstacle. By using the AC-EXO-444-KIT you can go virtually any distance you require.  The pre-installed 10G SFP+ (Small Form-factor Pluggable transceiver) supports up to 2 km (1.25 Miles) when using a single strain of single-mode fiber or 300m (1000ft) on a single strain of readily available OM3 Multi-mode fiber.  You can go even further by replacing the 10G SFP+. SFP+'s are a staple in Fiber Optics today and are readily available - if you need help selecting an SFP+, just contact us!

Down Scaling: The AC-EXO-444-KIT has a scaling circuit built into the transmitter.  The scaler can scale 4K (and HDR) --> 1080P.  A common application for this is when you have a 4K distribution and you have one or two displays that are older. You can use the extender to scale down where you need to and not have to reduce the entire system.  The AC-EXO-444-KIT does the heavy lifting, eliminating the need to add additional boxes.

Total EDID Management: The AC-EXO-444-KIT has robust EDID control. EDID management allows you to manage the input device and request specific video resolutions and/or audio codecs.  the following EDID options are available:

• EDID Bypass
• 1080P 2CH Audio
• 1080P 8CH Audio
• 4K60 4:2:0 2CH Audio
• 4K60 4:2:0 8CH Audio
• 4K60 4:4:4 HDR 2CH Audio
• 4K60 4:4:4 HDR 8CH Audio
• USER EDID – EDID Copy

The EDID Copy function allows you to copy and save from any display or projector you want to.

On Board Troubleshooting: This unit allows you to generate a 1080P or 4K test pattern to identify external problems (source, repeater, displays, etc.). You can now be sure that your wiring is correct and get to the bottom of problems quickly should they arise, without having to worrying if the source or sink is working properly. You can generate a test pattern from the Tx or the Rx so you can verify total system infrastructure integrity.

Total ARC Management: With Total ARC (Audio Return Channel) Management you can route audio from local displays back to the rack or head end for further distribution in a distributed audio system. With the AC-EXO-444-KIT you can manage ARC in two ways:

• Use Toslink from the display ran into the Rx unit and then extract from the Toslink port on the Tx (recommended)
• Use the ARC HDMI port on the display and the extract from the Toslink port on the Tx

IR & RS232 Management: IR & RS-232 are bidirectional and can control the sources from the sinks or vice versa. In addition you can use the I-PASS port to plug your Control System emitter ports directly into the IR (I-PASS) port on the transmitter (via mono 3.5mm cable) for clean and reliable IR pass through, our unique VPC (Voltage Protection Circuit) allows you to do this without wear and tear on the electronics inside.
