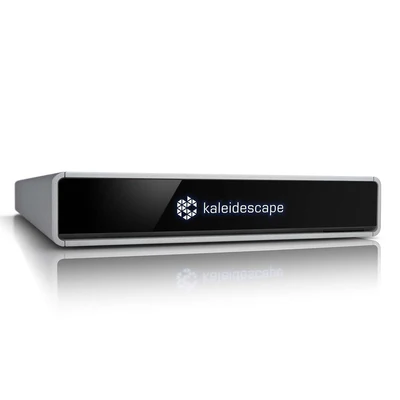

Kaleidescape Compact Terra Prime Movie Server 12TB (new)

https://www.hap.sg/web/image/product.template/2744/image_1920?unique=870fe65

S$ 0.00 0.0 SGD S$ 0.00 GST Included

Ask for Quote

This combination does not exist.

Contact Us


    Kaleidescape’s Next-Generation Movie Server with High Capacity

    Faster downloads than its predecessor, the Terra Prime adds increased performance and storage capabilities.

    Features

    • Serves up to 5 simultaneous Kaleidescape high-bitrate 4K movies
    • Terra Prime HDD can download a 4K movie in as little as eight minutes
    • Kaleidescape 4K movies have lossless audio and reference video
    • All movies are stored securely and protected by cloud backup
    • Terra Prime HDD 8TB stores  ~130 Kaleidescape high-bitrate 4K movies, ~220 HD movies, or ~1,200 SD movies
    • Up to four Terra servers can be combined for more storage

    • Enterprise-Class Hard Drives

    Terra Prime stores movies, TV series, and concerts on an array of enterprise-class hard drives. Content stored on the movie server are played back on Strato players.*

    Made in the USA

    Kaleidescape movie servers are custom-designed and manufactured for reliable, premium performance.

    Operating System

    Kaleidescape’s operating system (kOS) is custom-developed, managed, and controlled internally, with automatic updates, providing the best experience of any movie server on the market.

    Download Speed

    Terra Prime movie servers can download a Kaleidescape high-bitrate 4K movie in as little as eight minutes, with properly configured 2.5 Gbit/sec capable networking, hardware, and ISP.

    *Please Note: Kalesdescape Terra Movie servers require a Kalesdescape Strato Movie player (sold separately) to view content

Specifications

  • Movie Server
    • Downloads Kaleidescape high-bitrate 4K movies in as little as 8 minutes
    • Serves up to 5 simultaneous playbacks of Kaleidescape high-bitrate 4K movies
  • Network Requirements
    • 2.5 Gigabit Ethernet (recommended)
    • 1 Gigabit Ethernet (minimum)
  • Other Connection
    • USB 3.0 (reserved)
  • Environment
    • Temperature
      • Operating: 41 to 95°F (5 to 35°C)
      • Storage: -4 to 140°F (-20 to 60°C)
    • Relative humidity
      • 20 to 80% (operation)
      • 5 to 90% (storage)
    • Maximum operating altitude: 10,000ft (3,048m)
  • Ventilation
    • Airflow
      • Full Size - 10 CFM (17 m3/hr) max
      • Compact - 5 CFM (8.4 m3/hr) max
    • Spacing
      • Minimum 1in (2.5cm) space at the front
      • Minimum 2in (5cm) space at the rear
  • Certifications
    • CSA 62368-1
    • IEC 62368-1
    • FCC CLASS B
    • CE
    • RoHS Compliant
  • General
    • Dimensions (W x H x D):  7.87" x 1.52" x 14.33"
    • Weight: 7.2 lbs
  • Fan Noise
    • Typical: 25 dB(A)
  • Power
    • Consumption
      • Max: 29W
      • Typical: 24W
    • External power adapter
      • 150W with detachable line cord
      • 100-240V, 50-60Hz universal input
      • 12VDC @ 12.5A
  • Storage
    • Drives: One integrated 8TB hard drive
    • Stores:  ~130 Kaleidescape high-bit rate 4K movies, ~220 HD movies, or ~1,200 SD movies

What's In The Box

  • Terra Prime Compact Movie Server - 8TB HDD
  • Power Cord
  • Manual

*Please Note: Kalesdescape Terra Movie servers require a Kalesdescape Strato Movie player (sold separately) to view content


Data Sheet

Installation Manual

CAD Drawings
