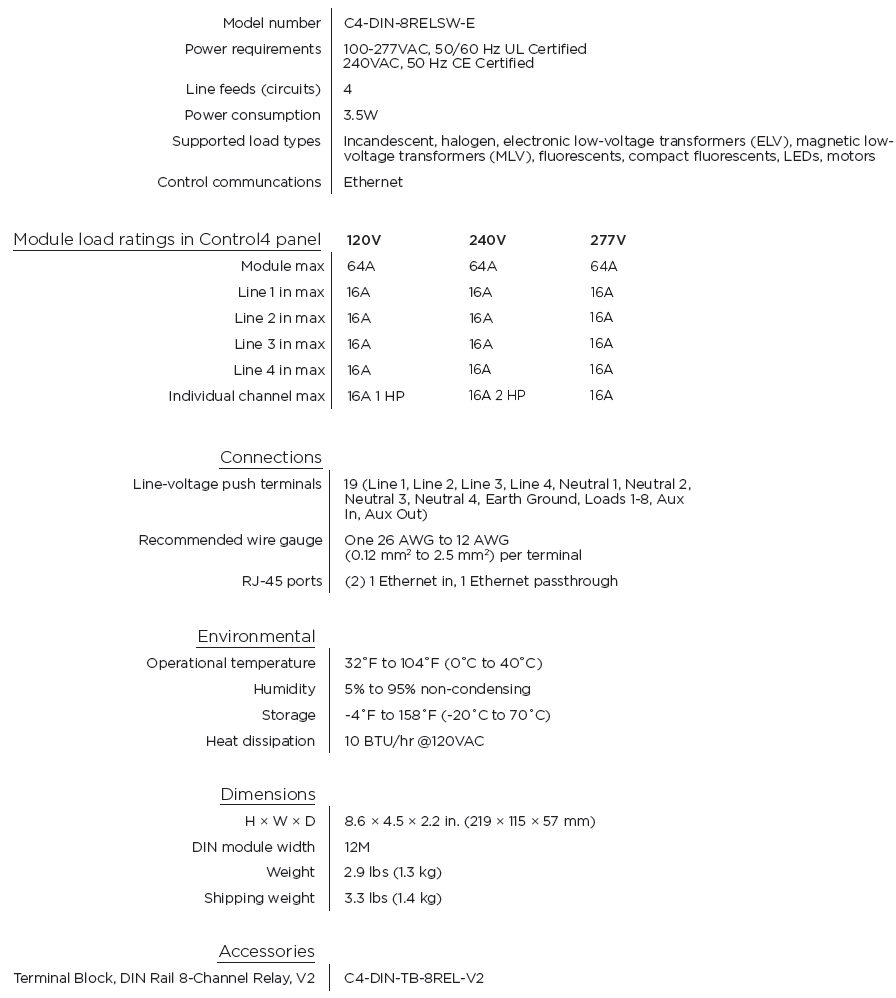

Channel status LEDs indicate whether a load is on or off
Module Override button allows toggling between the module override scene and all channels off or setting the module override scene to to the current channel's on/off settings
Module Status LED indicates if module power is on with normal operation, off, or in thermal overload
Link/Activity LED indicates system link status, communication activity, or firmware update status
Reset button can be used for restoring factory defaults or network configuration settings
Auxiliary override connection allows a standard line-voltage toggle switch to control the attached lights before the control system is installed or in case the controller malfunctions
Module can be installed in either a Contro4 5-Slot or 2-Slot Panel or in a third-party DIN-Rail Panel
