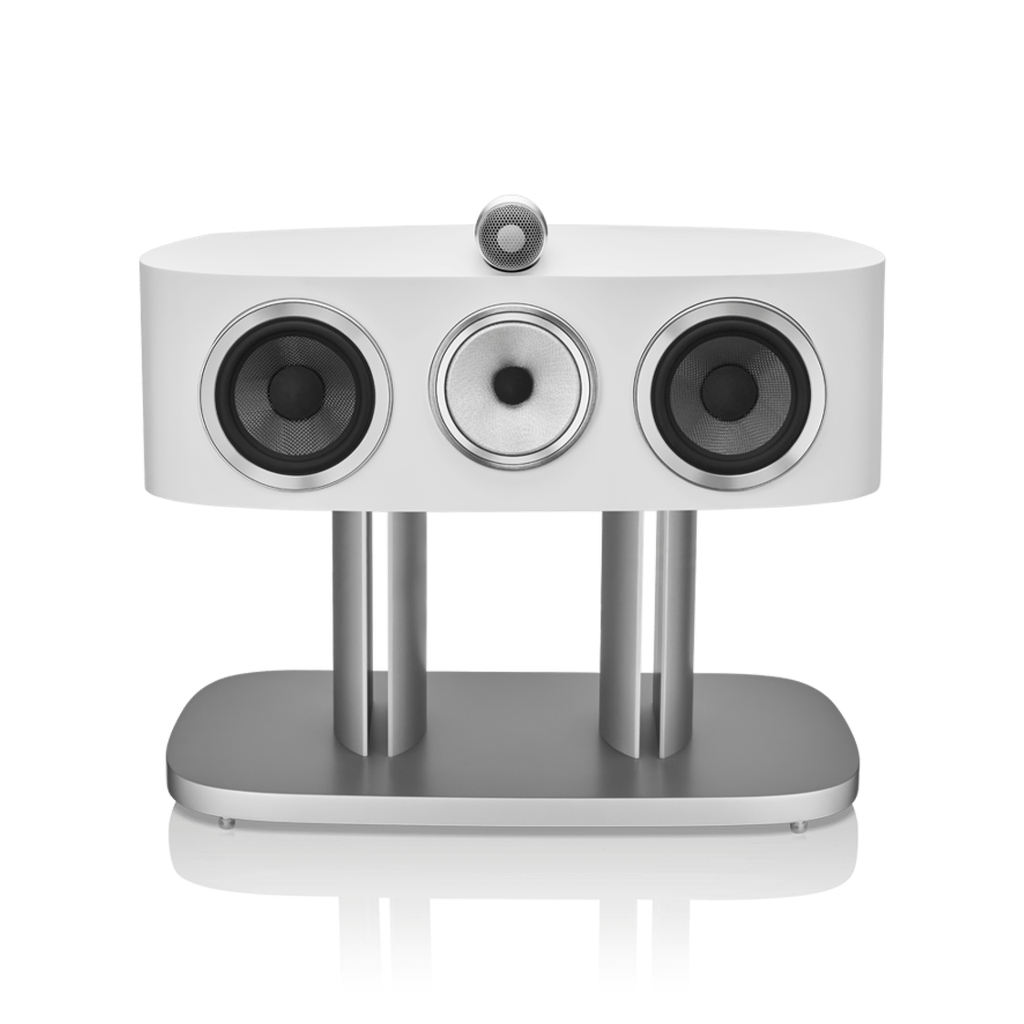

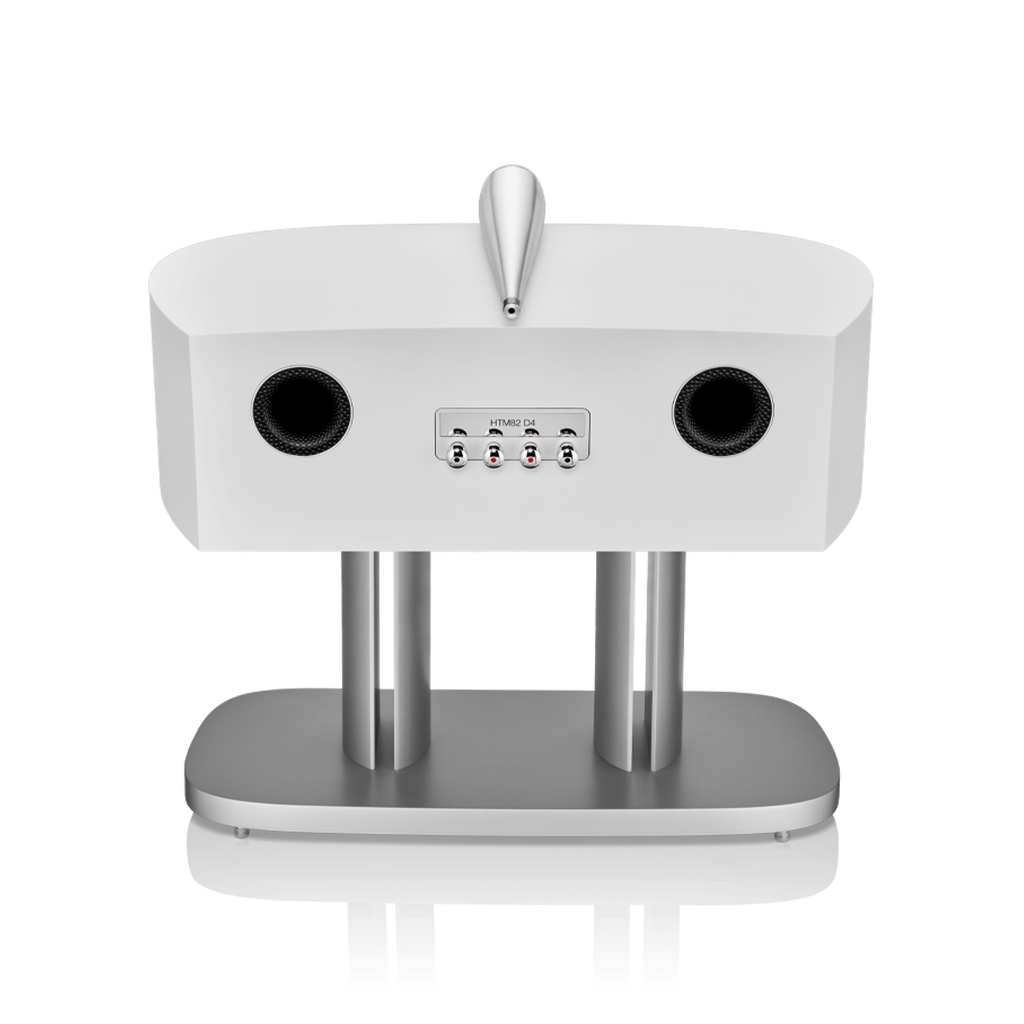

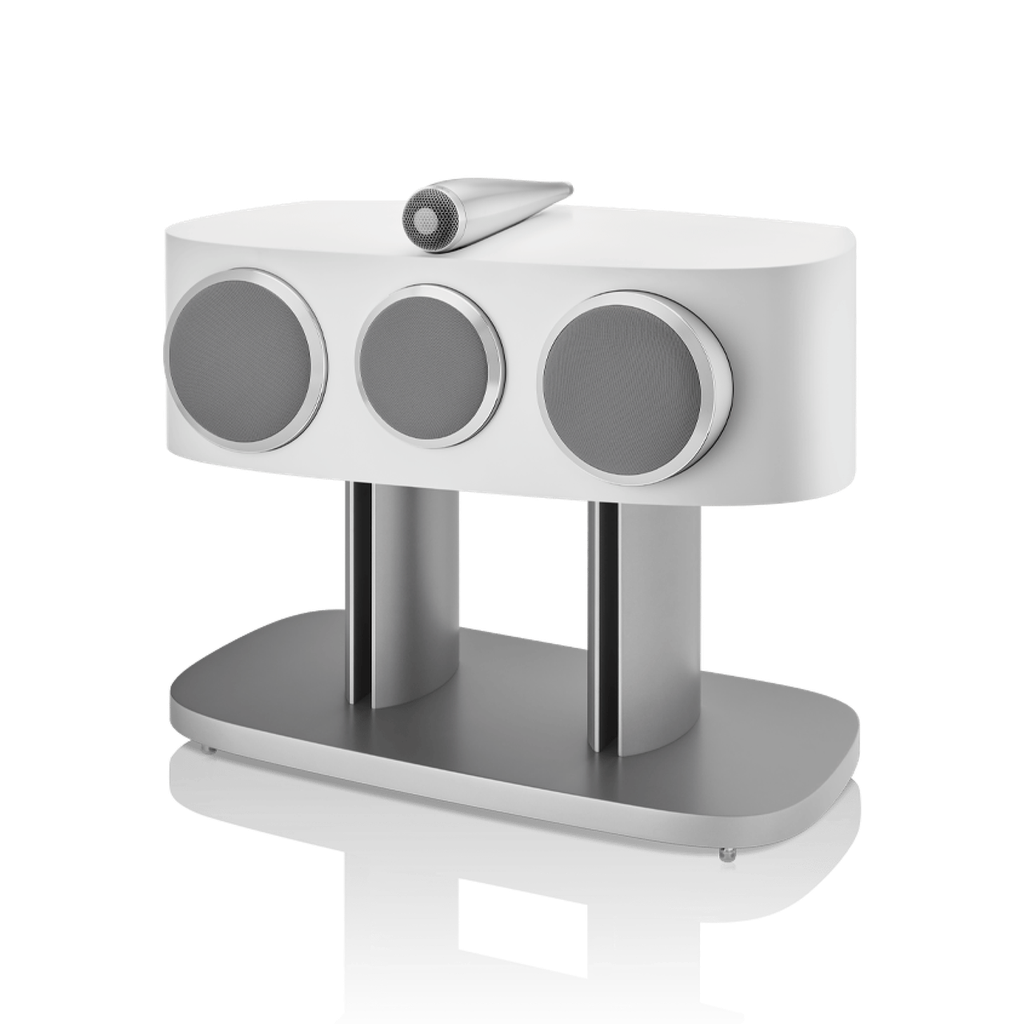

The Bowers & Wilkins HTM82 D4 is a high-performance center-channel speaker designed to perfectly complement 800 Series Diamond systems built around the 803 D4 or 804 D4. It delivers exceptionally clear and natural dialogue, ensuring voices and on-screen action are accurately reproduced and precisely positioned. Despite its more compact size compared to the flagship HTM81 D4, it incorporates the same advanced technologies, including the Diamond dome tweeter, Continuum midrange driver, and Aerofoil bass units, resulting in powerful, detailed, and well-balanced sound. Ideal for premium home theatre setups, the HTM82 D4 creates a cohesive front soundstage with impressive clarity and realism.
Drive Units:
1 × 25mm (1") Diamond dome tweeter
1 × 130mm (5") Continuum cone FST midrange
2 × 165mm (6.5") Aerofoil bass drivers
Frequency Response:
Approx. 45Hz – 28kHz (±3dB)
Frequency Range:
33Hz – 35kHz
Sensitivity:
~89dB (2.83V, 1m)
Impedance:
8Ω nominal (minimum ~3.0Ω)
Recommended Amplifier Power:
50W – 200W
Dimensions (each):
289mm (H) × 715mm (W) × 369mm (D)
Weight:
Approx. 25.1kg
Key Technologies:
Diamond Dome tweeter
Solid Body Tweeter-on-Top
Continuum cone with Biomimetic Suspension
Aerofoil bass drivers
Matrix bracing and Reverse-wrap cabinet
1 × HTM82 D4 center-channel speaker
Speaker grille(s)
Foam port bung (for bass tuning)
Rubber feet / isolation pads
Terminal link wires (pre-installed)
Documentation (manual & warranty)
Data Sheet
Installation Manual
CAD Drawings
