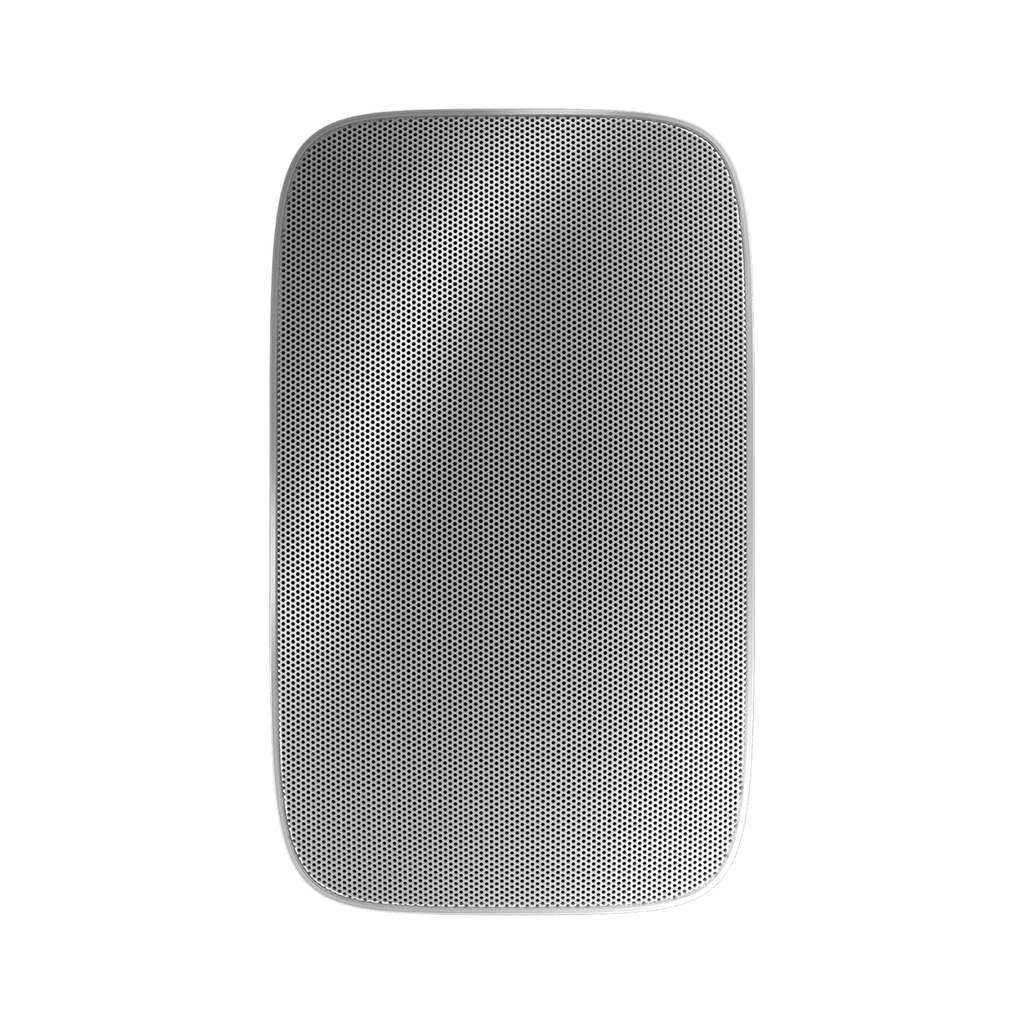

The Bowers & Wilkins AM-1 is a versatile outdoor speaker designed for both performance and durability. With its 5-inch woven glass-fiber bass driver and 1-inch aluminum dome tweeter, it delivers exceptional sound quality whether mounted on a wall or placed on a shelf. The AM-1 features a unique angled design that allows for optimal sound dispersion, making it ideal for patios, gardens, and other outdoor spaces. Its weather-resistant enclosure ensures reliable performance in various conditions, providing a premium audio experience without compromise.
Drive Units:
1x 5" woven glass-fiber bass driver
1x 1" aluminum dome tweeter
Frequency Range (-6dB): 47Hz - 33kHz
Sensitivity: 86dB (2.83V, 1m)
Nominal Impedance: 8Ω (minimum 6.5Ω)
Maximum Power Handling: 120W
Dimensions (H x W x D): 12.5" x 7.5" x 7.1"
Weight: 5.5 lbs
AM-1 Speaker
Data Sheet
Installation Manual
CAD Drawings
