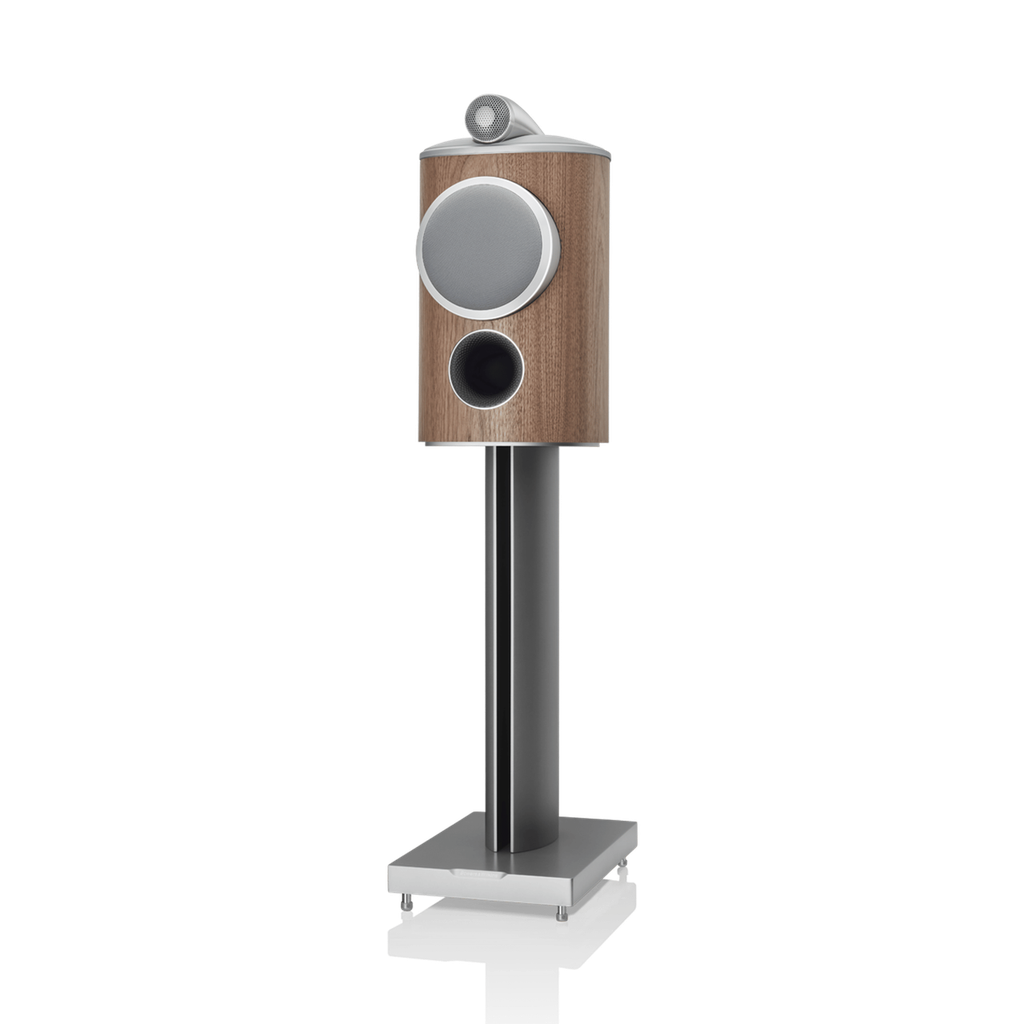

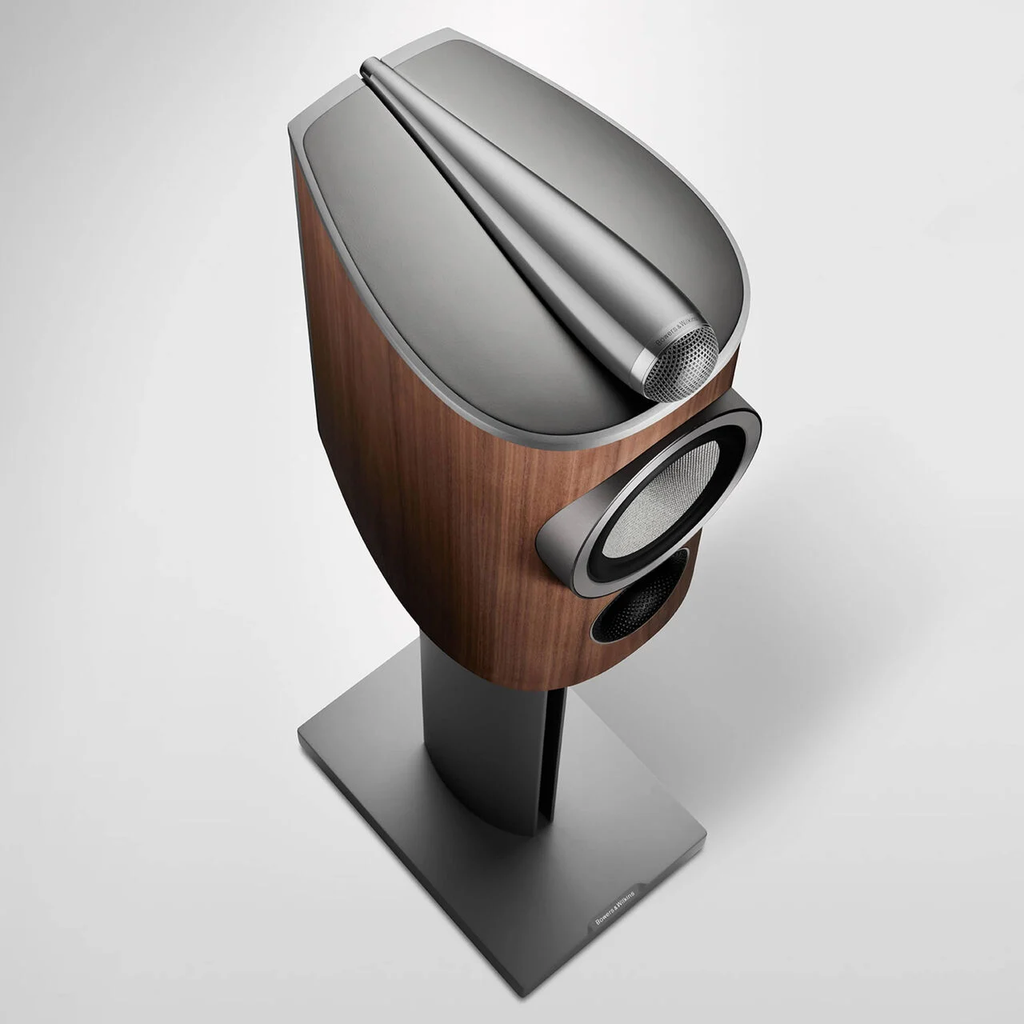

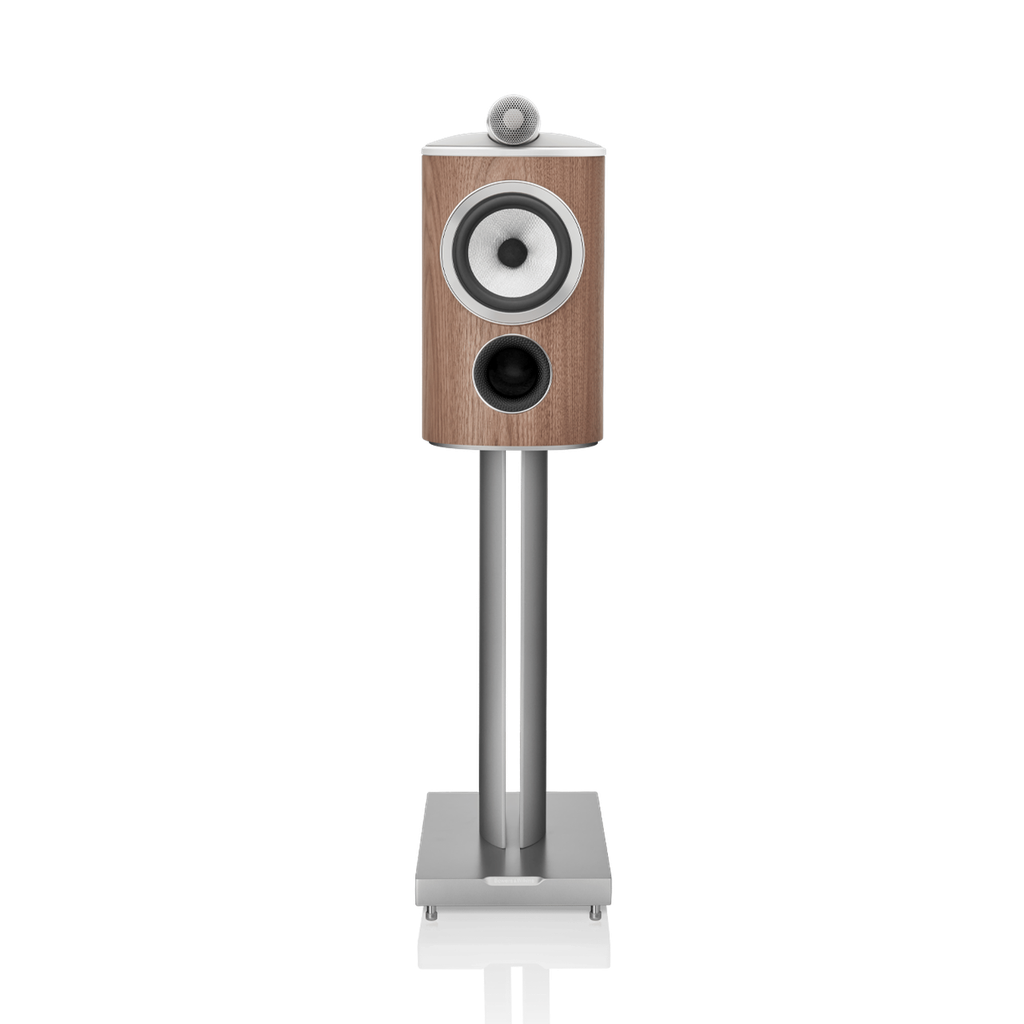

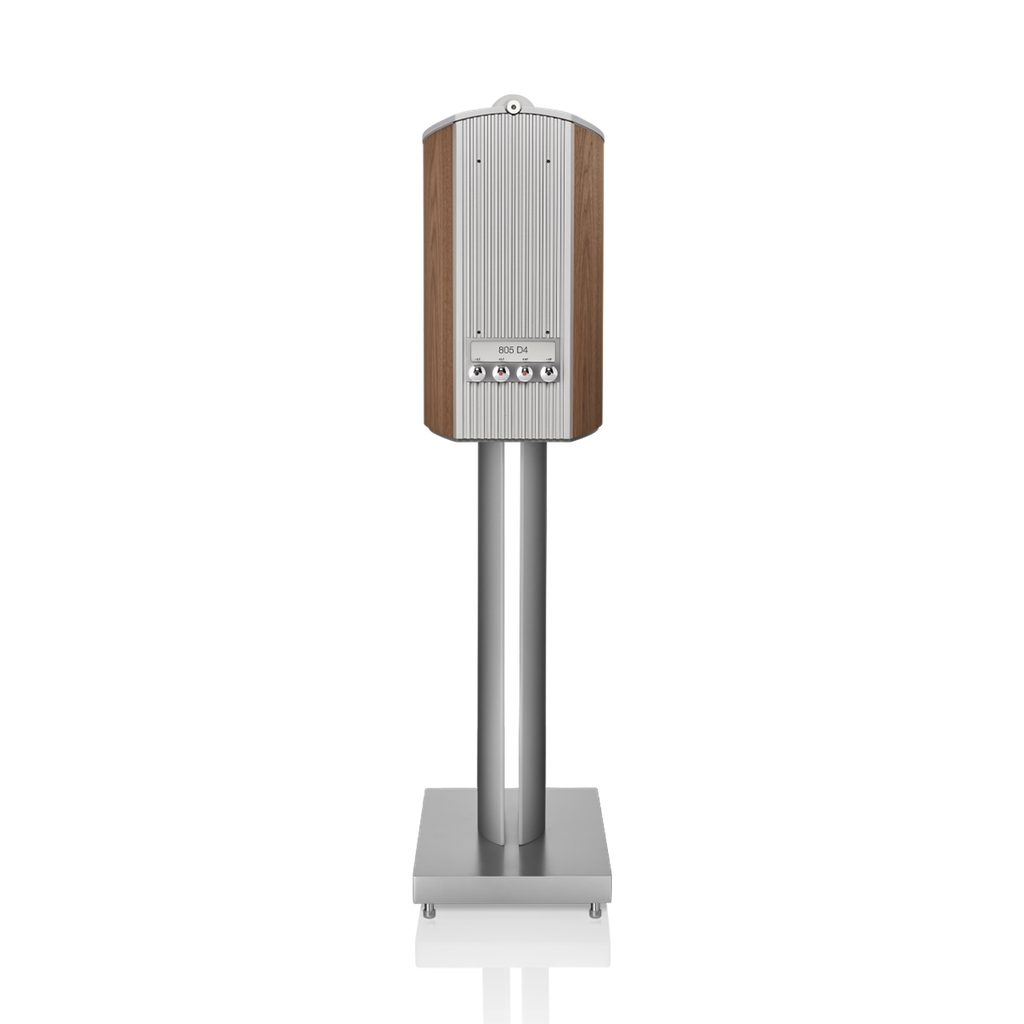

The Bowers & Wilkins 805 D4 speakers (pair) are the most compact model in the prestigious 800 Series Diamond range, designed for audiophiles who want reference-quality sound in a smaller, more flexible form.
Despite their size, they incorporate the same advanced technologies found in the larger models, including the Diamond dome tweeter and Continuum cone driver, delivering exceptionally clear highs, natural midrange, and precise, controlled bass.
Their solid, carefully engineered cabinet reduces resonance for cleaner sound, while the iconic Tweeter-on-Top design enhances detail and imaging. Perfect for smaller rooms or high-end desktop and stereo setups, the 805 D4 offers a rich, immersive listening experience with outstanding accuracy and refinement.
*Stand(s) Sold Separately
Drive Units:
1 × 25mm (1") Diamond dome tweeter
1 × 165mm (6.5") Continuum cone bass/midrange
Frequency Response:
Approx. 42Hz – 28kHz (±3dB)
Sensitivity:
88dB (2.83V, 1m)
Impedance:
8Ω nominal (minimum ~4.6Ω)
Recommended Amplifier Power:
50W – 120W
Design Features:
Solid Body Tweeter-on-Top
Continuum cone driver
Reverse-wrap cabinet construction
Matrix internal bracing
Biomimetic Suspension
2 × Standmount speakers (left & right)
Magnetic speaker grilles
Terminal link wires
Foam port bungs (for bass tuning)
Documentation (manual & setup guide)
*Speaker Stand Sold Separately
Data Sheet
Installation Manual
CAD Drawings
