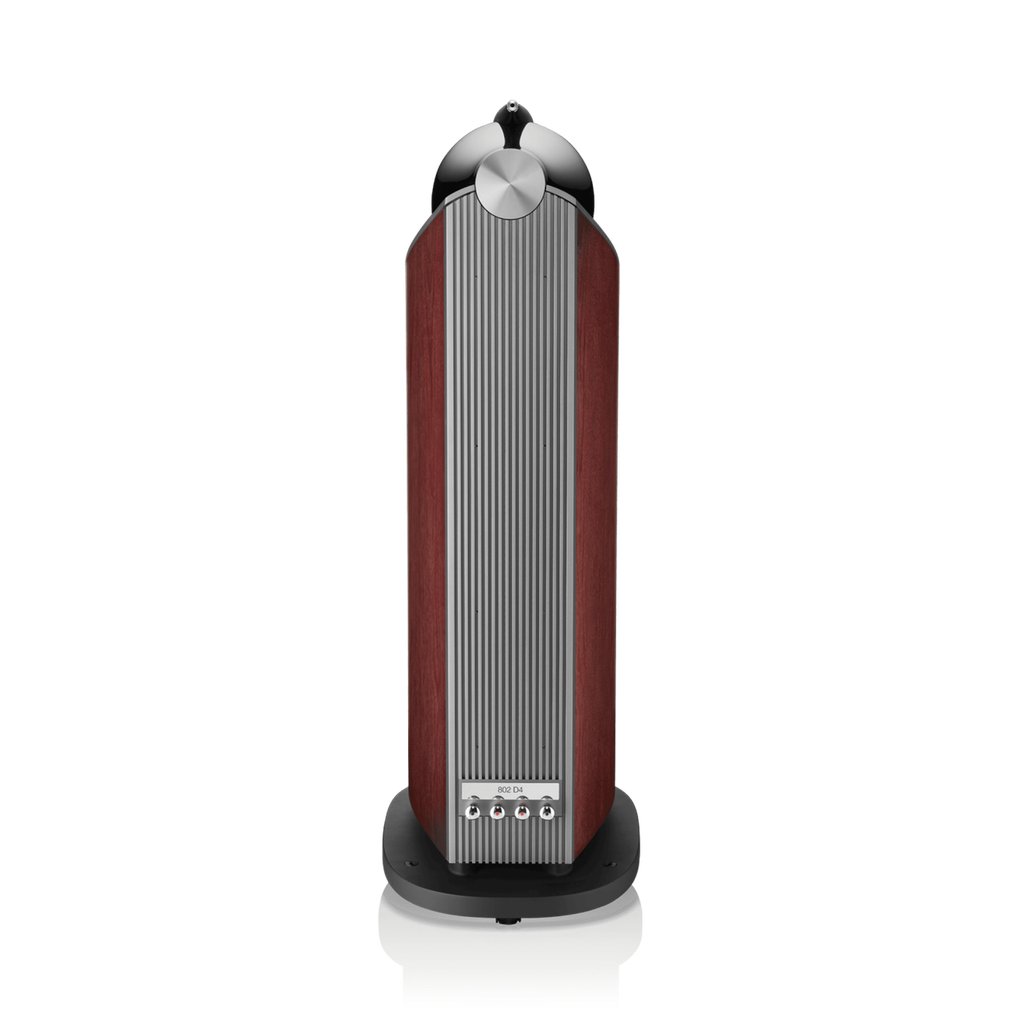

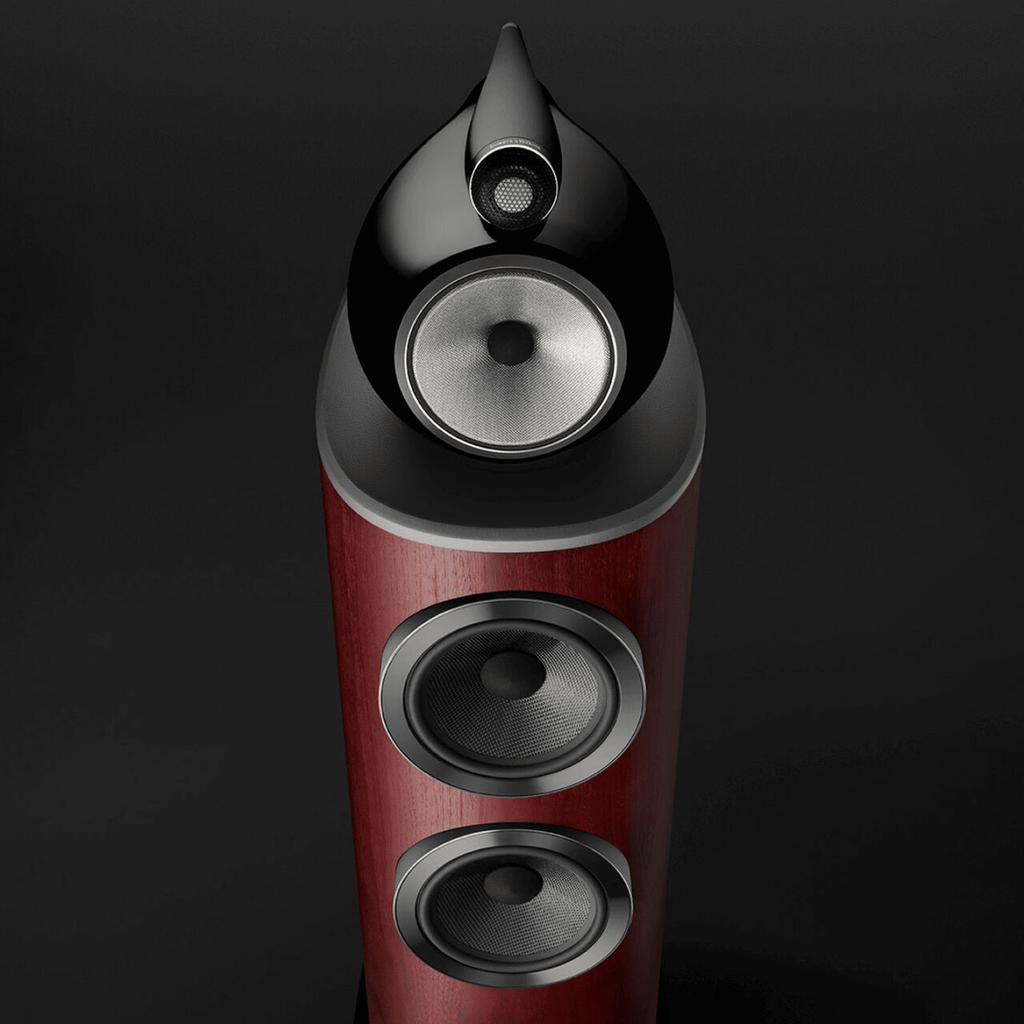

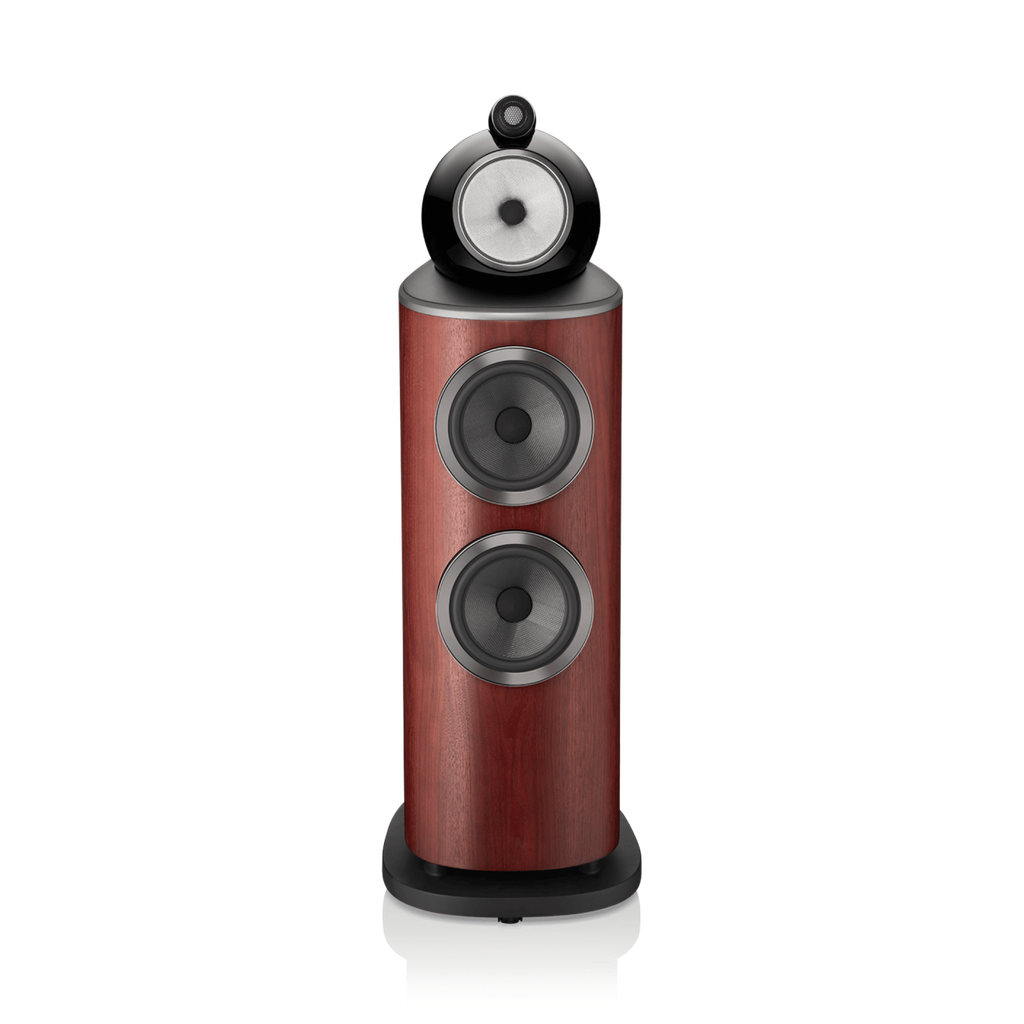

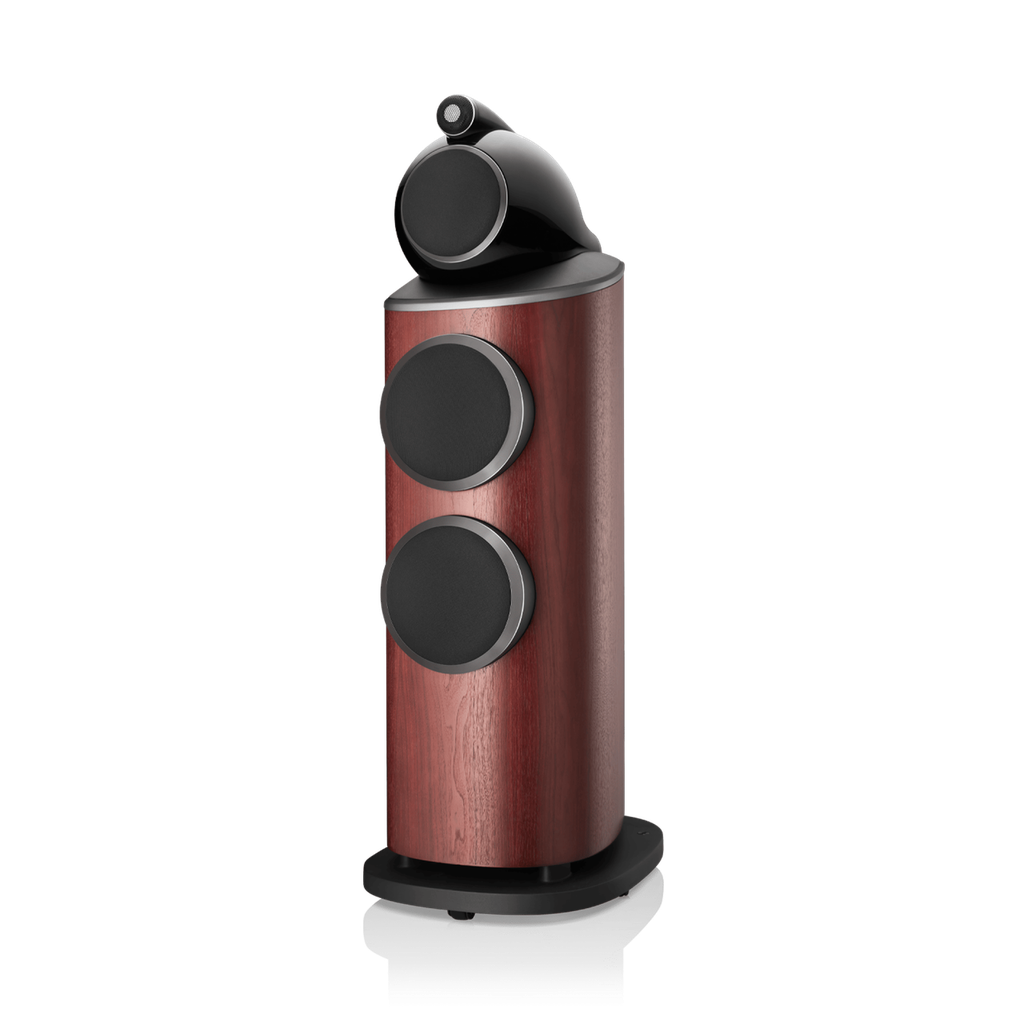

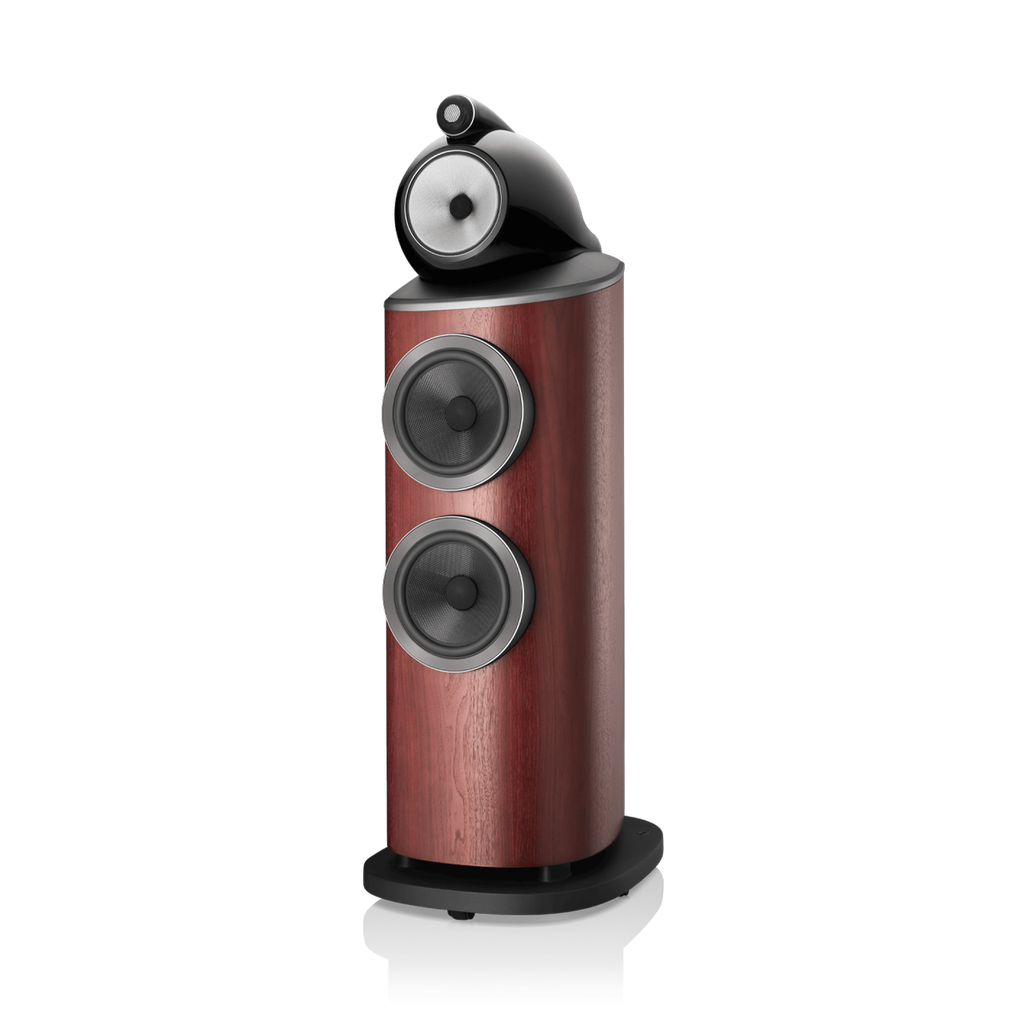

The Bowers & Wilkins 802 D4 speakers (pair) deliver exceptional high-end audio performance, bringing much of the flagship 801 D4 experience into a slightly more compact and versatile design. Engineered with advanced technologies such as the Diamond dome tweeter, Continuum midrange cone, and Aerofoil bass drivers, the 802 D4 produces powerful, detailed, and highly accurate sound across the entire frequency range.
Its dedicated Turbine Head enclosure for the midrange ensures minimal interference, resulting in a clean and natural presentation. Ideal for both premium stereo listening and high-end home theatre systems, the 802 D4 offers an immersive soundstage with impressive depth, clarity, and control.
Drive Units:
1 × 25mm (1") Diamond dome tweeter
1 × 150mm (6") Continuum cone midrange
2 × 200mm (8") Aerofoil bass drivers
Frequency Response:
17Hz – 28kHz (±3dB)
Sensitivity:
90dB (2.83V, 1m)
Impedance:
8Ω nominal (minimum 3.0Ω)
Recommended Amplifier Power:
Up to 500W
Dimensions (each):
1218mm (H) × 413mm (W) × 602mm (D)
Weight (each):
88.1kg
Key Technologies:
Diamond Dome tweeter, Solid Body Tweeter-on-Top, Turbine Head midrange, Continuum cone, Aerofoil bass drivers, Matrix bracing, Biomimetic Suspension
2 × Midrange grilles
4 × Bass grilles
4 × Terminal link wires
4 × Stabiliser feet
4 × Stabiliser caps
1 × T45 adjustment & wedge tool
1 × Metal spike adjustment bar
1 × Cleaning cloth
Data Sheet
Installation Manual
CAD Drawings
