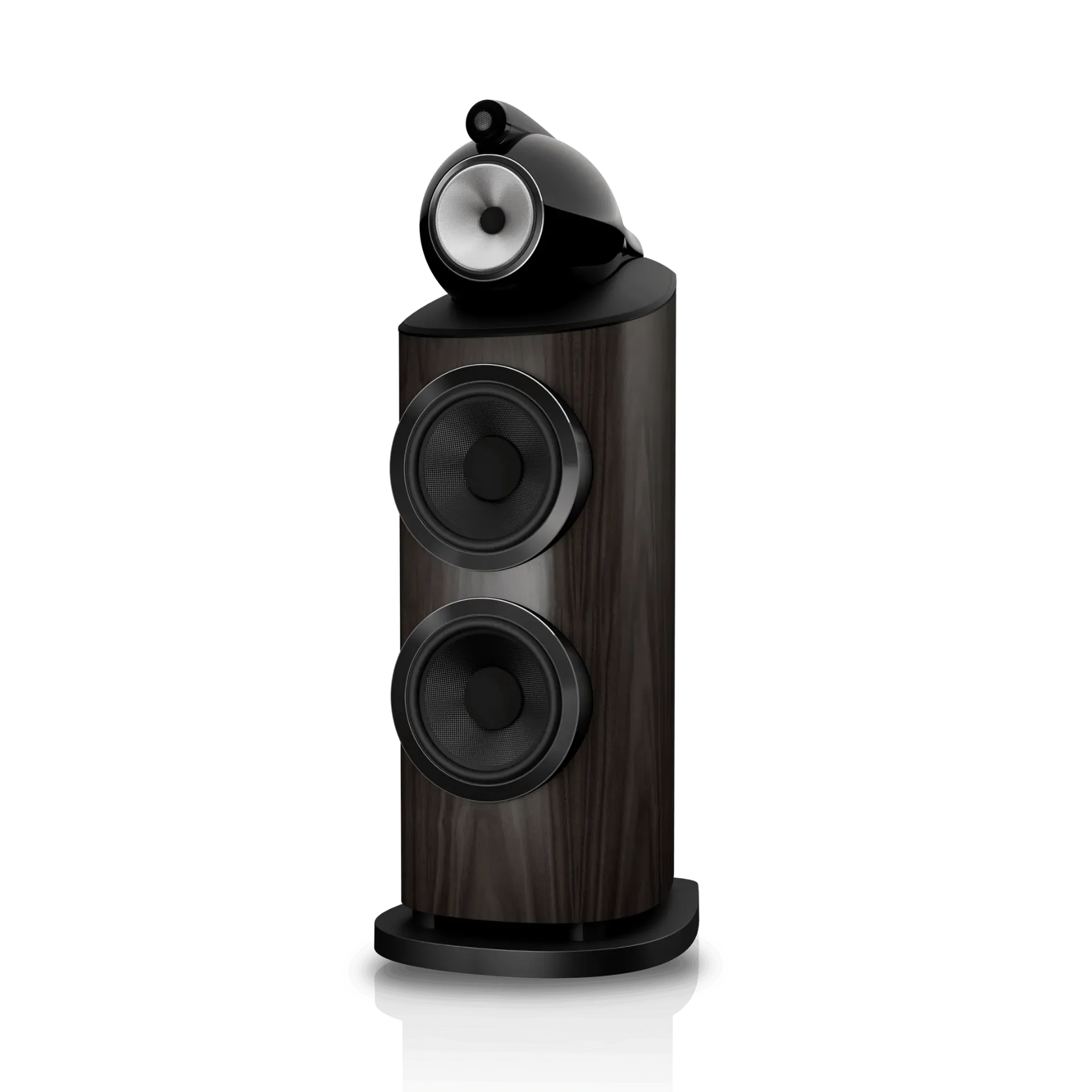

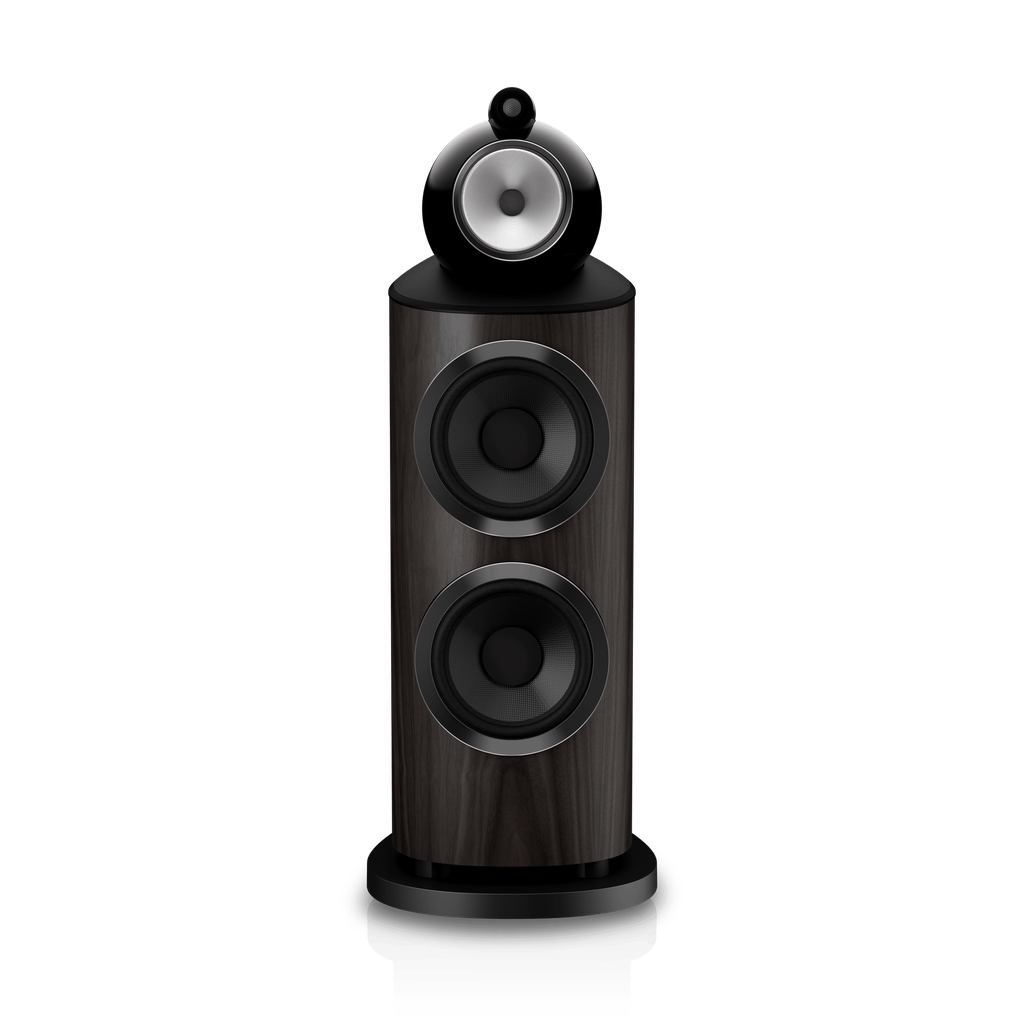

The Bowers & Wilkins 801 D5 is the pinnacle flagship floorstanding loudspeaker of the 800 Series Diamond range, representing the absolute reference standard trusted by premier recording studios and discerning audiophiles worldwide. Engineered without compromise, it combines Bowers & Wilkins' signature Diamond dome tweeter and decoupled Continuum FST midrange with authoritative dual 10-inch (250mm) Aerofoil bass drivers, delivering unmatched dynamic range, visceral low-frequency scale, and breathtaking acoustic realism.
Its full-scale cast-aluminium Turbine Head, interlocking Matrix internal bracing, and heavy aluminium Space Frame plinth provide an acoustically inert foundation that completely isolates mechanical vibration. This allows complex orchestral works and high-impact cinematic soundtracks to unfold with effortless spatial depth, microscopic resolution, and zero cabinet coloration. Imposing, majestic, and masterfully engineered, the 801 D5 is crafted for grand listening spaces, dedicated screening rooms, and uncompromising reference audio systems.
Drive Units:
1 × 25mm (1") Diamond dome tweeter
1 × 150mm (6") Continuum cone FST midrange
2 × 250mm (10") Aerofoil bass drivers
Frequency Response:
15Hz – 28kHz (±3dB)
Frequency Range:
13Hz – 35kHz (-6dB)
Sensitivity:
90dB (2.83V, 1m)
Impedance:
8Ω nominal (minimum 3.0Ω)
Recommended Amplifier Power:
50W – 1000W into 8Ω
Dimensions (each):
1221mm (H) × 451mm (W) × 600mm (D), including plinth
Weight (each):
100.6kg
Key Technologies:
Diamond Dome Tweeter, Solid Body Tweeter-on-Top, Turbine Head, Continuum Cone FST Midrange, Anti-Resonance Plug, Biomimetic Suspension, Matrix, Aerofoil Bass Cones, Flowport, and aluminium Space Frame Bracing.

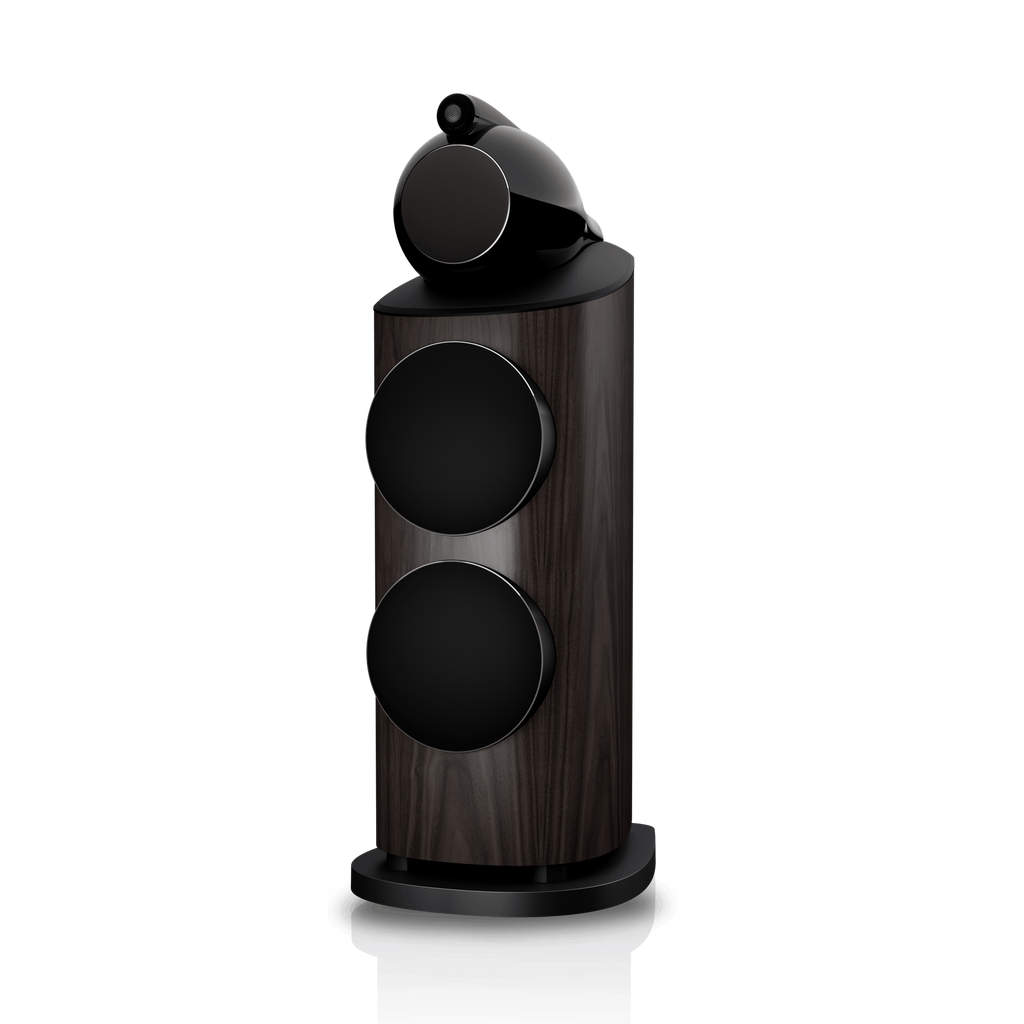

2 × Midrange grilles
4 × Bass grilles
4 × Terminal link wires
Floor spikes and floor protectors
1 × Wedge adjustment tool
1 × Tommy bar
1 × Spanner
1 × Microfibre cleaning cloth
1 × User manual
1 × Warranty booklet
1 × Registration card
Data Sheet
Installation Manual
CAD Drawings
