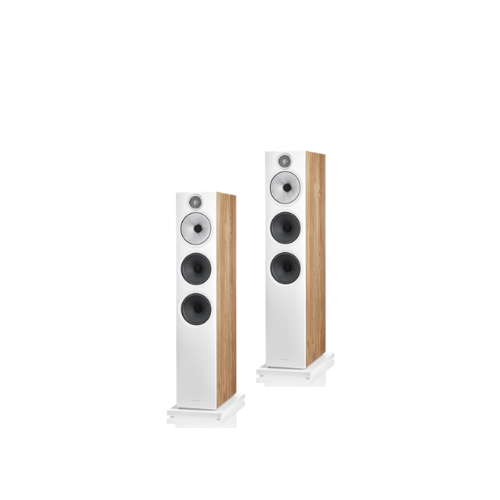

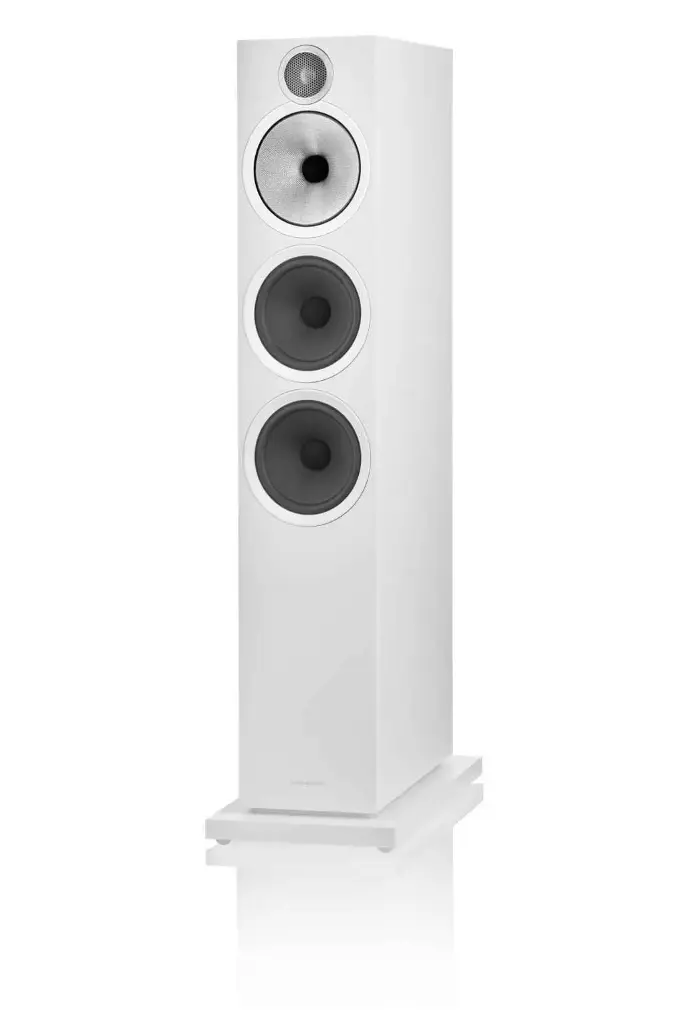

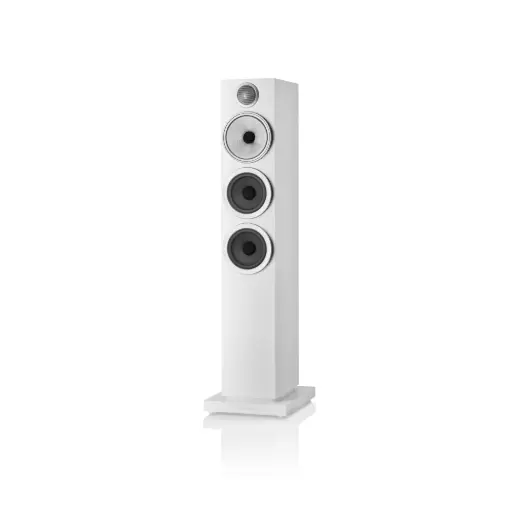

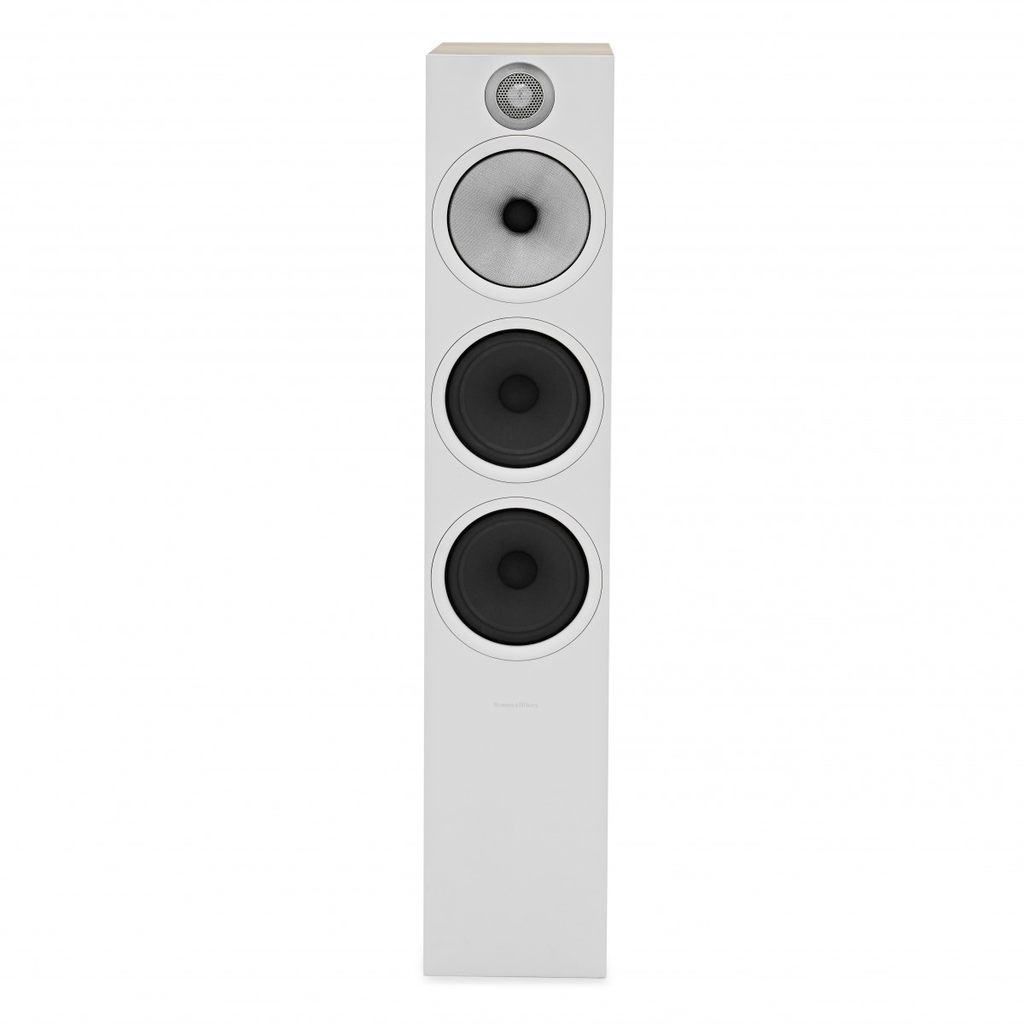

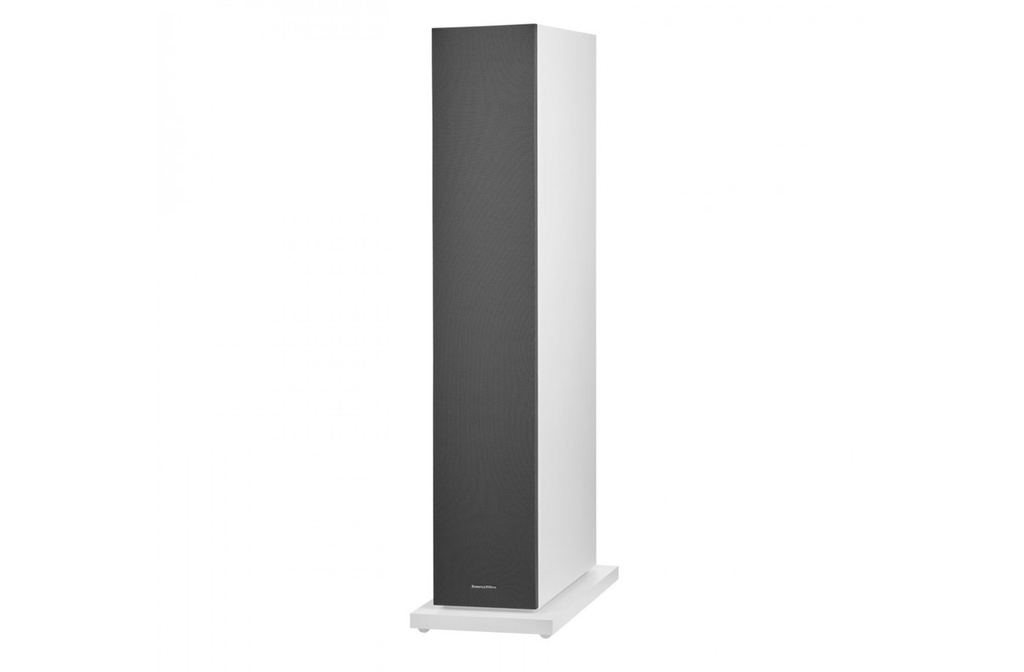

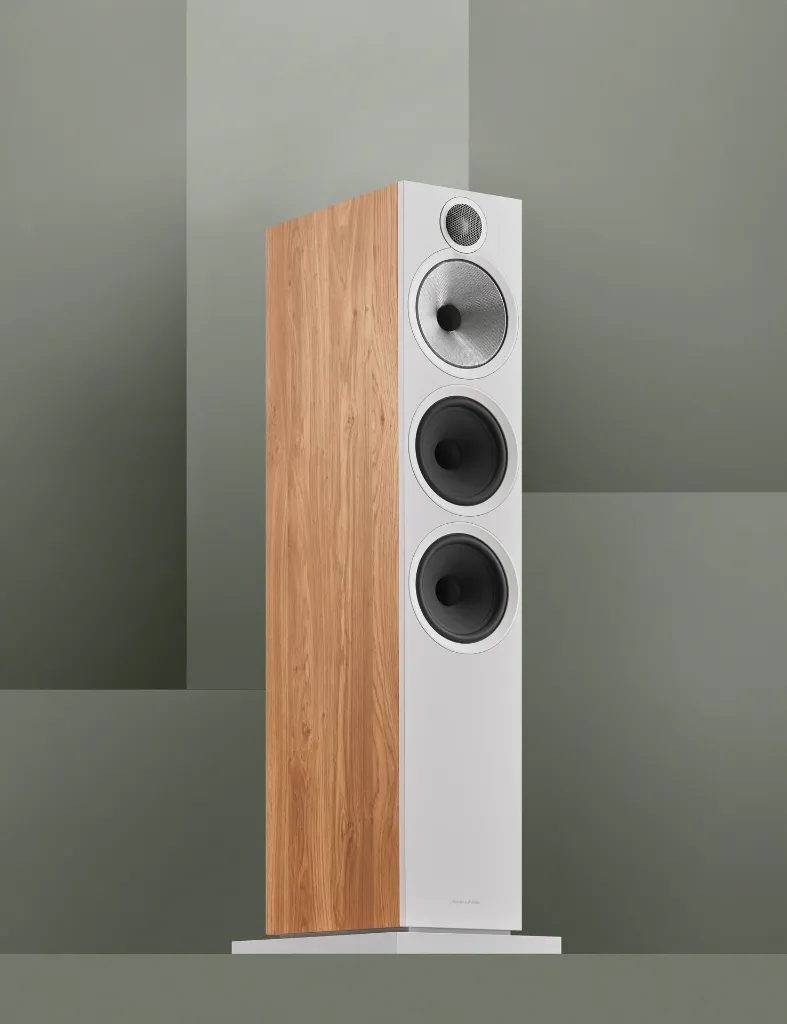

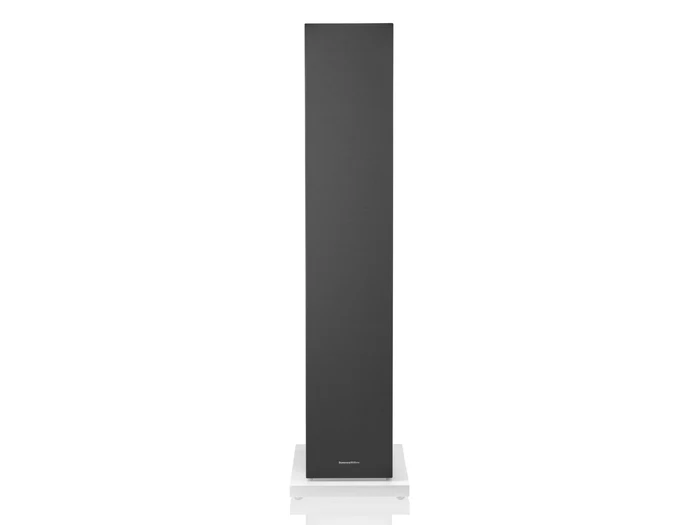

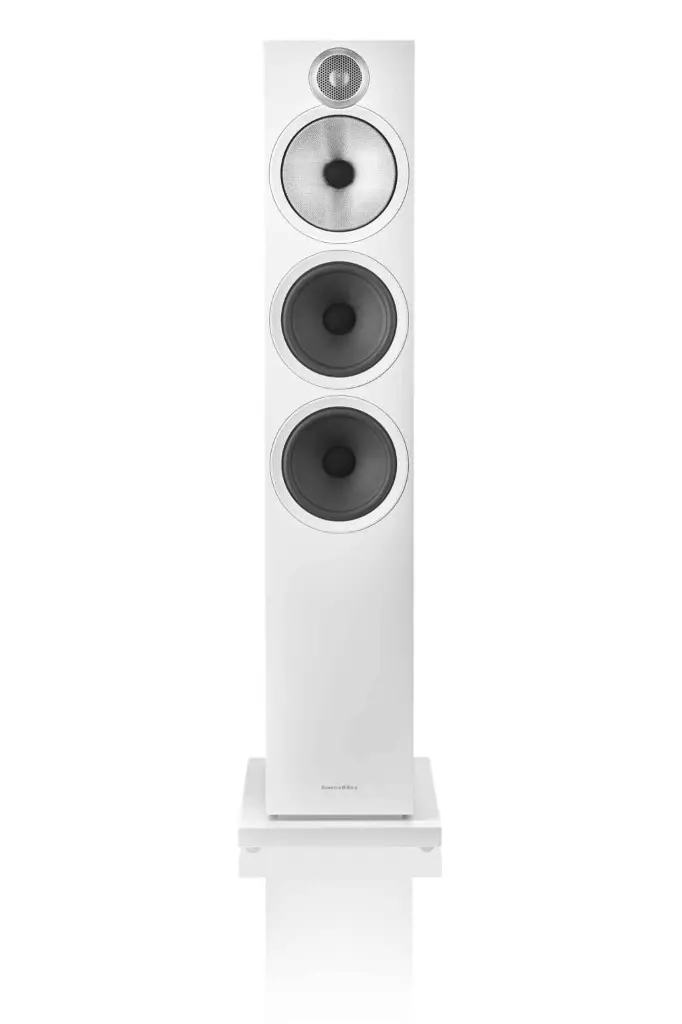

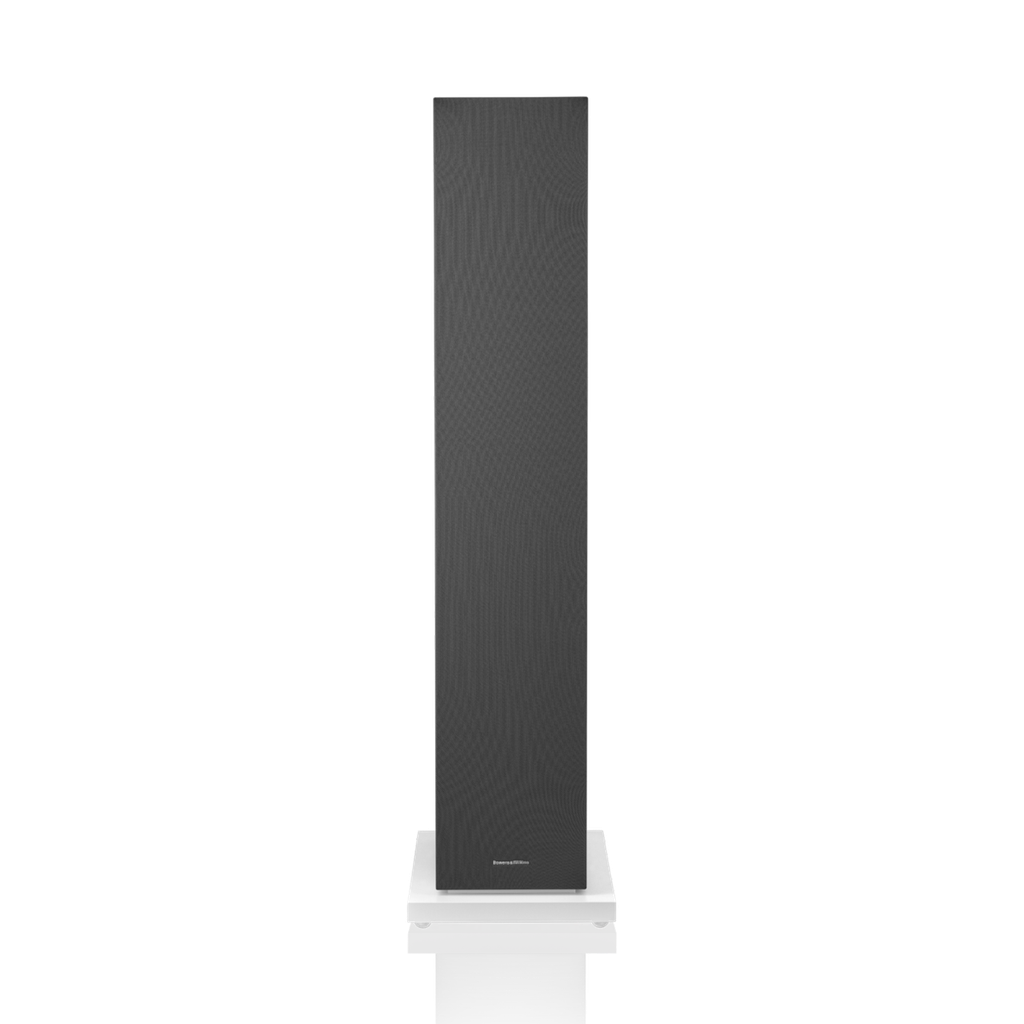

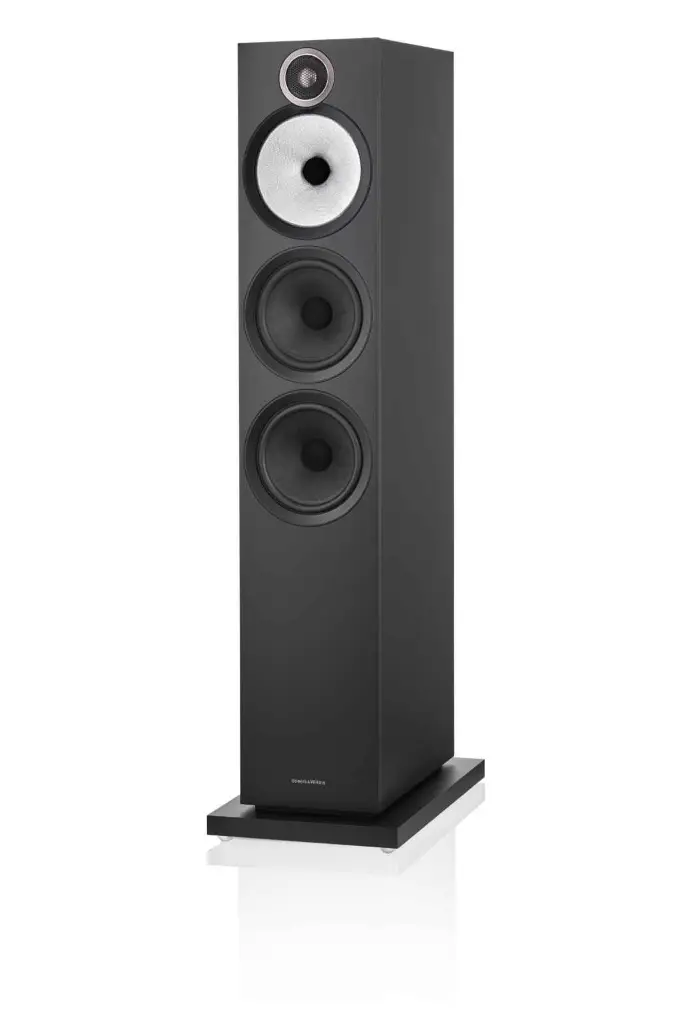

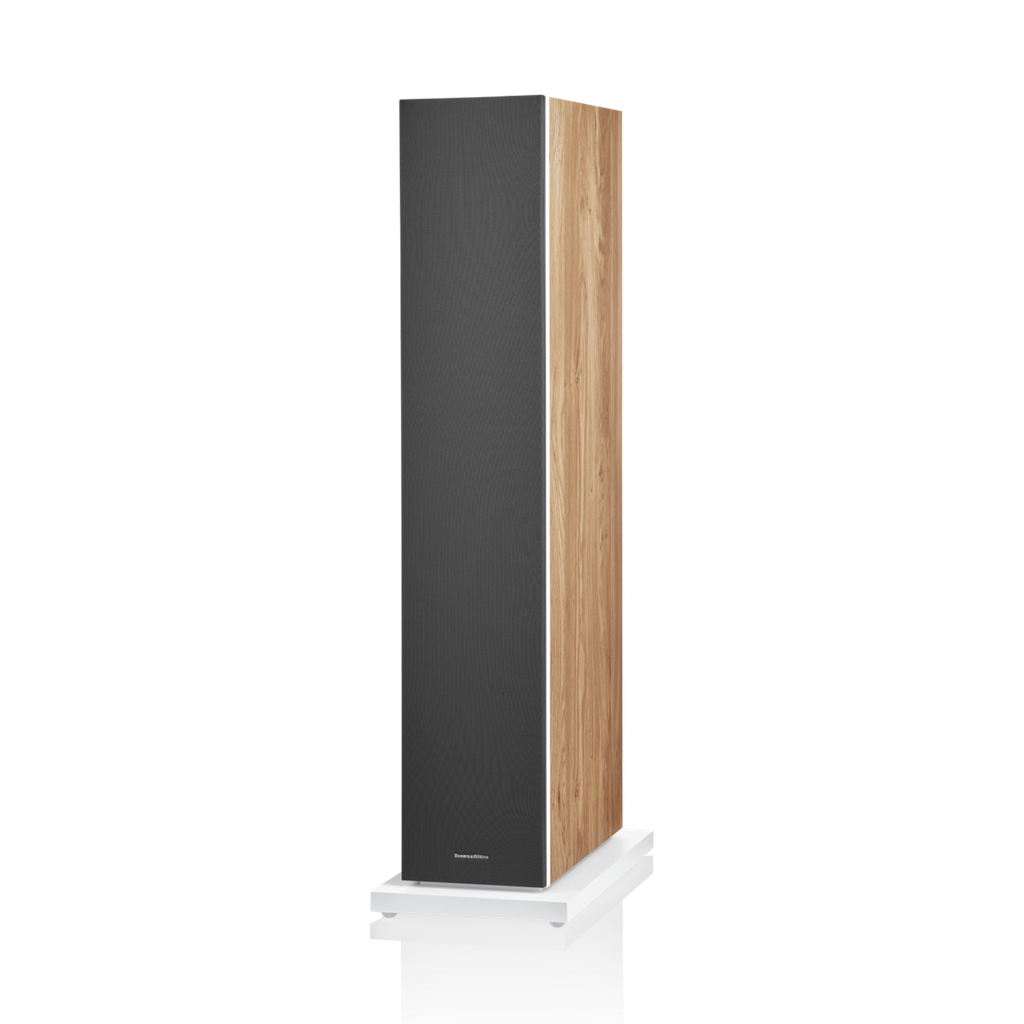

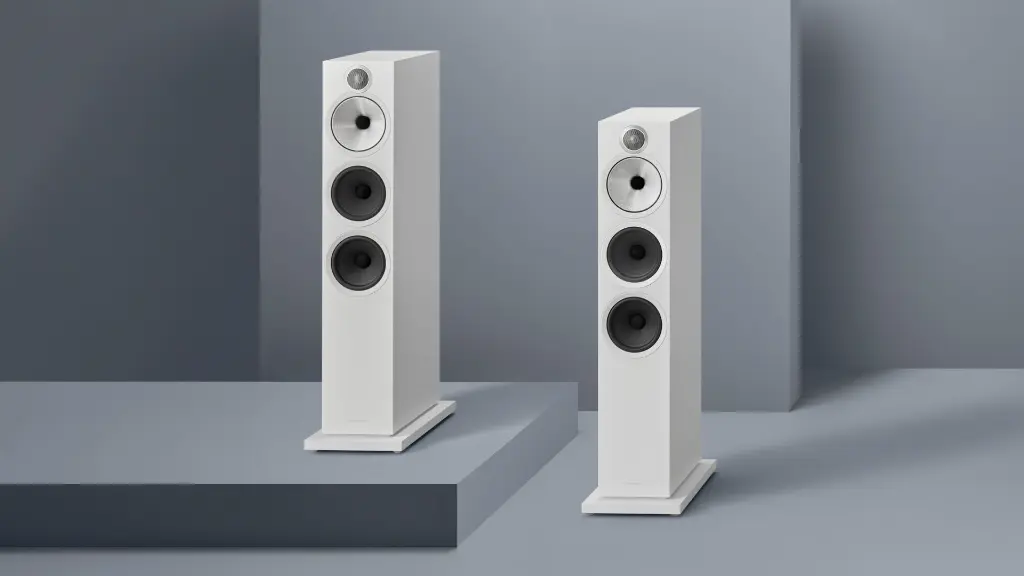

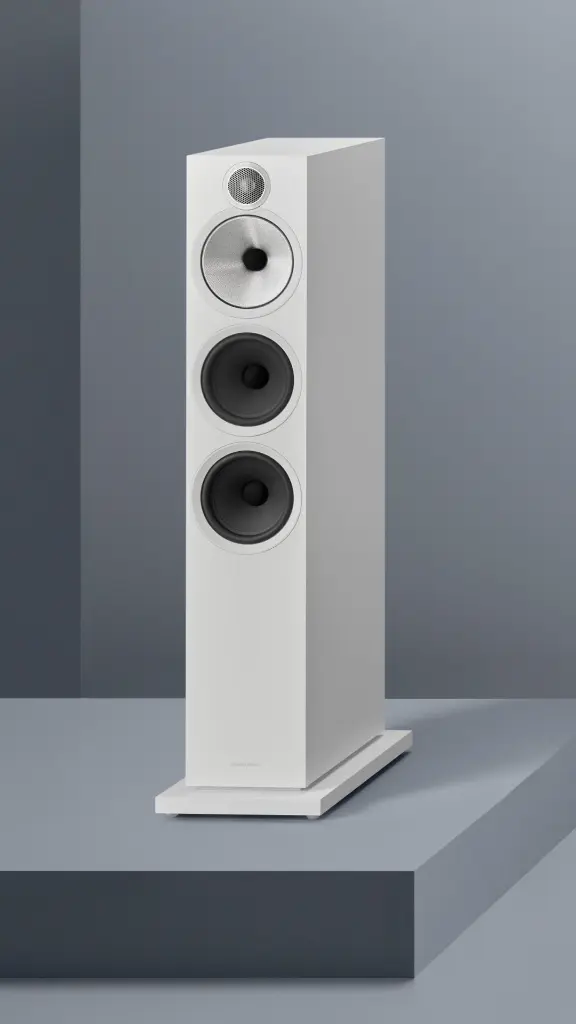

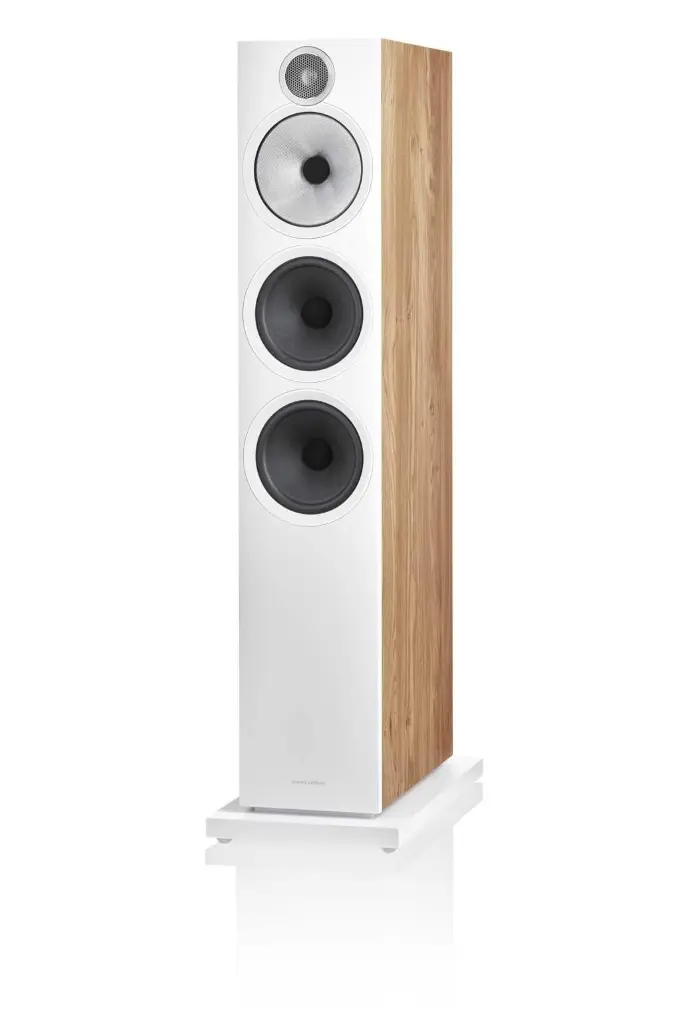

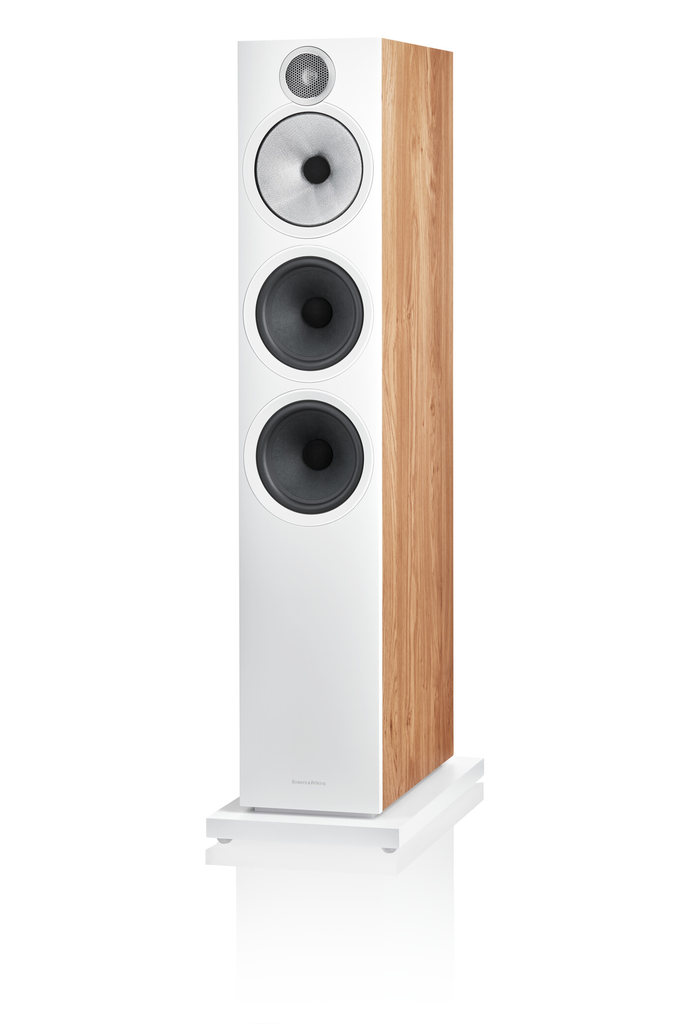

The 603 S3 is the largest loudspeaker in the 600 Series and is ideal for larger rooms and home theatres. It combines Bowers & Wilkins' new Titanium Dome tweeter with the accuracy and transparency of Bowers & Wilkins' acclaimed Continuum™ Cone FST™ midrange driver. Room-filling scale and authority come courtesy of two bass drivers, while improved terminals and enhanced drive unit positioning make 603 S3 the most sophisticated affordable floorstanding loudspeaker Bowers & Wilkins have ever made.
Continuum Cone
Thanks to its composite construction, the Continuum Cone avoids the abrupt transitions in behavior that can impair the performance of a conventional drive unit. The result is a more open, neutral performance that delivers voices and instruments with precision and transparency.
Titanium Dome Tweeter
The new 603 S3 introduces Bowers & Wilkins' all-new Titanium Dome tweeter, which combines exceptional resolution and insight with smooth, refined high-frequency reproduction. The result? An accurate and immersive insight into your favorite music.
New Tweeter Grille Mesh
The 600 Series introduces Bowers & Wilkins' new and even more acoustically transparent tweeter grille mesh, first developed for their revered Signature models. Alongside the new Titanium Dome tweeter, the result is exceptional resolution and realism.

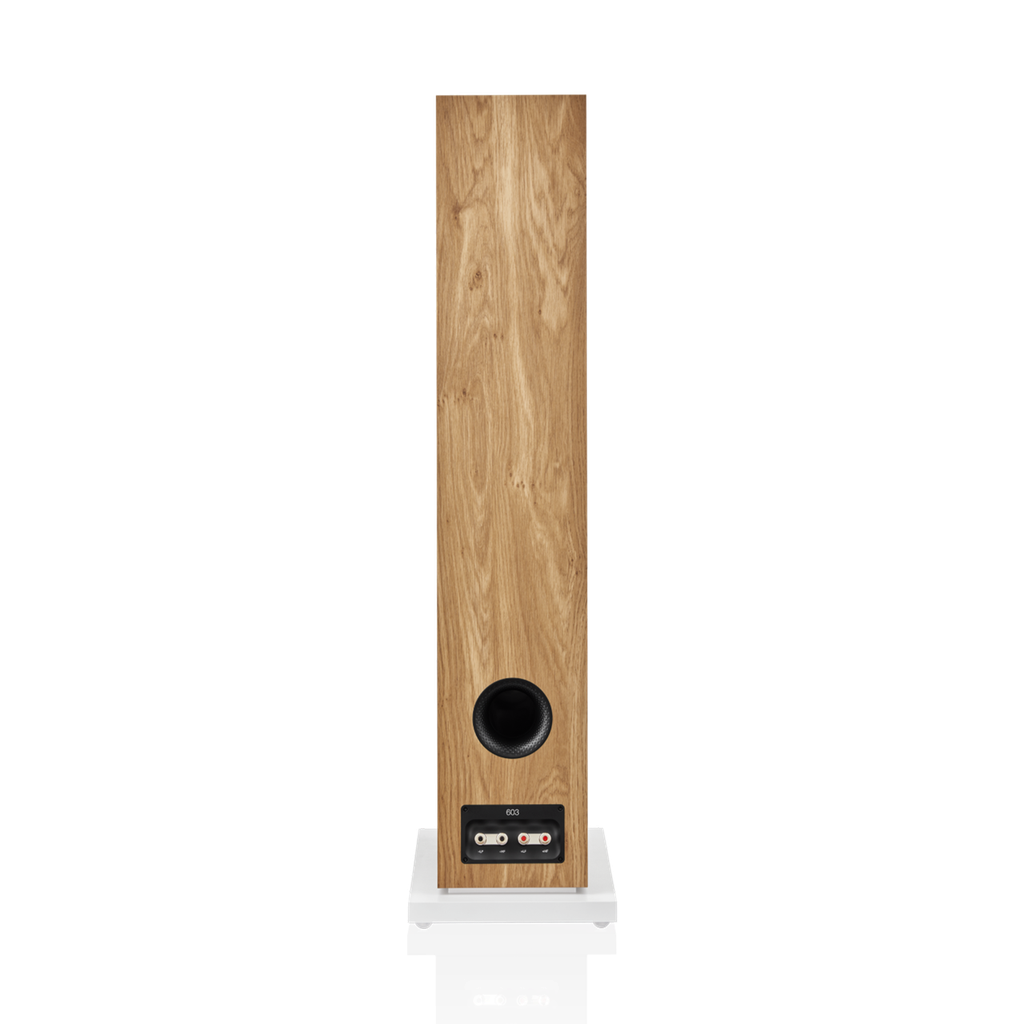

Upgraded Speaker Terminals
Derived from the speaker terminals recently introduced in the 700 Series range, the speaker terminals on the new 600 Series feature an improved layout and a cleaner signal path between your amplifier and your loudspeakers.
Technical features
Decoupled Double Dome Titanium tweeter
Continuum™ cone FST™ midrange
Paper bass cones
Flowport™
Description: 3-way vented-box system
Drive units
1x ø25mm (1 in) Titanium Dome high-frequency
1x ø150mm (6 in) Continuum cone FST midrange
2x ø165mm (6.5 in) Paper bass cone
Frequency range: -6dB 29Hz - 33kHz
Frequency response (+/-3dB from reference axis): 46Hz - 28kHz ±3dB
Sensitivity (on axis at 2.83Vrms at 1m): 90dB
Harmonic distortion 2nd and 3rd harmonics (90dB, 1m on axis)
<1% 100Hz - 22kHz
<0.5% 350Hz - 12kHz
Nominal impedance: 8Ω (minimum 3.0Ω)
Recommended amplifier power: 30W - 200W into 8Ω on unclipped program
Max. recommended cable impedance: 0.1Ω
Dimensions Cabinet Only (W x H x D) (per speaker): 7.5” x 38.8” x 13.4”
Dimensions Including Plinth (W x H x D) (per speaker): 10.2” x 40.2” x 15.8”
Weight (per speaker): 60.6 lbs
(20 603 S3 Floorstanding Speaker
Accessory Pack
Spikes
Rubber Feet
Screws/Washes
Literature Pack
Data Sheet
Installation Manual
CAD Drawings
