Marantz CINEMA 60 SERIES 2

Excellence Evolves with Performance

The Marantz CINEMA 60 SERIES 2 brings refined Marantz sound, immersive home cinema and modern connectivity together in a powerful 7.2-channel AV receiver.

Designed for dedicated home theatres and sophisticated multi-purpose living spaces, CINEMA 60 SERIES 2 features seven discrete amplifier channels rated at 100 watts per channel, Dolby Atmos and DTS:X immersive audio, HEOS® Built-in streaming, Audyssey MultEQ XT room correction and extensive connectivity for movies, music and gaming.

At the heart of Series 2 is a newly upgraded 32-bit, 8-channel DAC, designed to enhance clarity, resolution, imaging and dynamic expression across every channel.

CINEMA 60 SERIES 2 also introduces Dirac Live upgradeability, providing an additional advanced room-correction option alongside the included Audyssey MultEQ XT system.

With six HDMI inputs, including three supporting 8K/60Hz and 4K/120Hz pass-through, two HDMI outputs, eARC and advanced HDR and gaming technologies, CINEMA 60 SERIES 2 provides a capable foundation for a modern premium home cinema.

Features

*Dirac Live Room Correction requires a separately purchased compatible licence.

Performance

CINEMA 60 SERIES 2 combines decades of Marantz audio engineering with the latest generation of home cinema technology.

Seven discrete power amplifier channels deliver 100 watts per channel into 8 ohms, 20 Hz–20 kHz, 0.08% THD, with two channels driven, providing the power and control required for dynamic movie soundtracks while retaining the detailed and musical presentation associated with Marantz.

A major Series 2 upgrade is its new 32-bit, 8-channel DAC architecture. The upgraded DAC provides simultaneous high-resolution conversion across every channel, contributing to greater precision, improved imaging, enhanced dynamic expression and more coherent surround performance.

Marantz's proprietary HDAM-SA2 Hyper Dynamic Amplifier Modules, current-feedback topology and carefully selected components further contribute to detailed, spacious and natural sound reproduction.

Whether watching movies, gaming or listening to music, CINEMA 60 SERIES 2 is engineered to deliver an engaging balance of clarity, dynamics and musicality.

Immersive Cinema

CINEMA 60 SERIES 2 supports advanced immersive audio formats including Dolby Atmos and DTS:X.

Dolby Atmos allows compatible soundtracks to extend above and around the listening position when used with a suitable speaker configuration, such as a 5.1.2-channel home cinema system with dedicated height or in-ceiling speakers.

CINEMA 60 SERIES 2 also supports Dolby Atmos Height Virtualization, which can create a greater sense of height and spaciousness in compatible systems without dedicated height speakers.

For DTS content, support includes DTS:X, DTS Neural:X and DTS Virtual:X. DTS Neural:X can expand compatible conventional soundtracks across a multi-speaker system, while DTS Virtual:X provides virtualized immersive effects without requiring dedicated height speakers.

With seven powered channels, CINEMA 60 SERIES 2 provides a flexible foundation for configurations including 7.1-channel and 5.1.2-channel home cinema systems.

Precision Room Calibration

Every listening environment affects the way speakers and subwoofers perform.

CINEMA 60 SERIES 2 includes Audyssey MultEQ XT, which uses the supplied calibration microphone to analyse the acoustic characteristics of the room and optimise the system for the listening environment.

It also supports Audyssey Dynamic EQ and Audyssey Dynamic Volume, providing additional optimisation for different listening levels and content.

For owners and professional installers seeking a more advanced calibration platform, CINEMA 60 SERIES 2 is also upgradeable to Dirac Live Room Correction.

Dirac Live is an optional paid upgrade and requires a separately purchased compatible licence.

The addition of Dirac Live upgradeability is one of the important changes introduced with CINEMA 60 SERIES 2 compared with the previous-generation CINEMA 60.

Next-Generation Series 2 DAC

One of the most significant upgrades to CINEMA 60 SERIES 2 is its new 32-bit, 8-channel digital-to-analog converter.

The upgraded DAC architecture provides simultaneous high-resolution conversion across the receiver's channels, helping improve precision, imaging, dynamic expression and overall surround coherence.

Combined with Marantz's HDAM-SA2 circuitry and Sound Master tuning, the upgraded digital stage helps CINEMA 60 SERIES 2 deliver a precise and engaging listening experience across movies, music and games.

Masterful 8K HDMI Connectivity

CINEMA 60 SERIES 2 provides six rear HDMI inputs and two HDMI outputs.

Three HDMI inputs support high-bandwidth 8K/60Hz and 4K/120Hz pass-through, with bandwidth of up to 40Gbps. This makes CINEMA 60 SERIES 2 suitable for modern televisions, projectors, media players and current-generation gaming systems.

Advanced HDMI and video technologies include:

Three HDMI inputs and both HDMI outputs support the receiver's high-bandwidth 8K/60Hz and 4K/120Hz capabilities.

High-Resolution Audio Support

CINEMA 60 SERIES 2 is designed for more than home cinema and can also serve as the centre of a high-quality music system.

Through network and supported USB playback, it can reproduce high-resolution audio formats including:

Gapless playback is supported for FLAC, WAV, ALAC and DSD content.

Marantz MDAX2 compressed-audio enhancement is also available for compatible compressed music sources.

HEOS® Built-in Multi-Room Streaming

With HEOS® Built-in, CINEMA 60 SERIES 2 becomes part of a flexible whole-home audio ecosystem.

Music can be streamed from supported online services, local network libraries and compatible devices. Additional HEOS-enabled products can also be grouped together for synchronized multi-room playback.

Supported services and technologies include:

*Streaming service availability varies by country or region.

Roon Ready

CINEMA 60 SERIES 2 is Roon Ready, allowing it to work directly as a compatible playback device within a Roon music system.

Roon provides an integrated environment for browsing and managing digital music libraries and compatible streaming services, while audio can be delivered directly to the CINEMA 60 SERIES 2.

This makes the receiver well suited to installations where high-quality music playback is as important as home cinema performance.

Bluetooth, Wi-Fi and AirPlay 2

Integrated network connectivity allows CINEMA 60 SERIES 2 to connect through Ethernet or Wi-Fi, while Bluetooth provides convenient wireless playback from compatible smartphones, tablets and other devices.

AirPlay 2 allows compatible Apple devices to stream audio directly to the receiver and integrate CINEMA 60 SERIES 2 into supported Apple multi-room environments.

Bluetooth re-transmission is also supported, allowing compatible audio from the receiver to be sent to Bluetooth headphones.

Multi-Source, Multi-Room Audio

CINEMA 60 SERIES 2 supports Zone 2 audio, allowing another source or music stream to be enjoyed in a second area of the home.

Compatible network, USB, analog and supported digital audio sources can be used for multi-room listening.

Zone 2 audio can be delivered using assignable internal amplifier channels or through the dedicated Zone 2 pre-amplifier output when connecting an external stereo amplifier.

This makes CINEMA 60 SERIES 2 suitable for installations requiring both a primary home cinema and an additional audio zone.

CINEMA 60 SERIES 2 does not provide a dedicated Zone 2 HDMI output.

Phono Input for Vinyl

A dedicated MM phono input allows a compatible turntable to connect directly to CINEMA 60 SERIES 2 without requiring a separate external phono preamplifier.

This gives vinyl listeners a convenient way to integrate traditional analog playback into a modern home cinema and streaming system.

Smart TV Connectivity

Through HDMI-CEC and eARC, CINEMA 60 SERIES 2 can integrate closely with compatible televisions.

eARC allows high-quality audio from compatible smart TVs and their built-in streaming applications to be returned directly to the receiver through HDMI.

HDMI-CEC can also allow compatible television remotes to operate basic receiver functions such as power and volume, simplifying everyday use.

Marantz AVR Remote & HEOS App

CINEMA 60 SERIES 2 can be controlled from compatible smartphones and tablets using the Marantz AVR Remote app.

The app provides convenient access to receiver functions including:

The HEOS app provides dedicated control of network music streaming, supported online services and compatible HEOS multi-room products.

Convenient Smart Select Functions

Smart Select provides quick access to frequently used receiver configurations.

Preferred settings such as input source, volume level, sound mode and Audyssey configuration can be stored and recalled quickly, simplifying everyday operation for different entertainment scenarios.

Easy Setup Experience

CINEMA 60 SERIES 2 is designed to simplify the configuration of a sophisticated home cinema system.

Its Setup Assistant and modern HD graphical user interface guide users through important steps such as speaker configuration, source setup and room calibration.

The supplied Audyssey calibration microphone can then be used with Audyssey MultEQ XT to optimise the system for the listening environment.

Style

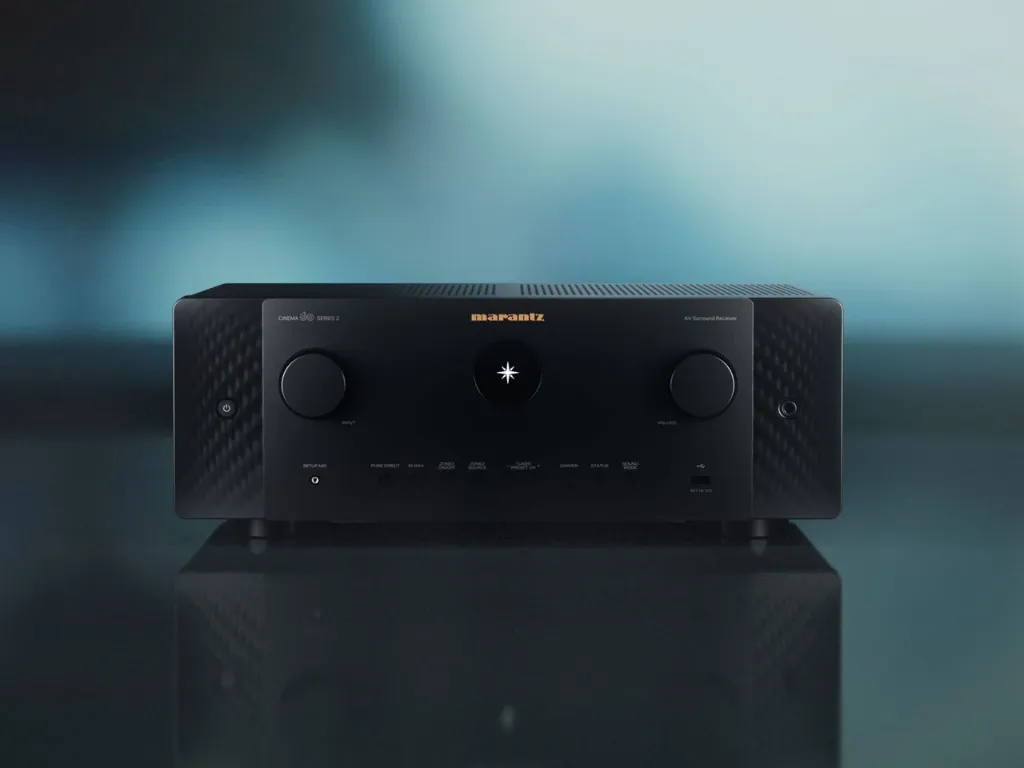

CINEMA 60 SERIES 2 continues Marantz's distinctive contemporary CINEMA Series design.

The symmetrical front panel combines a clean, understated appearance with the signature Marantz porthole OLED display, while the large input and volume controls provide straightforward everyday operation.

Designed to integrate naturally into modern living spaces and dedicated home cinemas, CINEMA 60 SERIES 2 combines premium AV performance with the timeless visual identity associated with Marantz.

Custom Installation & Control

CINEMA 60 SERIES 2 provides a range of integration options suitable for professionally installed home cinema and smart-home systems.

Control and integration capabilities include:

These connectivity options allow CINEMA 60 SERIES 2 to be incorporated into a wide variety of integrated AV and control environments.

CINEMA 60 SERIES 2 does not provide RS-232 control.

Connectivity

Alongside HDMI connectivity, CINEMA 60 SERIES 2 provides a comprehensive selection of analog, digital and network connections.

Connectivity includes:

This combination allows CINEMA 60 SERIES 2 to act as the central connection point for televisions, projectors, streaming players, game consoles, turntables, music sources and additional amplification.

Upgradeability

A premium home cinema system should be able to evolve as listening requirements change.

CINEMA 60 SERIES 2 provides 7.2-channel pre-amplifier outputs, allowing compatible external power amplifiers to be added for additional amplification capability or system flexibility.

Its Dirac Live upgradeability provides another pathway for users who want an alternative advanced room-correction system beyond the included Audyssey MultEQ XT platform.

Together with modern HDMI connectivity, HEOS streaming, Roon Ready support and its upgraded Series 2 DAC architecture, CINEMA 60 SERIES 2 provides a versatile foundation for a home cinema system that can evolve over time.
