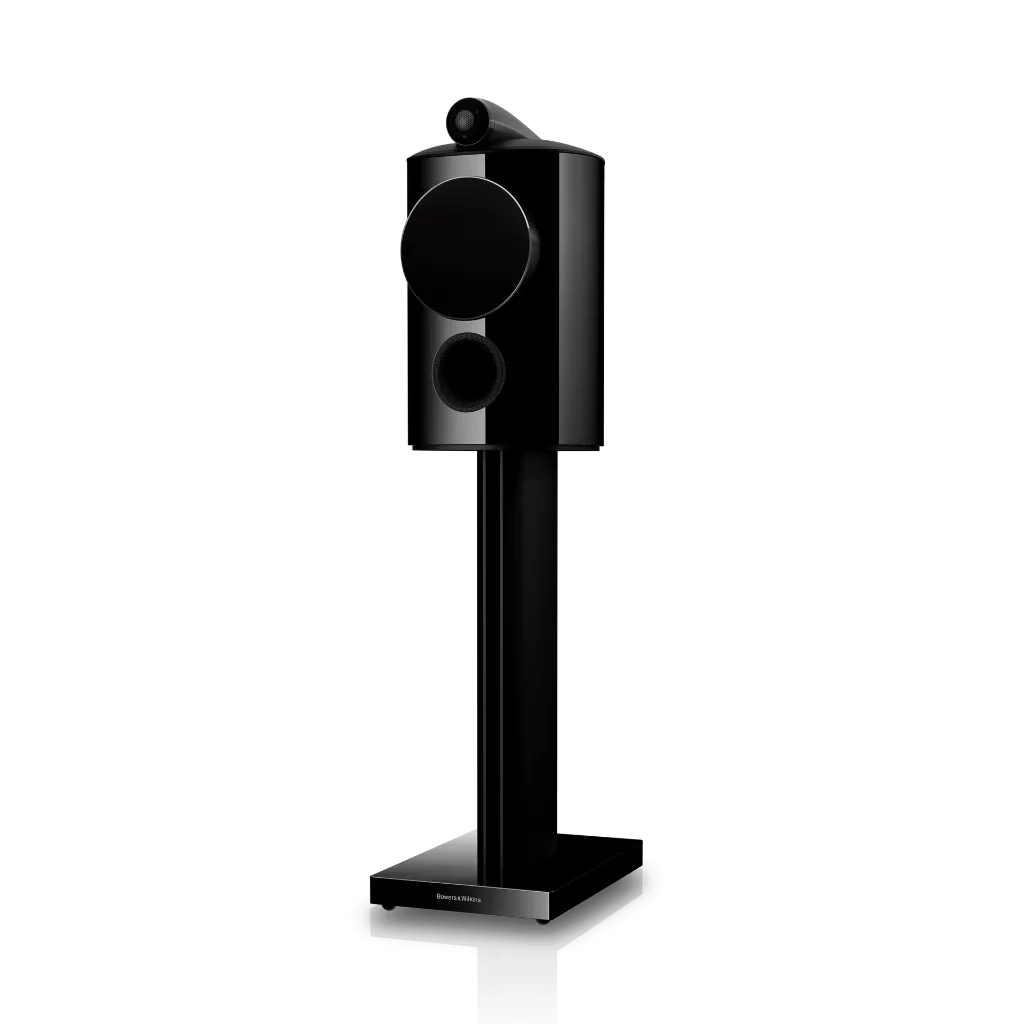

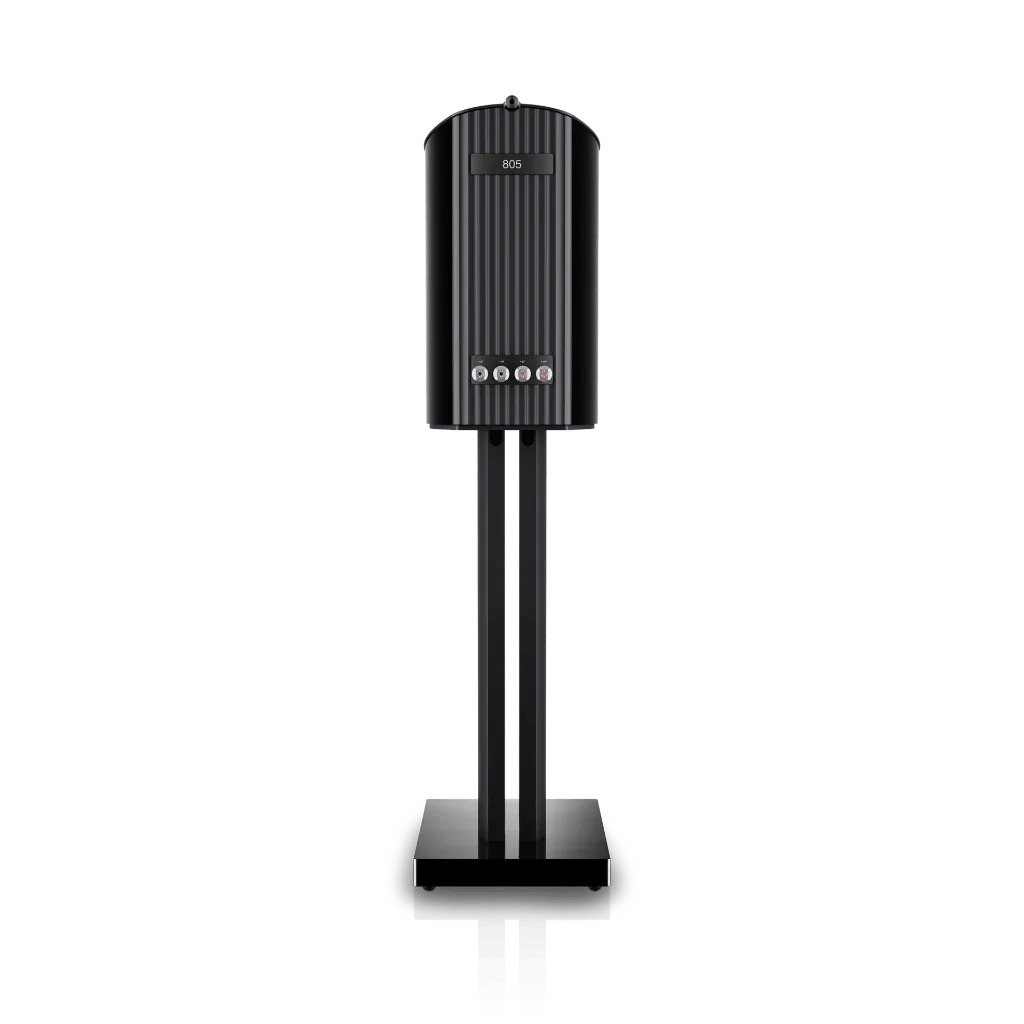

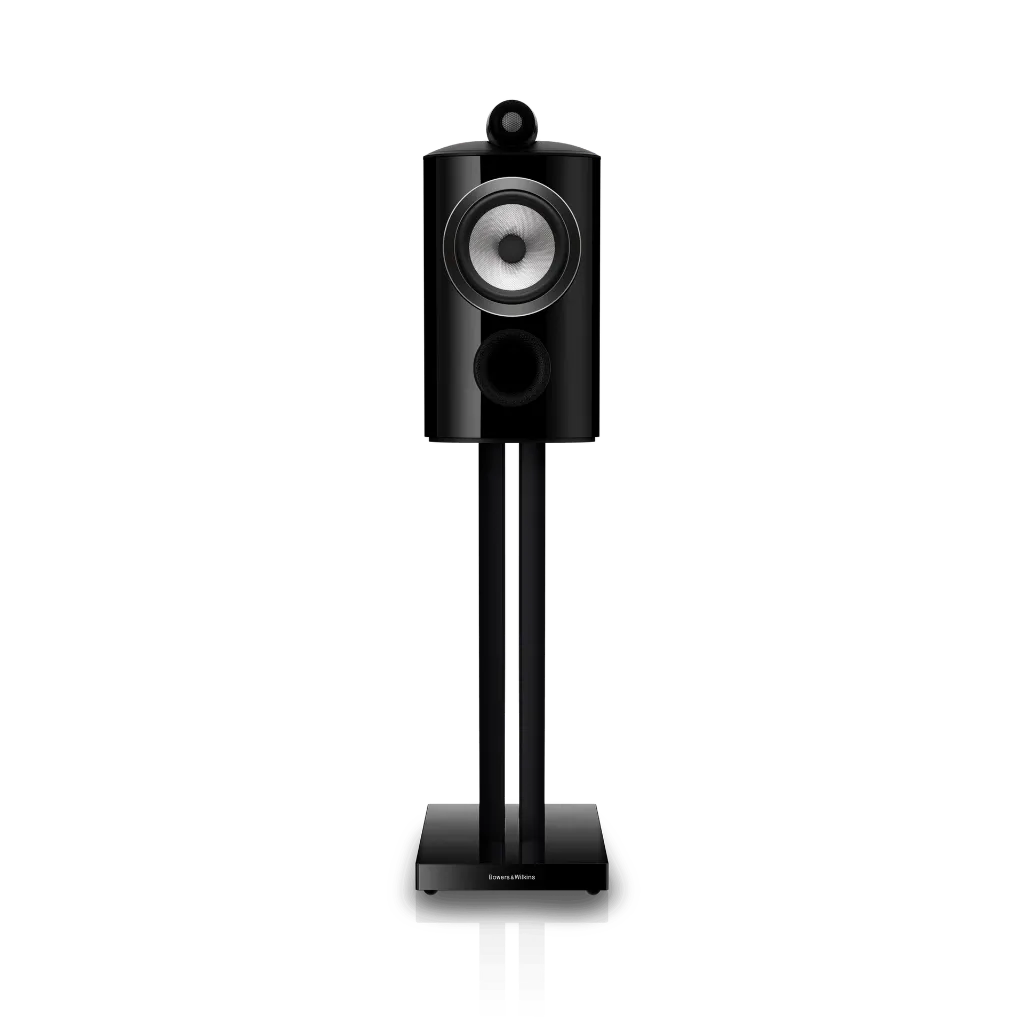

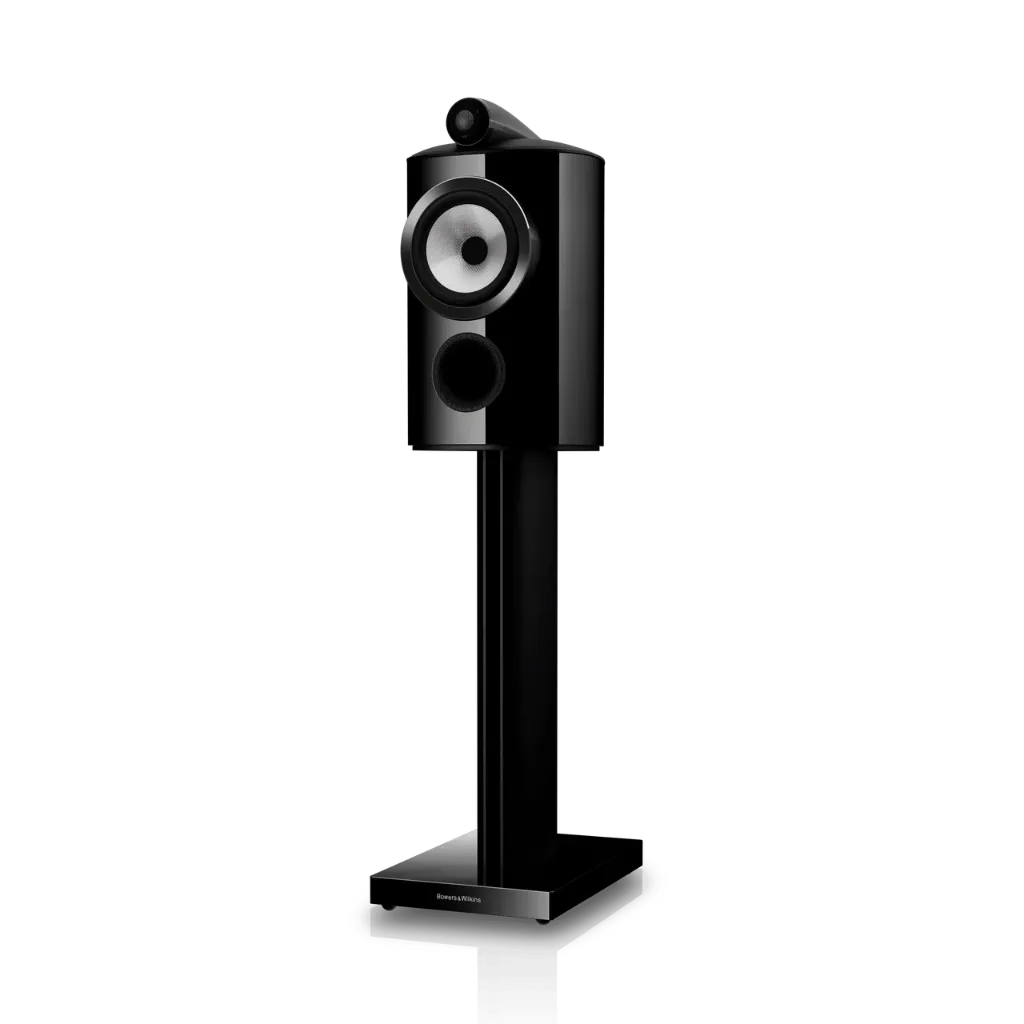

The Bowers & Wilkins 805 D5 speakers (pair) in Stealth Black are the most compact model in the 800 Series Diamond range, combining exceptional performance with a refined stand-mount design.
Featuring a Diamond dome tweeter, Continuum cone bass/midrange driver, and signature Solid Body Tweeter-on-Top, the 805 D5 delivers outstanding clarity, natural detail and precise, controlled bass.
Its enhanced Matrix bracing and rigid cabinet construction help reduce unwanted resonance, creating a clean, open and immersive soundstage. Finished in Stealth Black, the 805 D5 is ideal for premium stereo systems, dedicated listening rooms and sophisticated modern interiors.
Speaker stands sold separately.
Drive Units:
1 × 25mm (1") Diamond dome tweeter
1 × 165mm (6.5") Continuum cone bass/midrange
Frequency Range:
34Hz – 35kHz (-6dB)
Frequency Response:
42Hz – 28kHz (±3dB)
Sensitivity:
88dB (2.83V, 1m)
Impedance:
8Ω nominal (minimum 4.6Ω)
Recommended Amplifier Power:
50W – 1000W into 8Ω on unclipped programme
Design Features:
Diamond Dome Tweeter
Solid Body Tweeter-on-Top
Continuum Cone Bass/Midrange
Enhanced Matrix Bracing
Aluminium Space Frame Bracing
Reverse-wrap cabinet construction
2 × Stand-mount speakers
Protective speaker grilles
Bi-wire link cables
Adhesive rubber protective feet
Owner’s manual and installation guide
Speaker stands sold separately.
Data Sheet
Installation Manual
CAD Drawings
