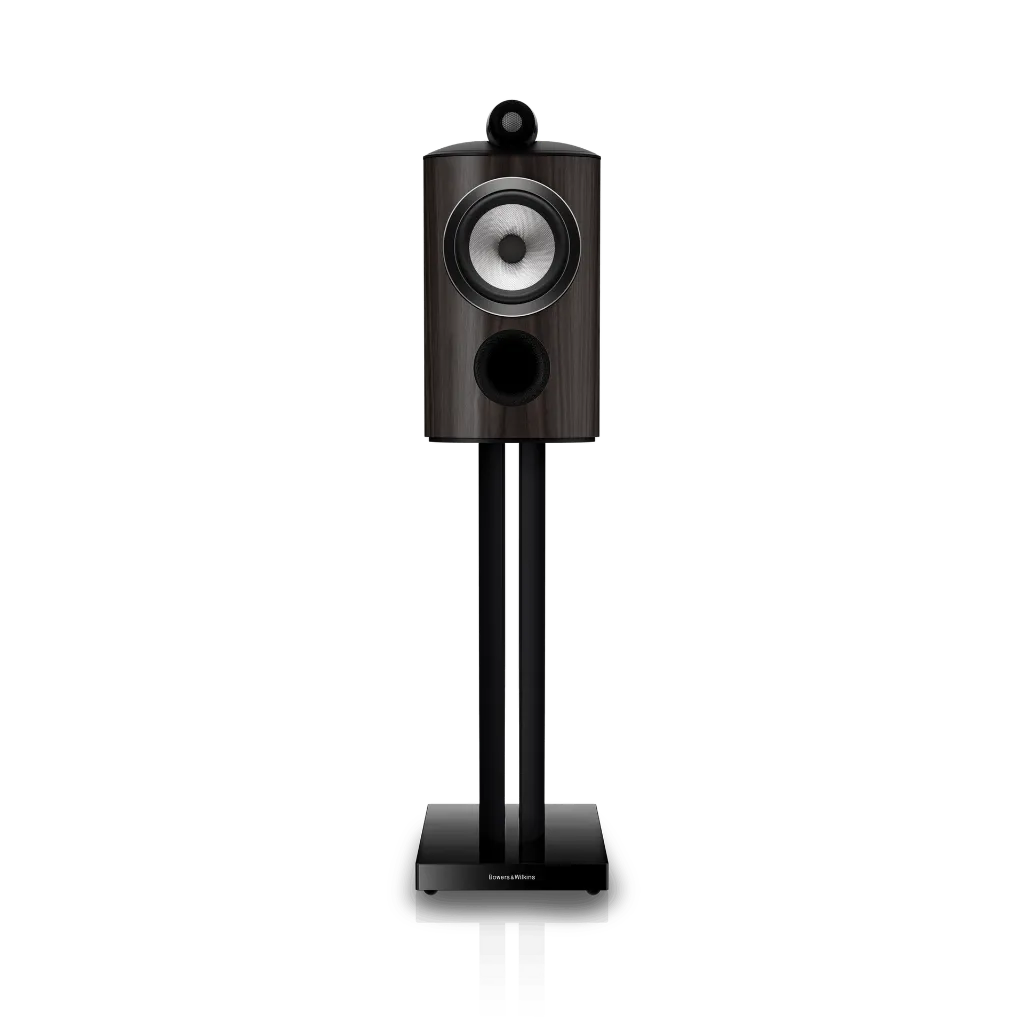

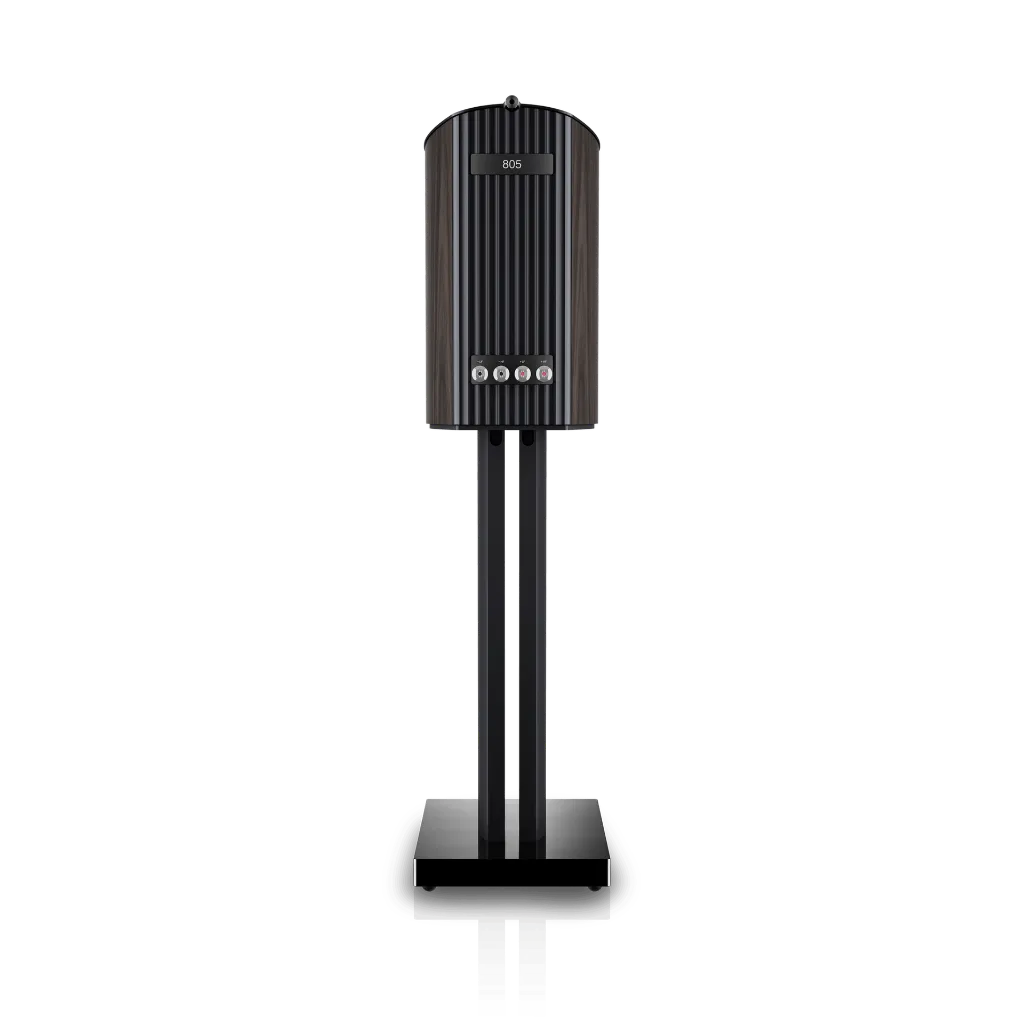

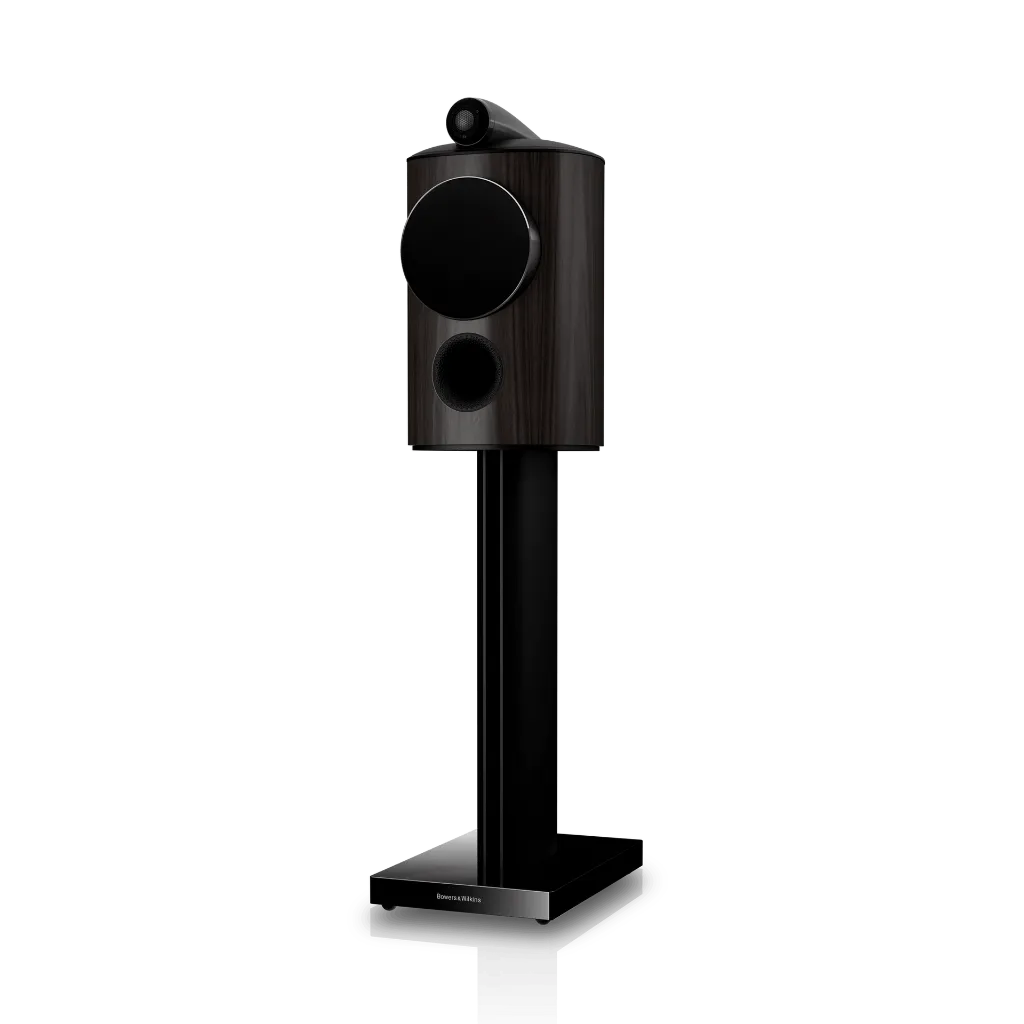

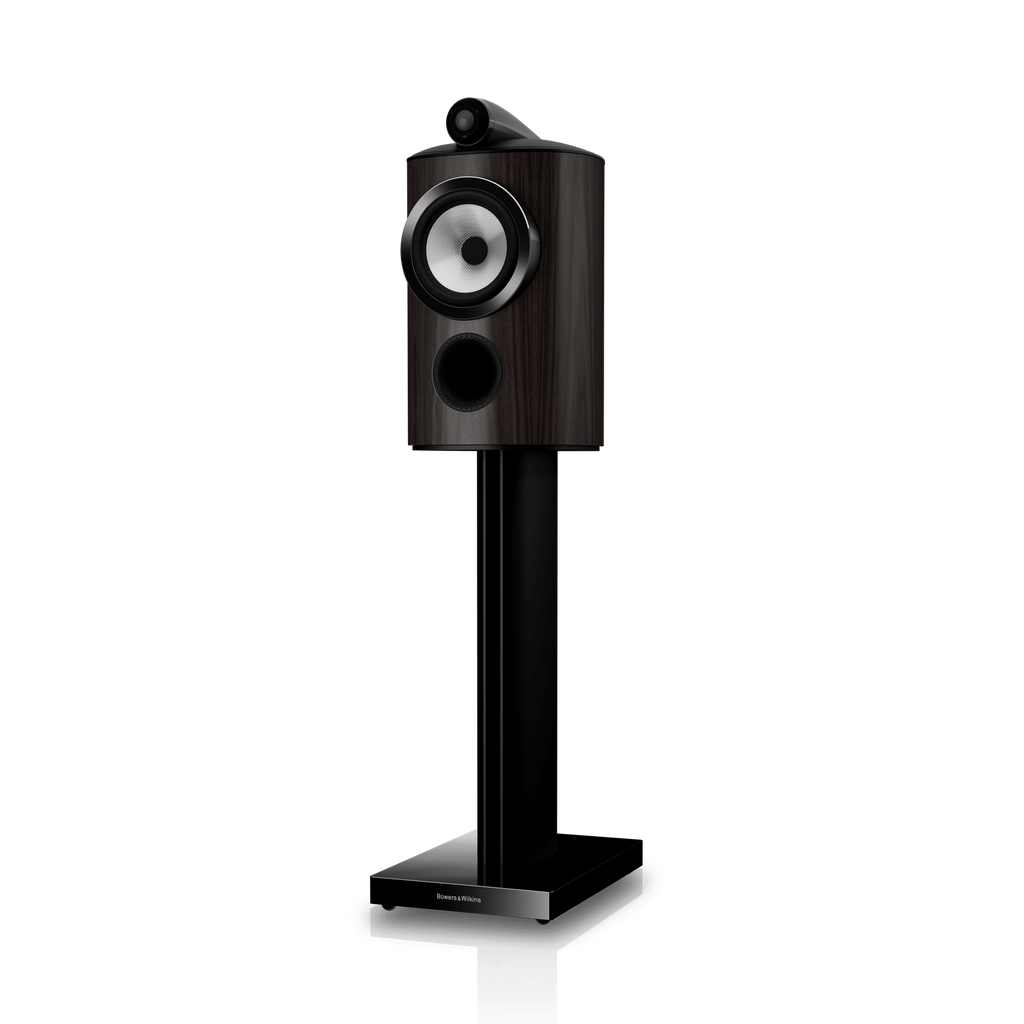

The Bowers & Wilkins 805 D5 speakers (pair) in Dark Walnut are the most compact model in the 800 Series Diamond range, combining reference-level performance with a refined stand-mount design.
Featuring a Diamond dome tweeter, Continuum cone bass/midrange driver, and the iconic Solid Body Tweeter-on-Top, the 805 D5 delivers exceptional clarity, natural detail and precise, controlled bass.
Its carefully engineered cabinet and enhanced internal bracing help reduce unwanted resonance for a cleaner, more immersive soundstage. Finished in elegant Dark Walnut, the 805 D5 is ideal for premium stereo systems, smaller listening rooms and design-led interiors.
Stand(s) sold separately.
Drive Units:
1 × 25mm (1") Diamond dome tweeter
1 × 165mm (6.5") Continuum cone bass/midrange
Frequency Range:
34Hz – 35kHz (-6dB)
Frequency Response:
42Hz – 28kHz (±3dB)
Sensitivity:
88dB (2.83V, 1m)
Impedance:
8Ω nominal (minimum 4.6Ω)
Recommended Amplifier Power:
50W – 1000W into 8Ω on unclipped programme
Design Features:
Diamond Dome Tweeter
Solid Body Tweeter-on-Top
Continuum Cone Bass/Midrange
Enhanced Matrix Bracing
Aluminium Space Frame Bracing
Reverse-wrap cabinet
2 × 805 D5 stand-mount speakers
Protective speaker grilles
Bi-wire link cables
Adhesive rubber protective feet
Owner’s manual and installation guide
Speaker stands sold separately.
Data Sheet
Installation Manual
CAD Drawings
