  2. Bowers & Wilkins 805 D4 -Pair

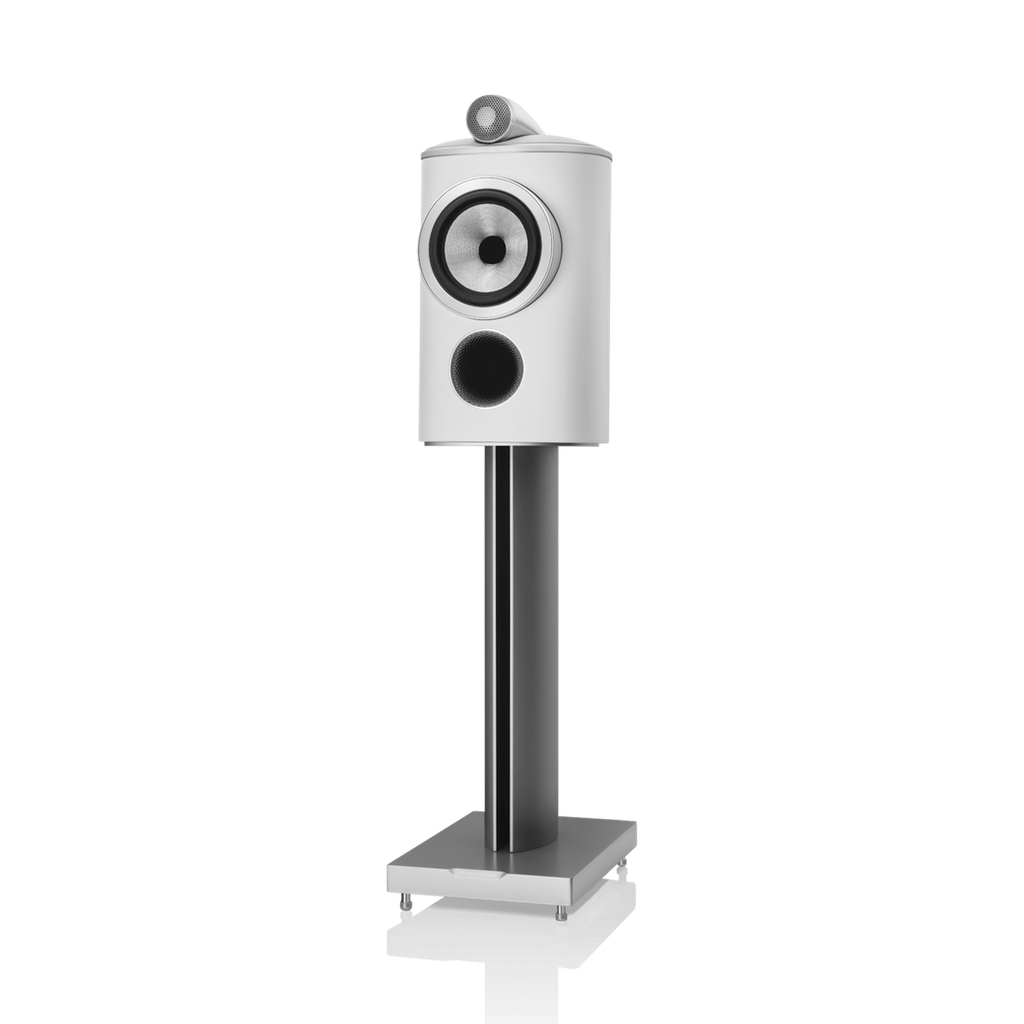

Bowers & Wilkins 805 D4 -Pair

https://www.hap.sg/web/image/product.template/2085/image_1920?unique=e519a41

*Stand(s) not included

S$ 19,499.00 19499.0 SGD S$ 19,499.00 GST Included

Ask for Quote

  • Colors

This combination does not exist.

Contact Us



Excellence. Evolved.

This is not just another speaker range. Each new generation of 800 Series Diamond is a landmark event for Bowers & Wilkins. This is their benchmark, their icon; the most advanced range of loudspeakers they know how to make. For Bowers & Wilkins, the 800 Series Diamond is everything they know, and everything they are.

The 805 D4 stand-mount loudspeaker is the most compact model in the 800 Series Diamond range, but it's still packed with advanced technologies, including that all-important Diamond dome tweeter and Solid-Body Tweeter-on-Top. It's proof positive that small can still be beautiful.

Features

  • Diamond tweeter
  • Solid-body Tweeter-on-Top
  • Continuum cone bass/mid-Matrix™
  • Anti-Resonance plug
  • Flowport™

Solid-Body Tweeter

The iconic Solid-Body Tweeter-on-Top housing features an elongated form with a longer tube-loading system, creating an even more free and open sound with high frequencies. As before, the carefully decouples housing is milled from a single solid block of aluminum to better resist resonance.

Rear-Mounted Crossover

All stereo models in the new range now use rear-mounted crossover designs mounted on stiff aluminum spines. This isolates the sensitive capacitors from the effects of air pressure within the enclosure.

    • Description: 2-way vented-box system
    • Drive Units
      • 1x 25mm (1 in) diamond dome high frequency
      • 1x 165mm (6.5 in) Continuum cone bass midrange
    • Frequency Range: 34Hz to 35kHz
    • Frequency Response (+/- 3dB from reference axis): 42Hz to 28kHz
    • Sensitivity (on axis at 2.83Vrms at 1m): 88dB
    • Harmonic Distortion
      • 2nd and 3rd harmonics (90dB, 1m on axis)
      • <1% 90Hz - 20kHz
      • <0.3% 120Hz - 20kHz
    • Nominal Impedance: 8Ω (minimum 4.6Ω)
    • Recommended Amplifier Power: 50W - 120W into 8Ω on unclipped program
    • Max. Recommended Cable Impedance: 0.1Ω
    • Dimensions (W x H x D): 9.45" x 17.32" x 14.68"
    • Weight: 34.28 lbs
  • 805 D4 2-Way Bookshelf Speaker - Each
  • Manual
*Speaker Stand Sold Separately

Data Sheet

Installation Manual

CAD Drawings
