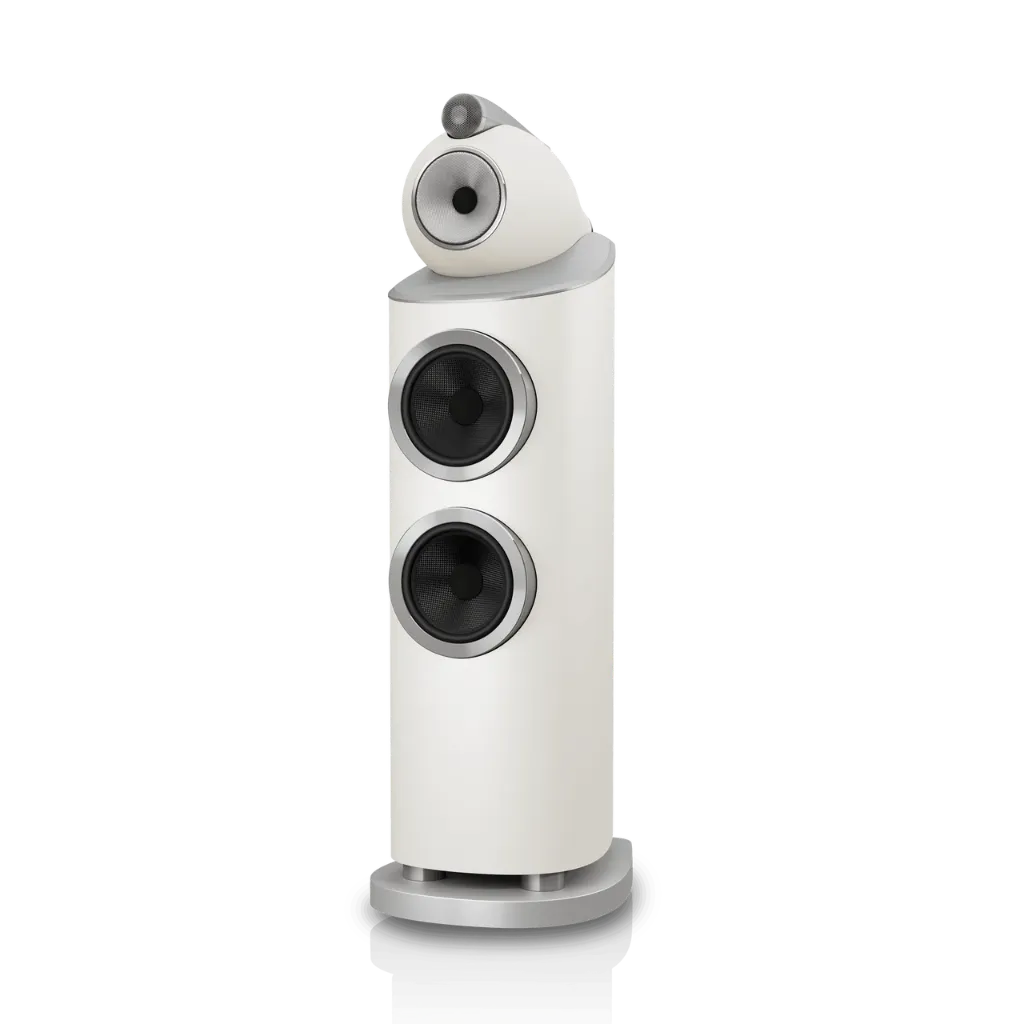

The Bowers & Wilkins 803 D5 speakers (pair) deliver exceptional reference-level performance in a more compact and elegant form than the larger 801 D5 and 802 D5. Featuring a Diamond dome tweeter, Continuum cone FST midrange, and twin Aerofoil bass drivers, the 803 D5 delivers outstanding clarity, powerful dynamics and precise, controlled bass.
As the most compact 800 Series D5 floorstanding model to feature the distinctive Turbine Head, the 803 D5 isolates the midrange driver from the main bass enclosure for cleaner, more natural vocals and greater detail. Enhanced Matrix bracing and refined cabinet engineering further reduce unwanted resonance, creating a wide and immersive soundstage ideal for premium stereo listening and high-end home cinema systems.
Drive Units:
1 × 25mm (1") Diamond dome tweeter
1 × 130mm (5") Continuum cone FST midrange
2 × 180mm (7") Aerofoil bass drivers
Frequency Range:
16Hz – 35kHz (-6dB)
Frequency Response:
19Hz – 28kHz (±3dB)
Sensitivity:
90dB (2.83V, 1m)
Impedance:
8Ω nominal (minimum 3.0Ω)
Recommended Amplifier Power:
50W – 1000W into 8Ω
Design Features:
Diamond Dome Tweeter
Solid Body Tweeter-on-Top
Turbine Head
Continuum Cone FST Midrange
Anti-Resonance Plug
Biomimetic Suspension
Enhanced Matrix Bracing
Aluminium Space Frame Bracing
Aerofoil Bass Cones
Flowport
Reverse-wrap cabinet design
2 × 803 D5 floorstanding speakers
Midrange and bass grilles
Heavy-duty floor spikes and protective feet
Bi-wire link cables
Setup and adjustment tool kit
Cleaning cloth
Owner’s manual and setup documentation
Data Sheet
Installation Manual
CAD Drawings
