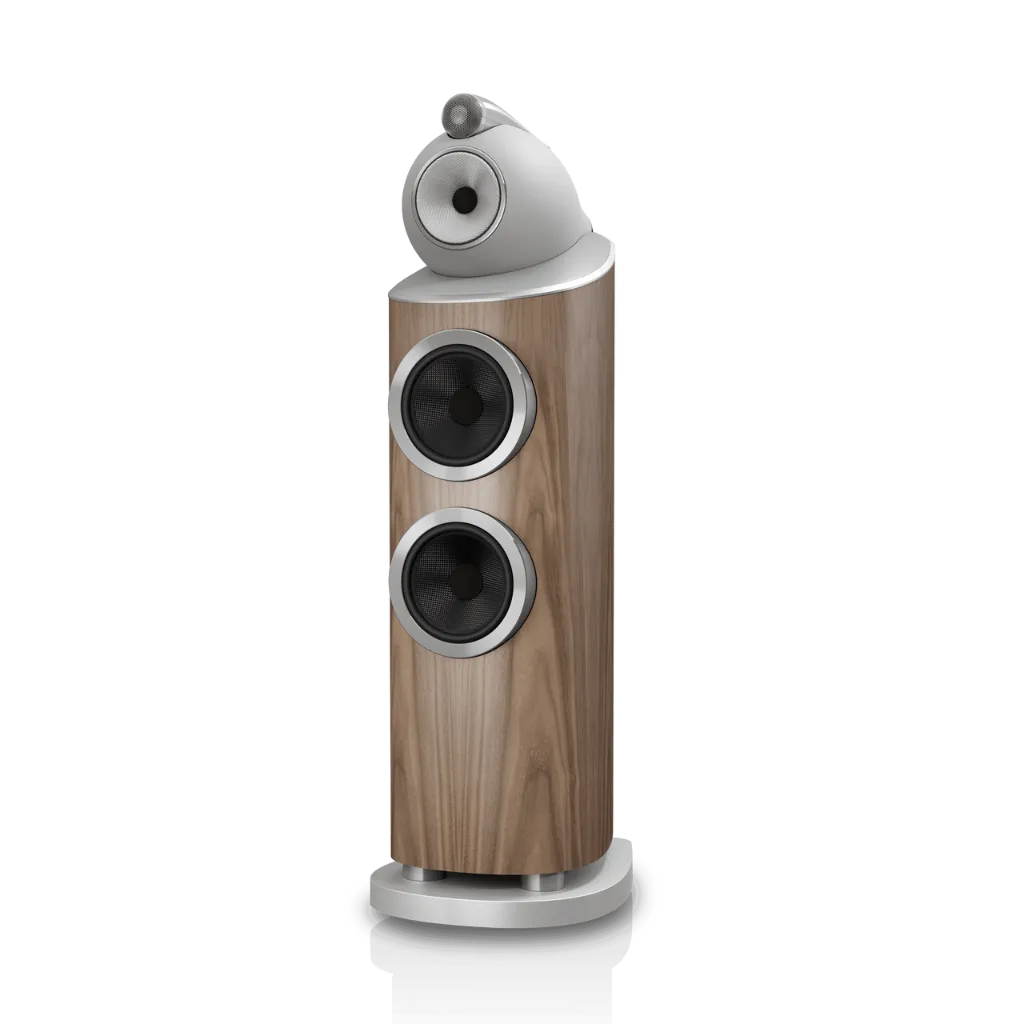

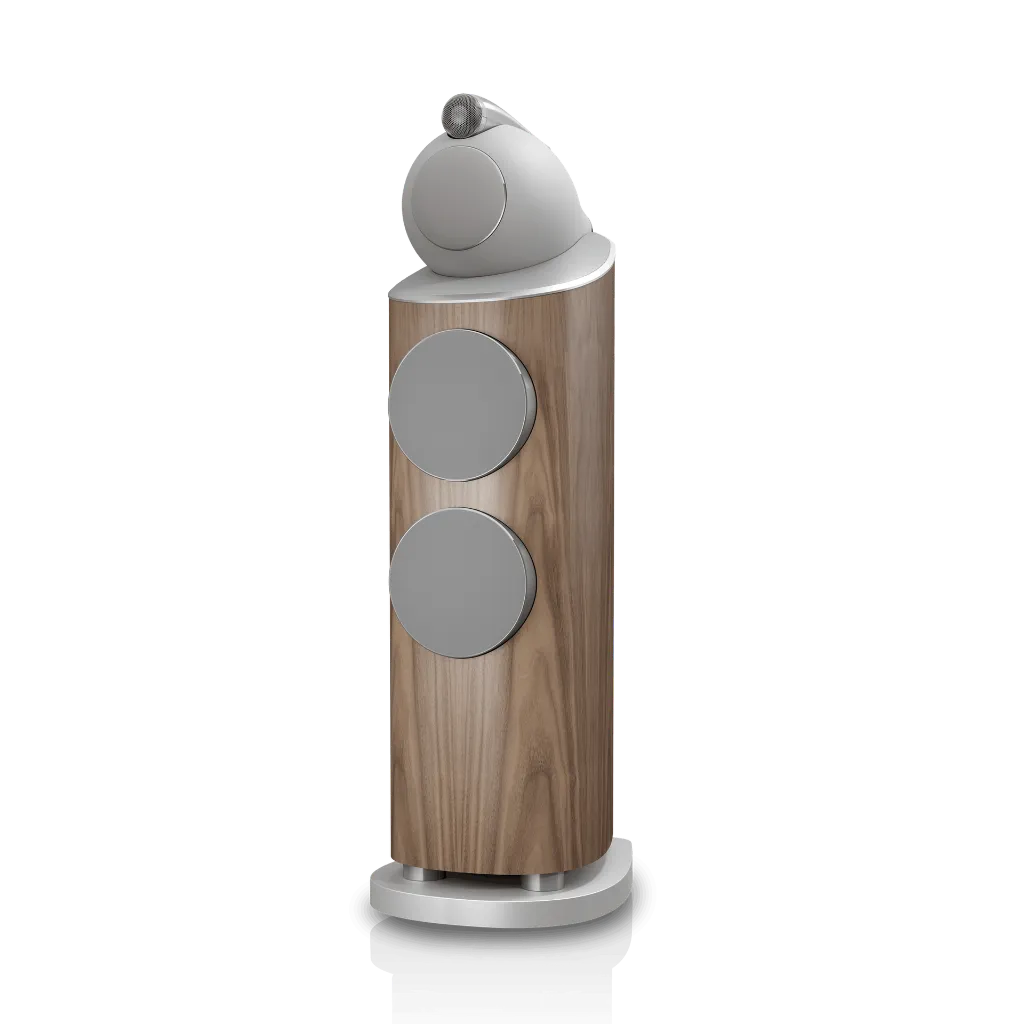

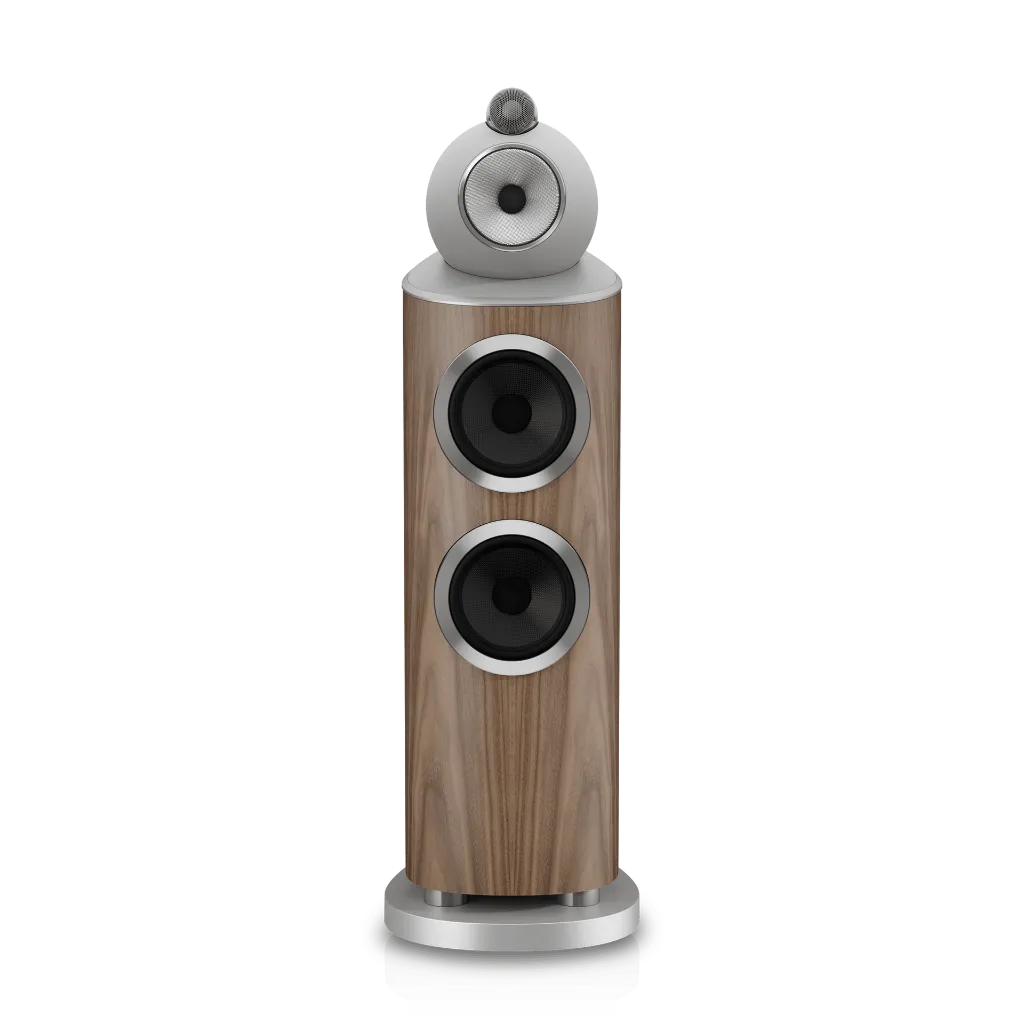

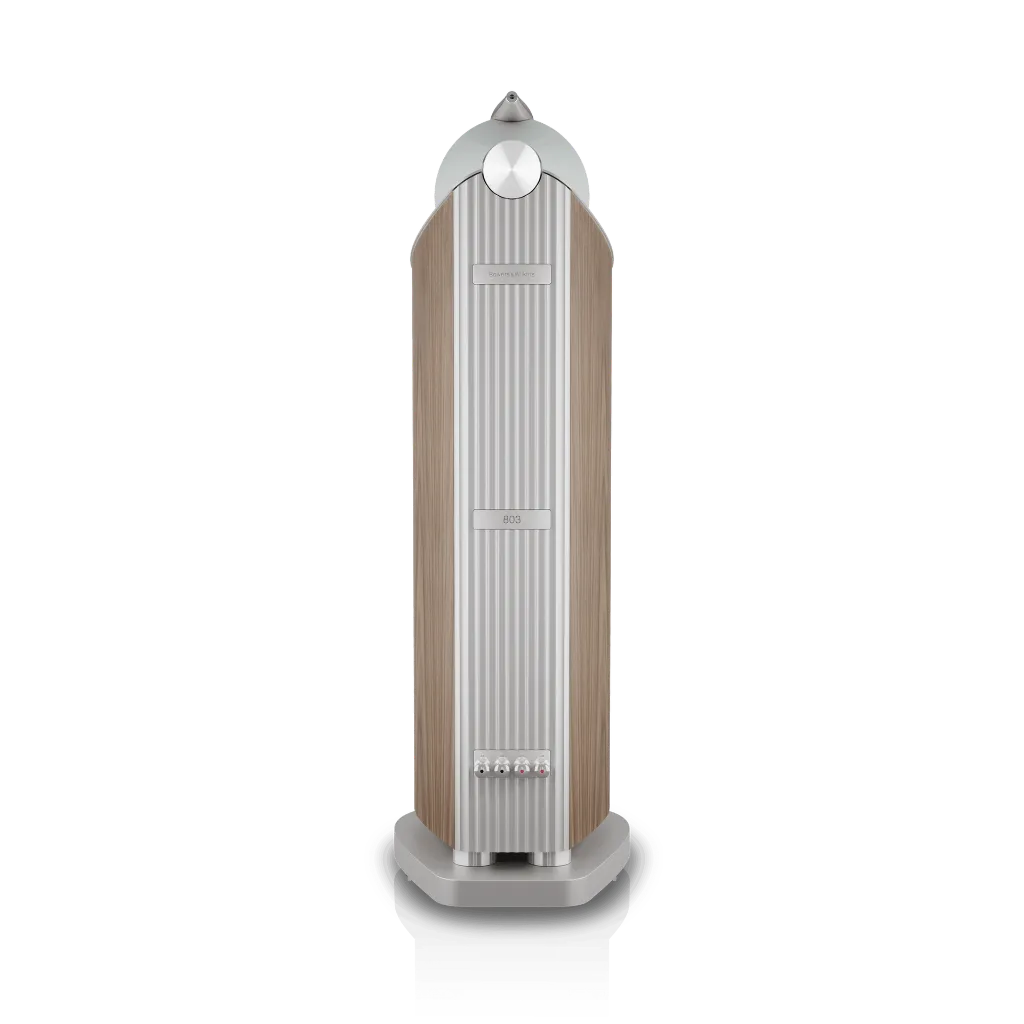

The Bowers & Wilkins 803 D5 speakers (pair) deliver reference-level performance in a more compact and elegant form than the larger 801 D5 and 802 D5. Featuring a Diamond dome tweeter, Continuum cone FST midrange, and twin Aerofoil bass drivers, the 803 D5 delivers exceptional clarity, powerful dynamics and precise, controlled bass.
As the most compact floorstanding model in the 800 Series D5 range to feature the distinctive Turbine Head, the 803 D5 isolates the midrange driver from the main bass enclosure for cleaner, more natural vocals and greater detail. Upgraded Matrix bracing and aluminium Space Frame construction further reduce unwanted cabinet resonance, creating an open and immersive soundstage ideal for high-end stereo listening and premium home cinema systems.
Drive Units:
1 × 25mm (1") Diamond dome tweeter
1 × 130mm (5") Continuum cone FST midrange
2 × 180mm (7") Aerofoil bass drivers
Frequency Response:
19Hz – 28kHz (±3dB)
Frequency Range:
16Hz – 35kHz (-6dB)
Sensitivity:
90dB (2.83V, 1m)
Impedance:
8Ω nominal (minimum 3.0Ω)
Recommended Amplifier Power:
50W – 1000W into 8Ω
Design Features:
Diamond Dome Tweeter
Solid Body Tweeter-on-Top
Turbine Head
Continuum Cone FST Midrange
Anti-Resonance Plug
Biomimetic Suspension
Matrix Bracing
Aerofoil Bass Cones
Flowport
Reverse-wrap cabinet design
2 × Floorstanding speakers (left & right)
Midrange and bass grilles
Stabiliser feet and floor spikes
Floor protection cups
Terminal link wires
Setup and adjustment tools
Cleaning cloth
Data Sheet
Installation Manual
CAD Drawings
