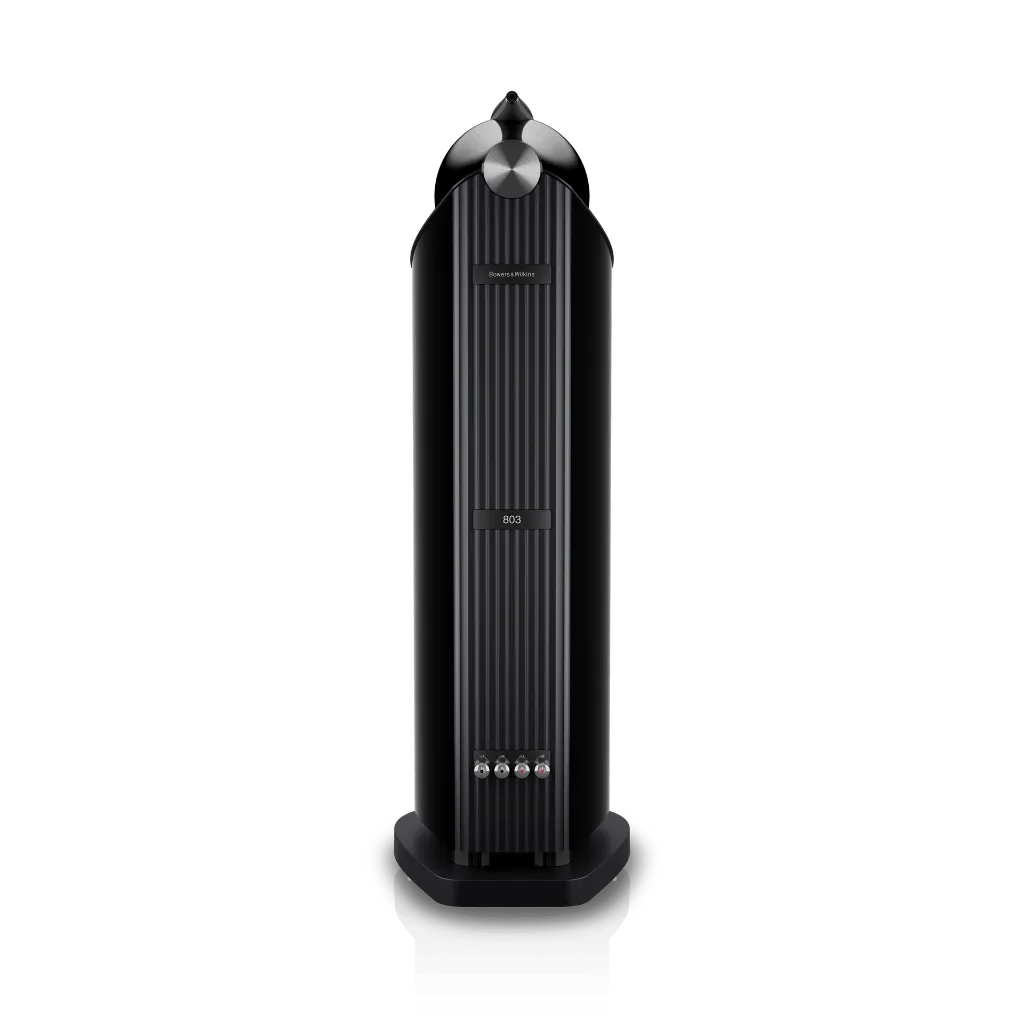

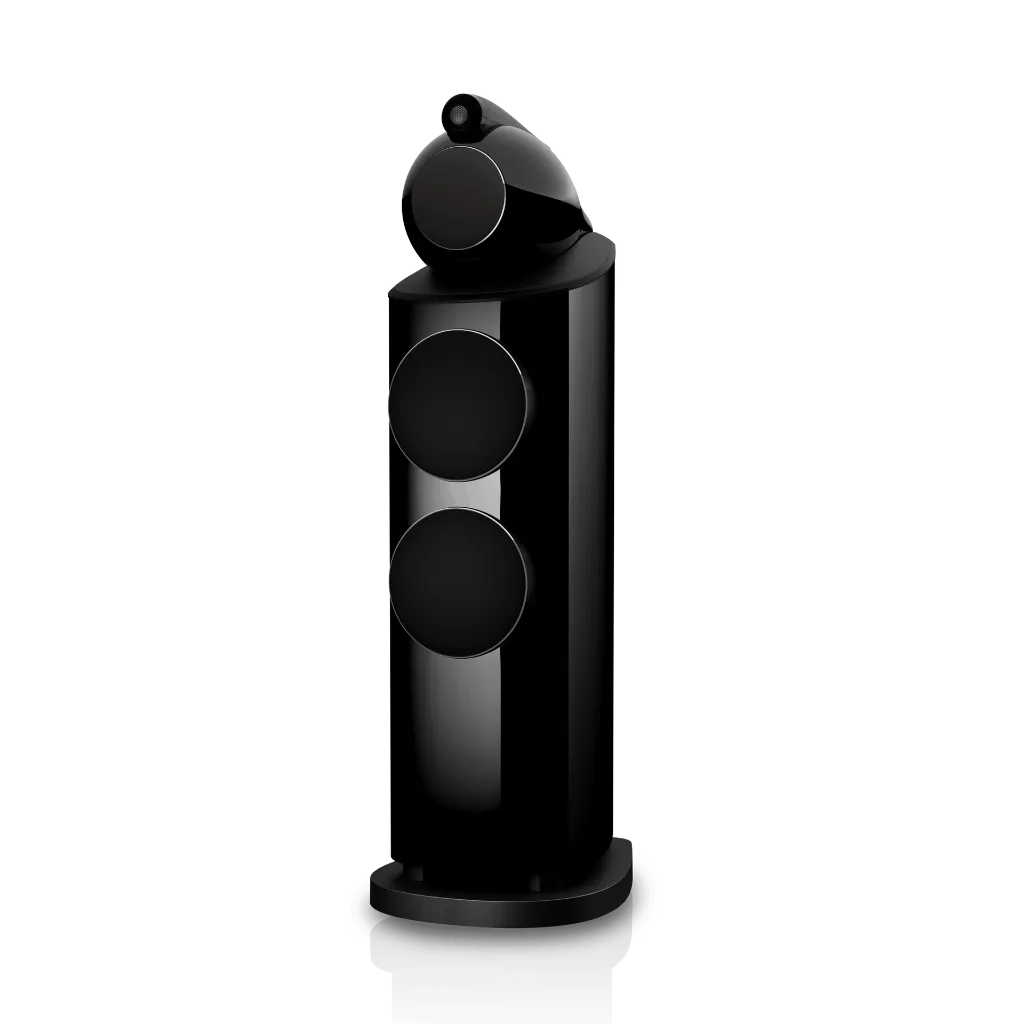

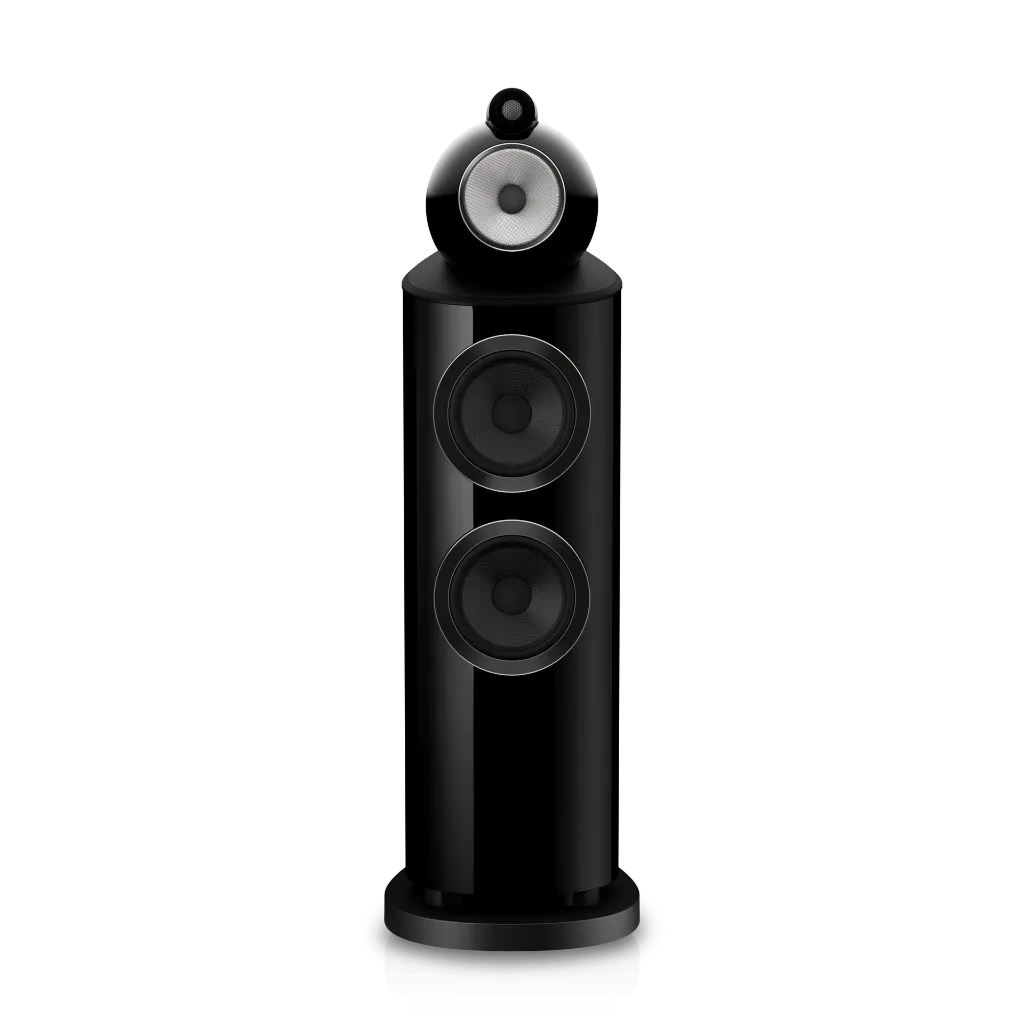

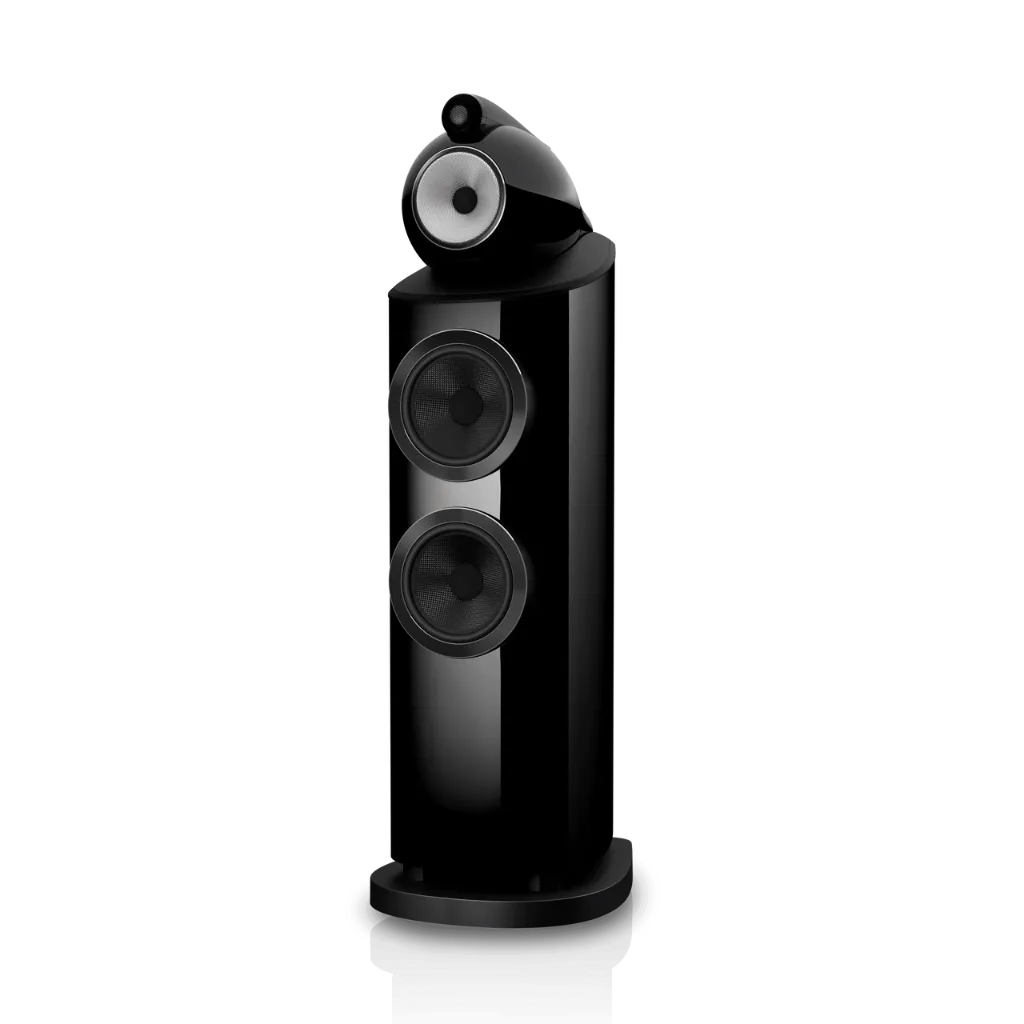

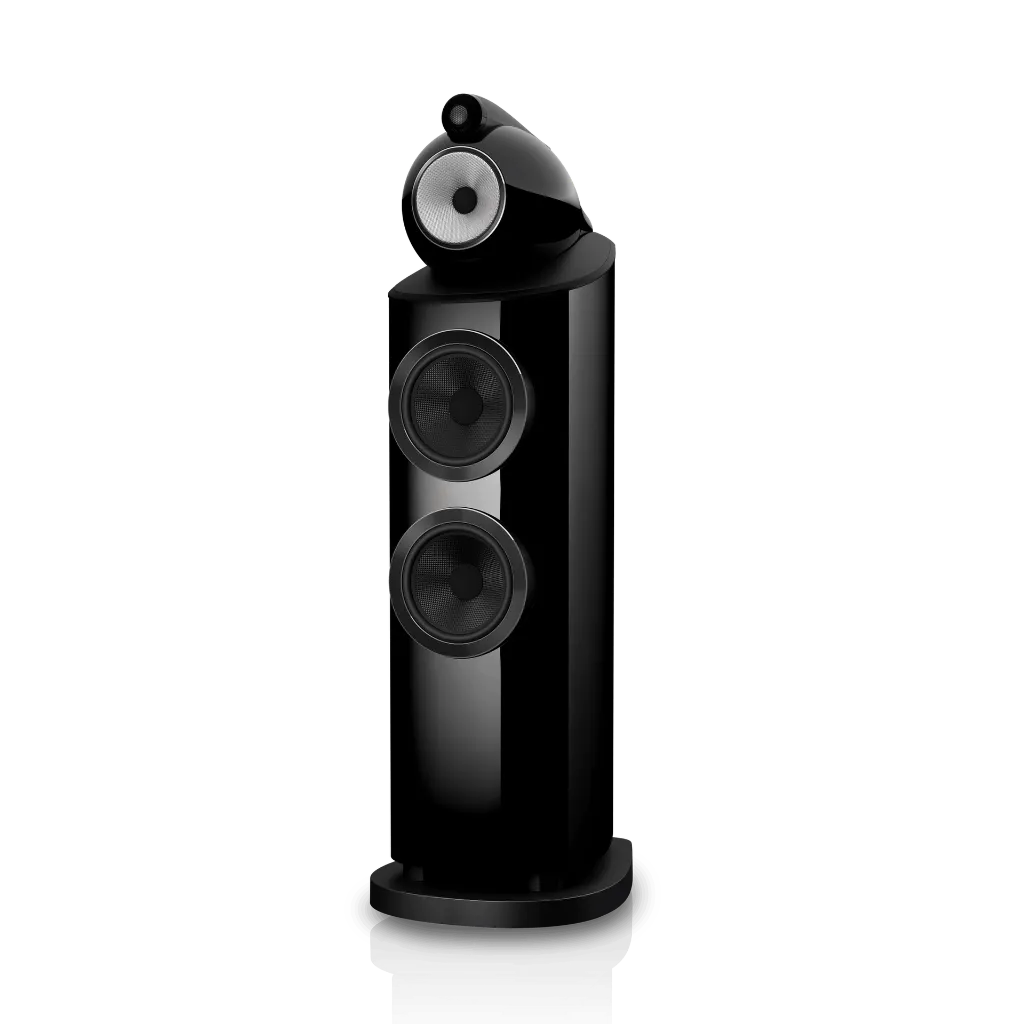

The Bowers & Wilkins 803 D5 speakers (pair) deliver reference-level performance in a more compact and elegant design than the larger models in the 800 Series Diamond range. Featuring a Diamond dome tweeter, Continuum cone FST midrange, and twin Aerofoil bass drivers, the 803 D5 delivers exceptional clarity, powerful dynamics and precise, controlled bass.
Its dedicated Turbine Head isolates the midrange driver from the main bass enclosure, helping vocals and instruments sound cleaner and more natural. Enhanced Matrix bracing and refined cabinet engineering further reduce unwanted resonance, creating an open, detailed and immersive soundstage ideal for high-end stereo listening and premium home cinema systems.
Drive Units:
1 × 25mm (1") Diamond dome tweeter
1 × 130mm (5") Continuum cone FST midrange
2 × 180mm (7") Aerofoil bass drivers
Frequency Response:
19Hz – 28kHz (±3dB)
Frequency Range:
16Hz – 35kHz (-6dB)
Sensitivity:
90dB (2.83V, 1m)
Impedance:
8Ω nominal (minimum 3.0Ω)
Recommended Amplifier Power:
50W – 1000W into 8Ω
Design Features:
Diamond Dome Tweeter
Solid Body Tweeter-on-Top
Turbine Head
Continuum Cone FST Midrange
Anti-Resonance Plug
Biomimetic Suspension
Matrix Bracing
Aerofoil Bass Cones
Flowport
Reverse-wrap cabinet design
2 × Floorstanding speakers
Midrange and bass grilles
Heavy-duty floor spikes and protective feet
Floor protection cups
Bi-wire link cables
Setup and adjustment tools
Microfibre cleaning cloth
Owner’s manual and setup documentation
Data Sheet
Installation Manual
CAD Drawings
