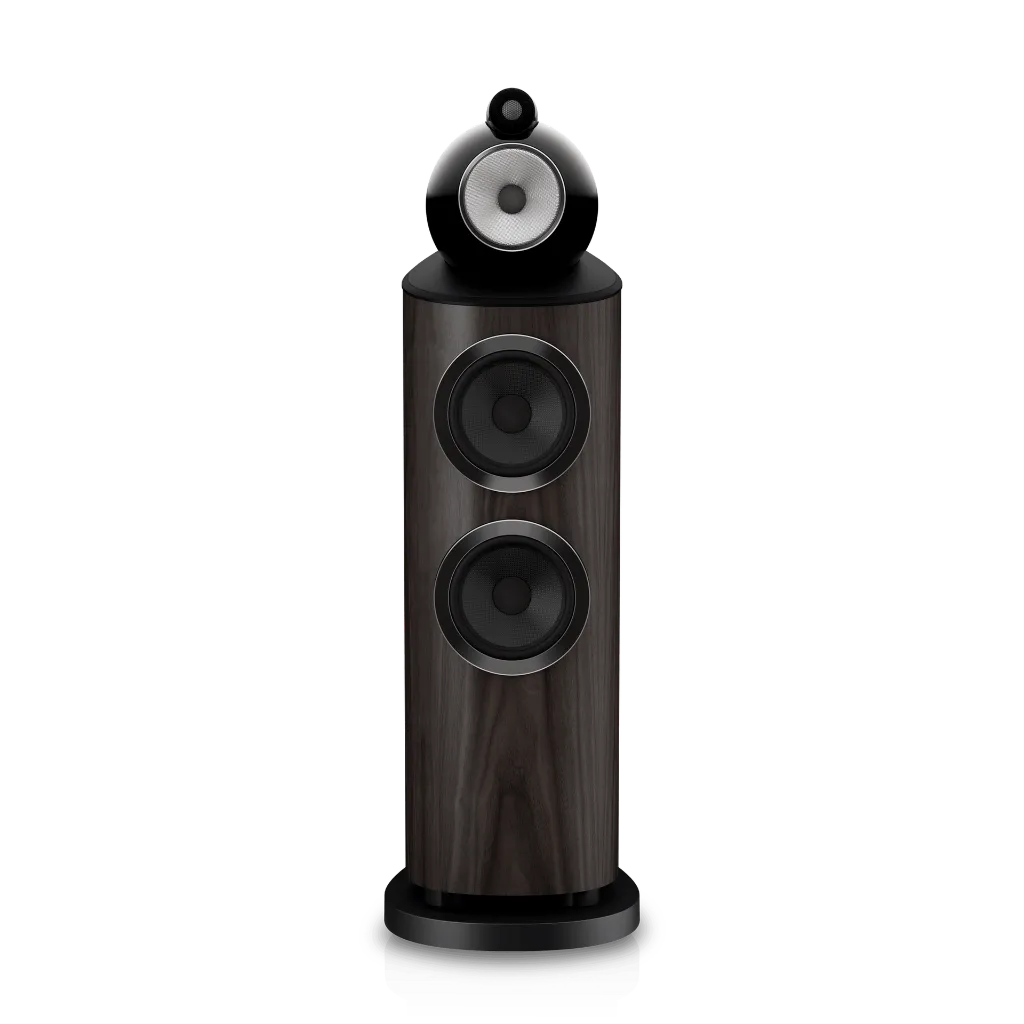

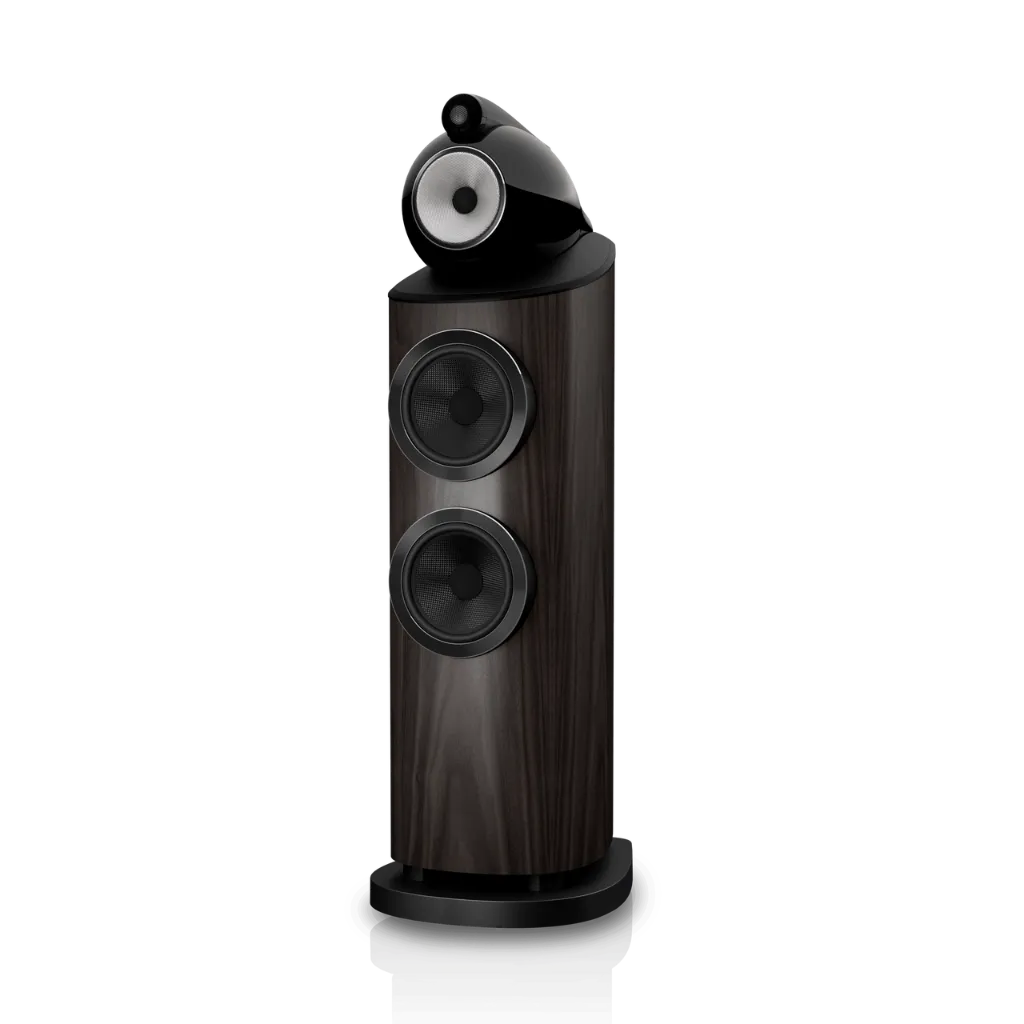

The Bowers & Wilkins 803 D5 speakers (pair) deliver reference-level performance in a more compact design than the larger 801 D5 and 802 D5. Featuring a Diamond dome tweeter, Continuum cone FST midrange, and twin Aerofoil bass drivers, the 803 D5 delivers exceptional clarity, powerful dynamics and controlled low-frequency performance.
As the most compact 800 Series D5 floorstanding model to feature Bowers & Wilkins’ distinctive Turbine Head, the 803 D5 isolates the midrange driver from the main bass enclosure for cleaner, more natural vocals and greater detail. Its upgraded Matrix bracing and aluminium Space Frame construction further reduce unwanted cabinet resonance, creating a precise and immersive soundstage for high-end stereo listening and premium home cinema systems.
Drive Units:
1 × 25mm (1") Diamond dome tweeter
1 × 130mm (5") Continuum cone FST midrange
2 × 180mm (7") Aerofoil bass drivers
Frequency Response:
19Hz – 28kHz (±3dB)
Frequency Range:
16Hz – 35kHz (-6dB)
Sensitivity:
90dB (2.83V, 1m)
Impedance:
8Ω nominal (minimum 3.0Ω)
Recommended Amplifier Power:
50W – 1000W into 8Ω
Design Features:
Diamond Dome Tweeter
Solid Body Tweeter-on-Top
Turbine Head
Continuum Cone FST Midrange
Anti-Resonance Plug
Biomimetic Suspension
Matrix Bracing
Aluminium Space Frame Bracing
Aerofoil Bass Cones
Flowport
Reverse-wrap cabinet design
2 × Floorstanding speakers (left & right)
Midrange and bass grilles
Bi-wire link cables
Heavy-duty floor spikes and protective feet
Setup and adjustment tools
Cleaning cloth
Owner’s manual and setup documentation
Data Sheet
Installation Manual
CAD Drawings
