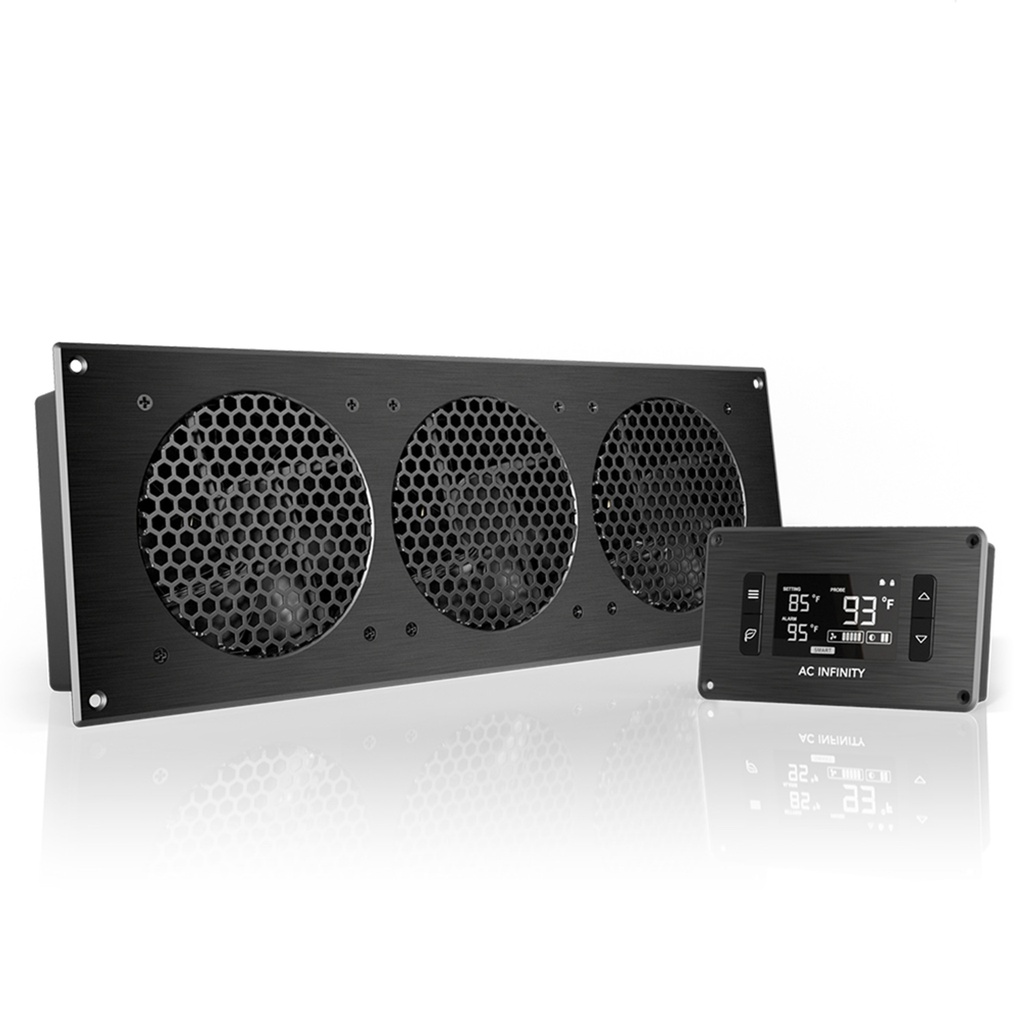

AC Infinity AIRPLATE T9 Black Cooling Fan System 18", AI-APT9

      • An ultra-quiet UL-certified fan system designed for cooling cabinets that requires minimal noise.
      • Automated programming that self-adjusts cooling power in response to changing temperatures.
      • Features a LCD display with an alarm system, display lock, six fan speeds, two buffer options, and memory.
      • Fan and controller contain CNC machined aluminum frames with a modern brushed black finish.
      • Dimensions: 17.28 x 6.3 x 1.3 in | Airflow: 156 CFM | Noise: 21 dBA | Bearings: Dual Ball

      PRODUCT DESCRIPTION

      The ultra-quiet fan system is designed to cool home theaters, entertainment centers, and audio video cabinets. Included fans use a custom motor engineered to minimize noise during speed variations and are certified by CE and RoHS. Contains AC Infinity axial fans ACX-FD1225(B)05W5 which meet UL-507 standards for safety under Underwriters Laboratories certificate E503903. Containing dual ball bearings rated at 67,000 hours, the unit can be mounted in any direction. Features a CNC machined aluminum frame with a modern brushed black finish. Fans are set to exhaust air out the frame but this can be reversed to intake air using a screw driver. Includes all necessary hardware to easily mount the unit onto a cabinet and power it through a standard wall outlet.

      THERMAL CONTROLLER

      The controller features an on-board processor with active temperature monitoring as well as intelligent programming that will automatically adjust fan speeds to respond to varying temperatures. Additional features includes an alarm system, display lock or off while programs are running, six fan speeds, three back-light settings, two buffer options, and power failure memory. Features a detachable 6-foot precision thermal probe that is water resistant.

      CONNECTING ADDITIONAL UNITS

      For cabinets that requires more airflow, additional AIRPLATE S series cabinet fans can be connected to the included thermal controller. Up to six fans can share the same thermal controller or wall outlet power source. AIRPLATE S3/T3 contains one fan, AIRPLATE S7/T7 contains two fans, and AIRPLATE S9/T9 contains three fans.

      APPLICATIONS

      This ultra-quiet cooling system is popular in a variety of applications including home theaters, entertainment centers, and audio video cabinets; and smaller enclosures and racks holding computers, receivers, amplifiers, and other AV equipment.


         Manufacturer   AC Infinity Inc.
         Product Name   AIRPLATE T9
         Product Model   AI-APT9
         UPC Code   854759004396
         Product and Mounting Dimensions - Fan Unit
         Total Dimensions   17.50 x 6.10 x 1.30 in (43.9 x 15.5 x 3.3 cm)
         Backside Enclosure Dimensions   15.67 x 5.31 in (39.8 x 13.5 cm)
         Required Mounting Hole   15.75 x 5.35 in (40.0 x 13.6 cm)
         Hole to Hole Distance   16.54 x 5.25 in (42.0 x 13.6 cm)
         Screw Hole Size   Ø 0.197 in (Ø 0.5 cm)
         Cord Length   72 in (6 feet)
       Product and Mounting Dimensions - Controller
         Total Dimensions   5.20 x 3.11 x 1.10 in. (13.2 x 7.9 x 2.8 cm)
         Backside Enclosure Dimensions   4.41 x 2.68 in. (11.2 x 6.8 cm)
         Required Mounting Hole   4.48 x 2.76 in. (11.4 x 7.0 cm)
         Hole to Hole Distance   4.71 x 2.64 in. (12.0 x 6.7 cm)
         Screw Hole Size   Ø 0.119 in (Ø 0.3 cm)
         Display Size   2.25 x 1.25 in. (4.7 x 3.2 cm)
         Cord Length   72 in. (6 feet)
         Thermal Probe Length   72 in. (6 feet)

  Design   Black
   Design   Intake
   Total Airflow   200 CFM
   Total Noise   26 dBA
   Static Pressure   5.5 mm-H2O
   Operating Voltage   12V DC
   Power   20 W
   Current   1.6 A
   Wall Adapter Input   100 to 240V AC
   Operating Humidity   35 to 85% RH
   Operating Temperature   0 to 158°F
   Fan Bearings   Dual Ball
   Mounting Positions   Horizontal or Vertical
   L10 Life Expectancy   67,000 Hours
   Fan Quality Approvals   CE, RoHS

Data Sheet

Installation Manual

CAD Drawings
