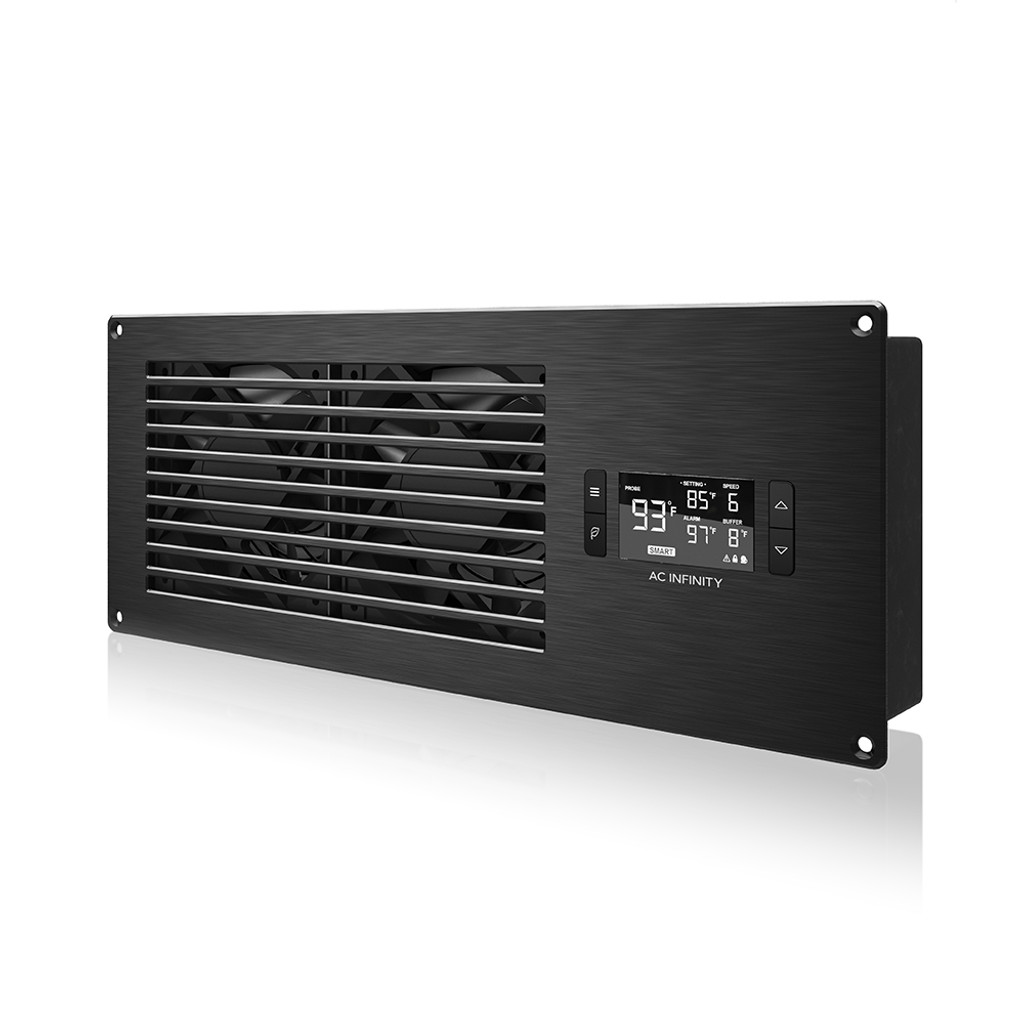

AC Infinity AIRFRAME T7 Black, AV Equipment Closet + Room Fan System 17", Exhaust, AC-AFT7-BE

S$ 381.50 S$ 381.50 GST Included
S$ 350.00 GST Included

Add to cart
Buy now
Add to wishlist

This content will be shared across all product pages.

Contact Us
Documents
AC-AFT7-BE CE Certification (Whole Product) AC-AFT7-BE Fan Unit Manual AC-AFT7-BE Mounting Template AC-AFT7-BE RoHS Cert. (Whole Product)
      • A high-airflow fan system designed for cooling AV equipment rooms, closets, and larger enclosures.
      • Programmable thermostat controller with automated speed control, alarm warnings, and backup memory.
      • Premium anodized aluminum construction with CNC-machined detailing for a professional appearance.

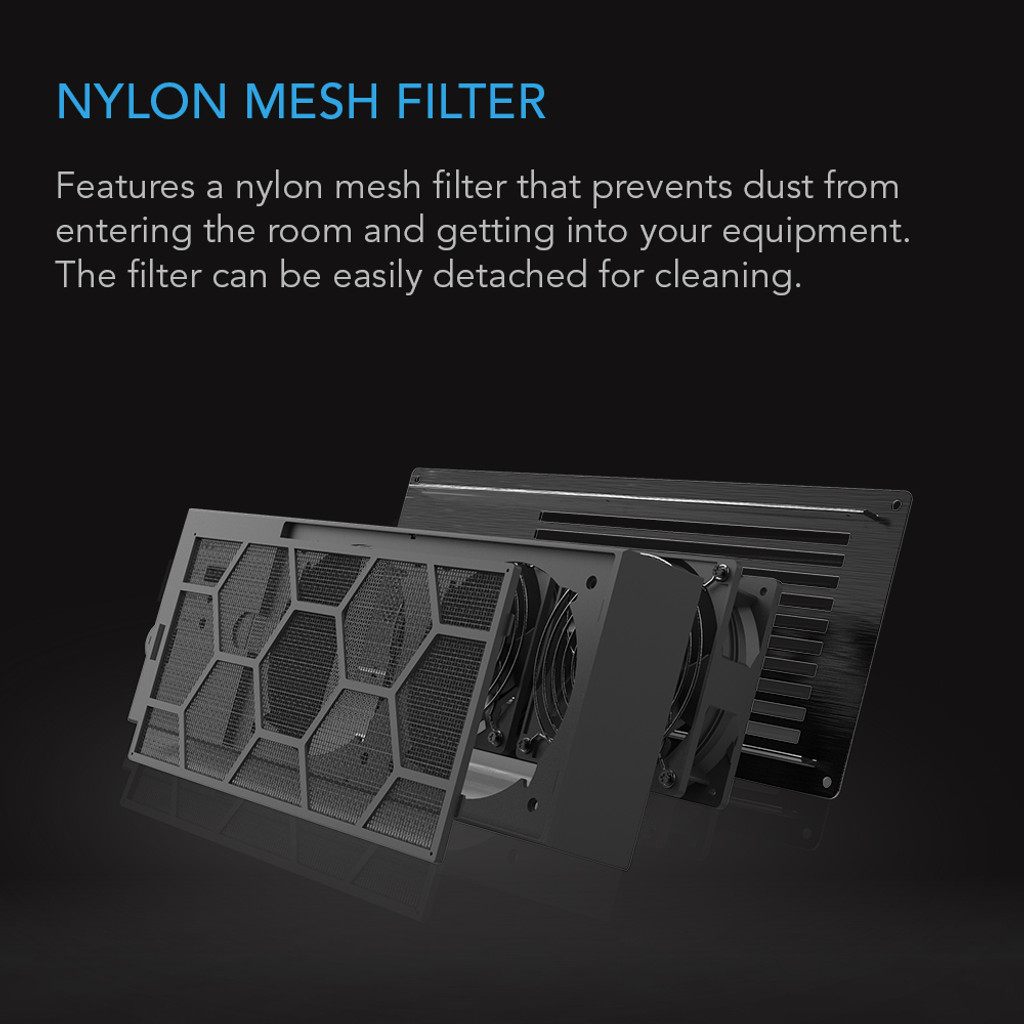

      • Features a detachable nylon-mesh filter which will prevent dust from entering the room and into equipment.
      • Color: Black | Design: Exhaust | Dims.: 16.5 x 6.5 x 2.3 in. | Airflow: 200 CFM | Noise: 26 Dba | Bearings: Dual Ball

      • PRODUCT DESCRIPTION

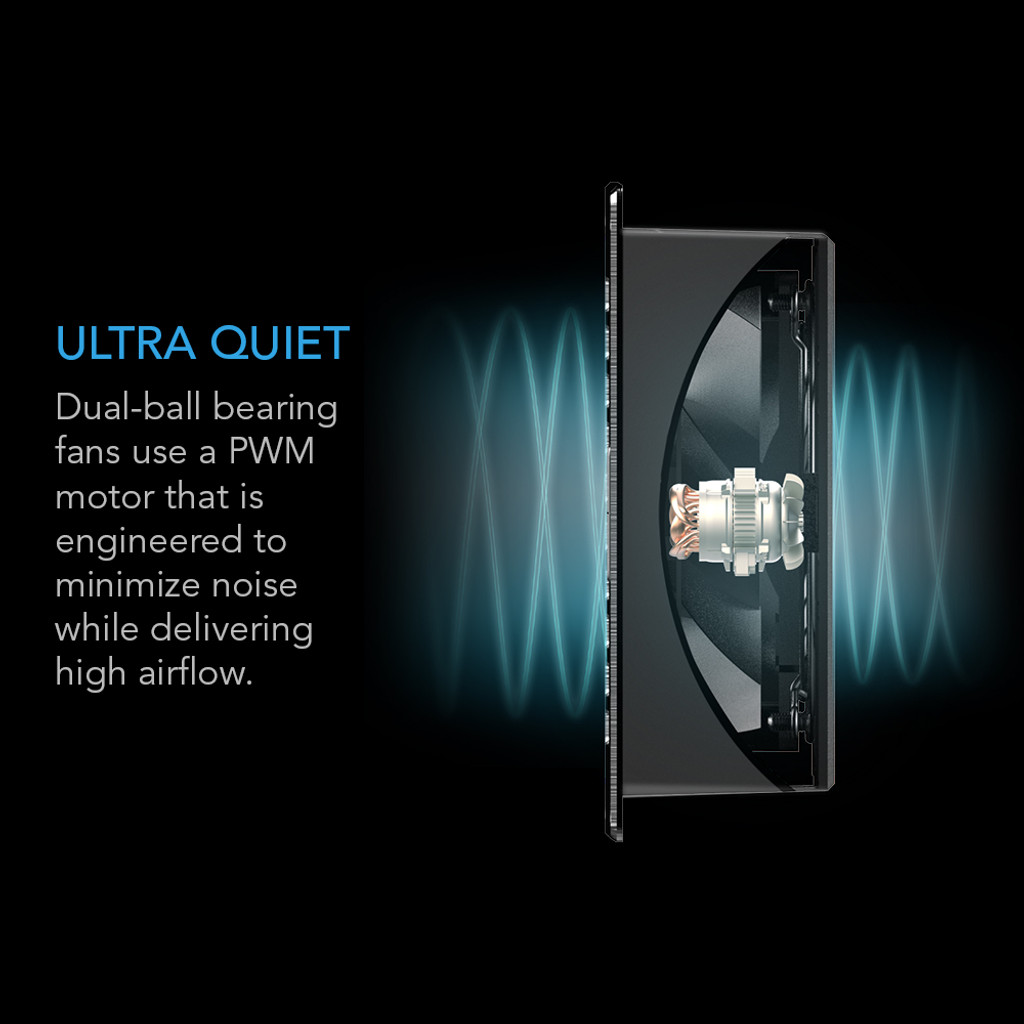

      The AIRFRAME series is designed to intelligently cool AV closets, rooms, and large enclosures. Featuring thermal control and high airflow fans, the system efficiently cools rooms holding various audio video components and equipment. Each unit includes a nylon-mesh filter which can prevent dust particles from entering the room and getting into your equipment. This filter can be easily detached for cleaning. Each fan is engineered to maximize airflow while keeping noise levels to a minimum. Features long life dual ball bearings that are rated at 67,000 hours and allows this fan system to be mounted horizontally or vertically. The frame is constructed with premium aluminum alloy, carefully anodized, brushed, and machined for a professional and detailed appearance. Includes all necessary hardware to easily mount the unit onto a door or wall, and power it through an outlet.

      INTELLIGENT COOLING

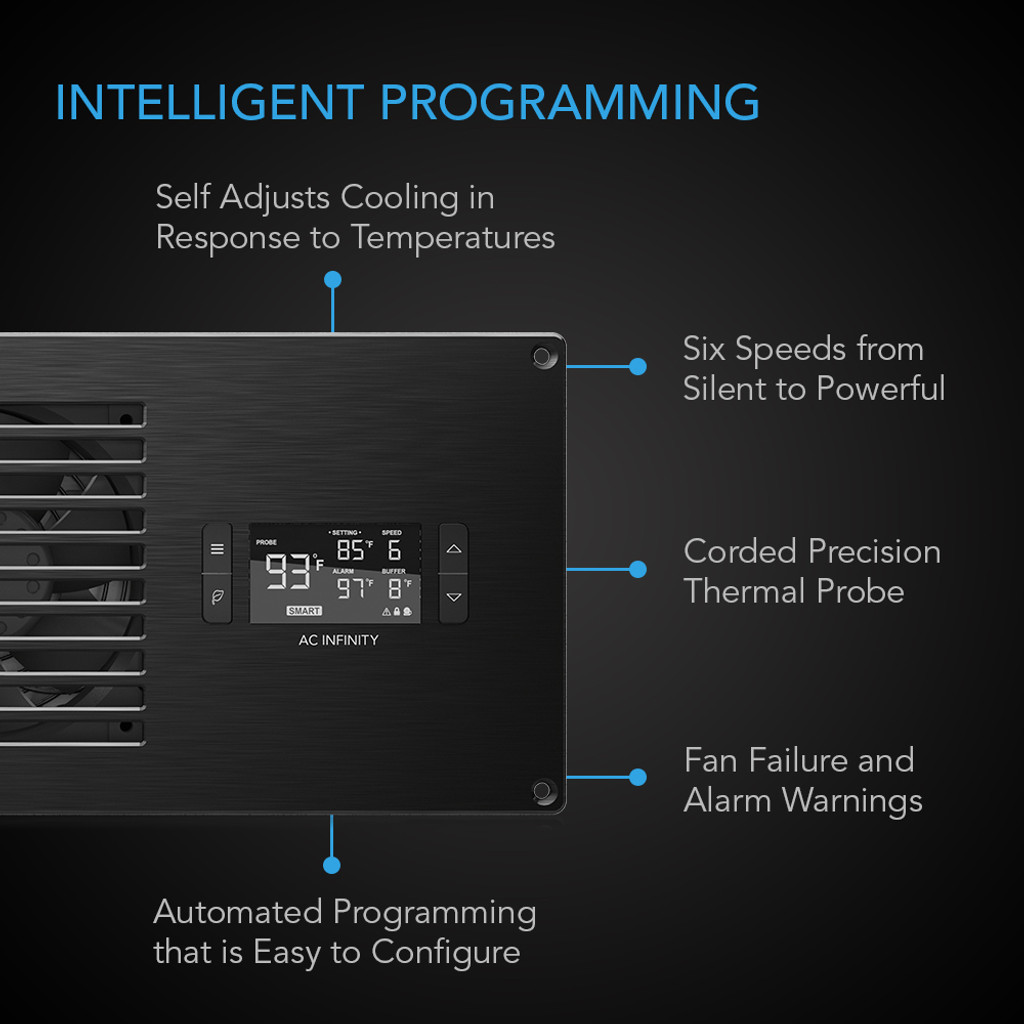

      Programming includes an easy-to-use thermostat and a SMART mode that automatically adjusts the fan’s speed to react to varying temperatures. Additional features include alarm alerts, fan failure triggers, power savings setting, display lock, and backup memory. Six fan speeds are available with three screen brightness settings.

      APPLICATIONS

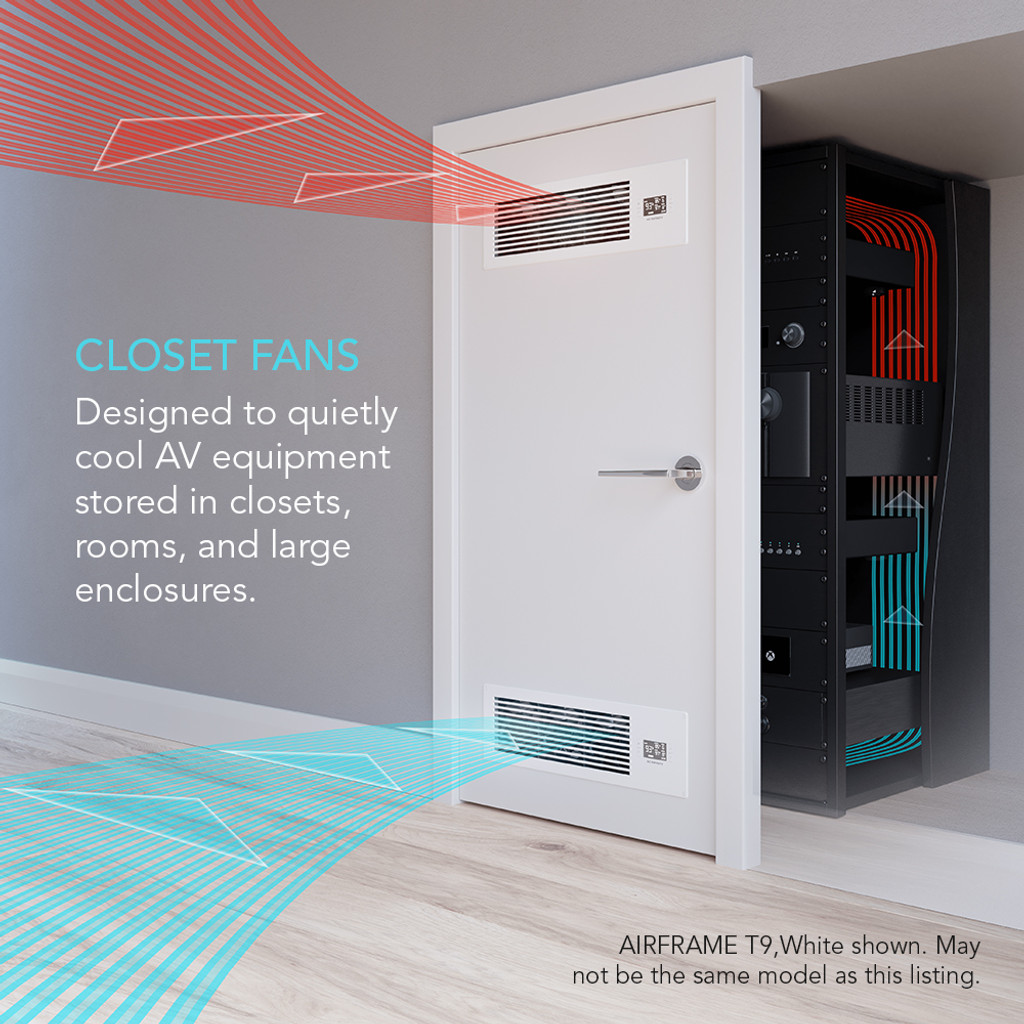

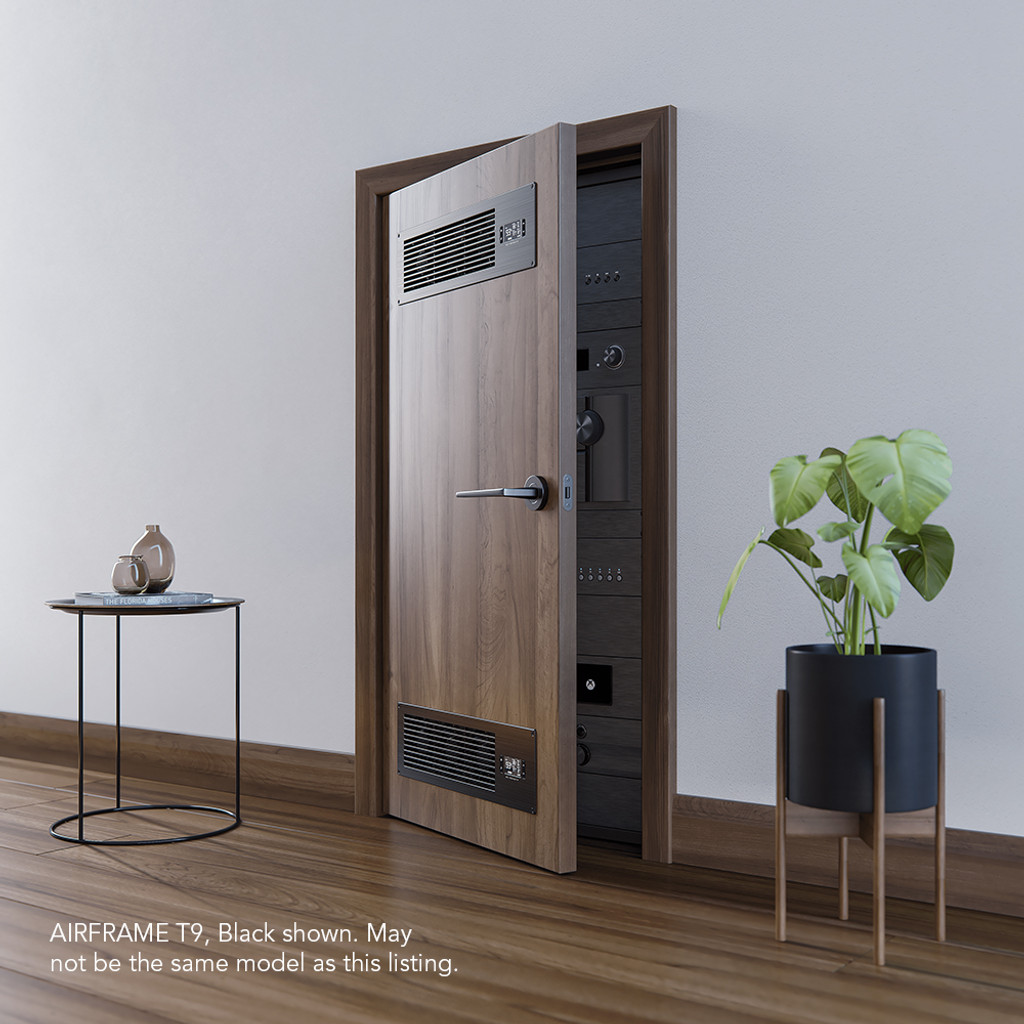

      This high airflow fan system can be mounted on the door or walls of equipment closets, rooms, and larger-sized enclosures. An airflow rating of 200 CFM will provide proper cooling to small AV closets holding server, network, IT and equipment racks.


    •    Manufacturer   AC Infinity Inc.
         Product Name   AIRFRAME T7 Black, Exhaust
         Product Model   AC-AFT7-BE
         UPC Code   819137020153

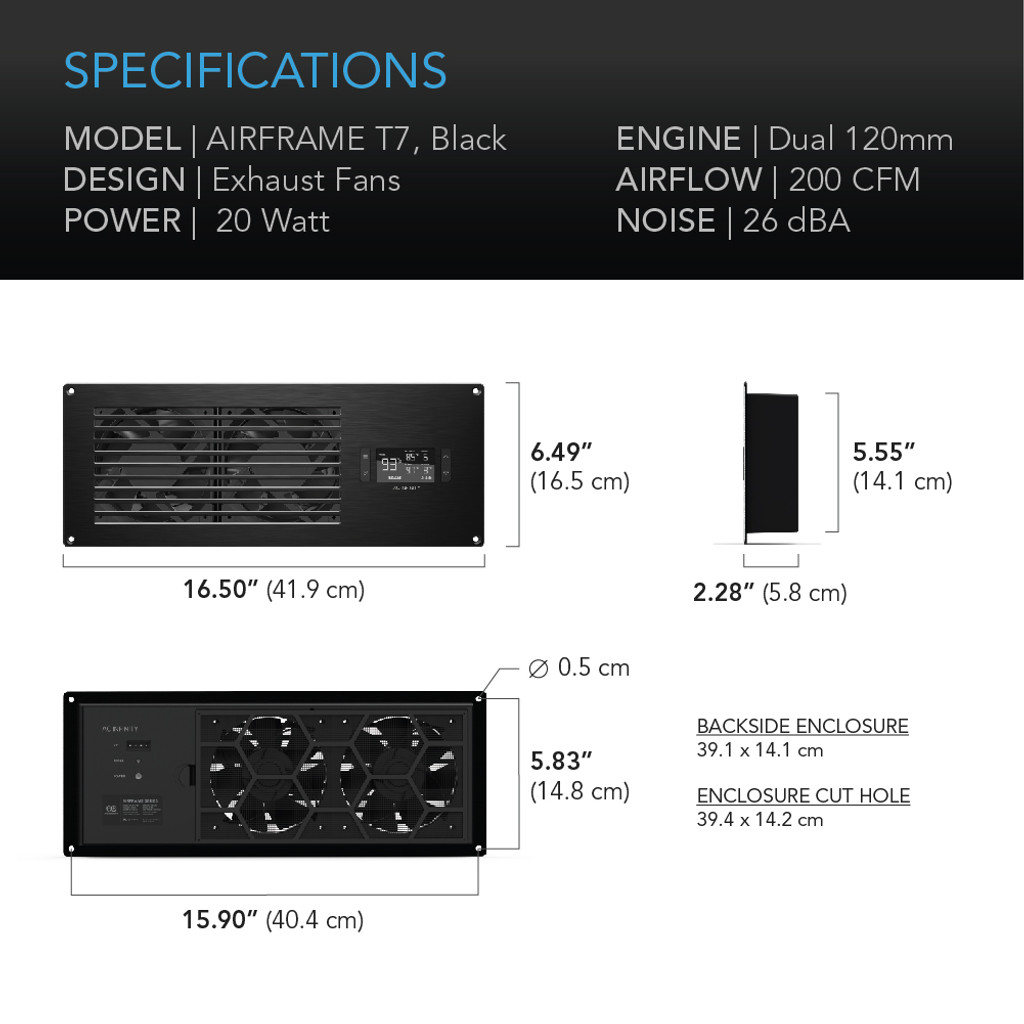

         Product and Mounting Dimensions - Fan Unit
         Total Dimensions   16.5 x 6.49 x 2.28 in. (41.9 x 16.5 x 5.8 cm)
         Backside Enclosure Dimensions   15.39 x 5.55 in. (39.1 x 14.1 cm)
         Required Mounting Hole   15.51 x 5.59 in. (39.4 x 14.2 cm)
         Hole to Hole Distance   15.90 x 5.83 in. (40.4 x 14.8 cm)
         Screw Hole Size   Ø 0.197 in (Ø 0.5 cm)
         Cord Length   72 in (6 feet)

   Color
   Black
   Design   Exhaust
   Total Airflow   200 CFM
   Total Noise   26 dBA
   Static Pressure   5.5 mm-H2O
   Operating Voltage   12V DC
   Power   20 W
   Current   1.6 A
   Wall Adapter Input   100 to 240V AC
   Operating Humidity   35 to 85% RH
   Operating Temperature   0 to 158°F
   Fan Bearings   Dual Ball
   Mounting Positions   Horizontal or Vertical
   L10 Life Expectancy   67,000 Hours
   Fan Quality Approvals   CE, RoHS

Data Sheet

Installation Manual

CAD Drawings
