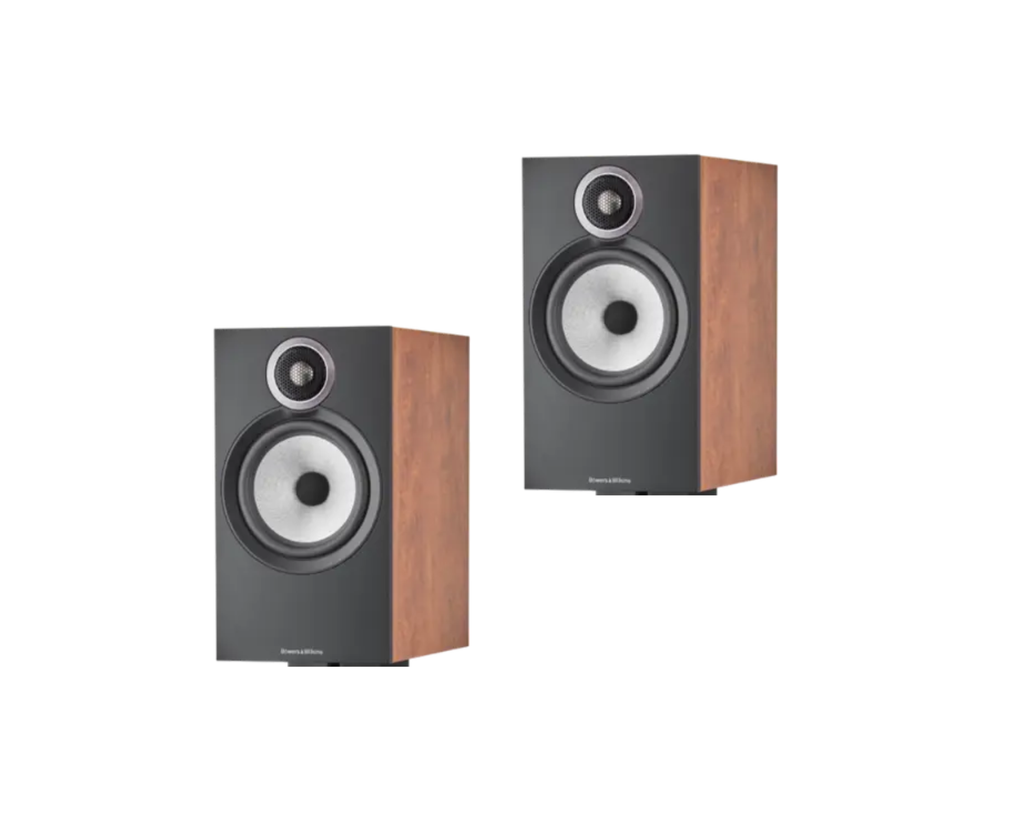

The 606 S3 bookshelf speaker provides the ideal combination of size and performance. It combines Bowers and Wilkins’ all-new Titanium Dome tweeter with the powerful accuracy and transparency of their acclaimed Continuum bass/midrange cone. Taking the award-winning 606 formula and evolving it, the 606 S3 is now even more appealing to even more music lovers.
Continuum Cone
Thanks to its composite construction, the Continuum Cone avoids the abrupt transitions in behavior that can impair the performance of a conventional drive unit. The result is a more open, neutral performance that delivers voices and instruments with precision and transparency.
Titanium Dome Tweeter
The new 606 S3 introduces Bowers & Wilkins' all-new Titanium Dome tweeter, which combines exceptional resolution and insight with smooth, refined high-frequency reproduction. The result? An accurate and immersive insight into your favorite music.
New Tweeter Grille Mesh
The 600 Series introduces Bowers & Wilkins' new and even more acoustically transparent tweeter grille mesh, first developed for their revered Signature models. Alongside the new Titanium Dome tweeter, the result is exceptional resolution and realism.
Upgraded Speaker Terminals
Derived from the speaker terminals recently introduced in the 700 Series range, the speaker terminals on the new 600 Series feature an improved layout and a cleaner signal path between your amplifier and your loudspeakers.

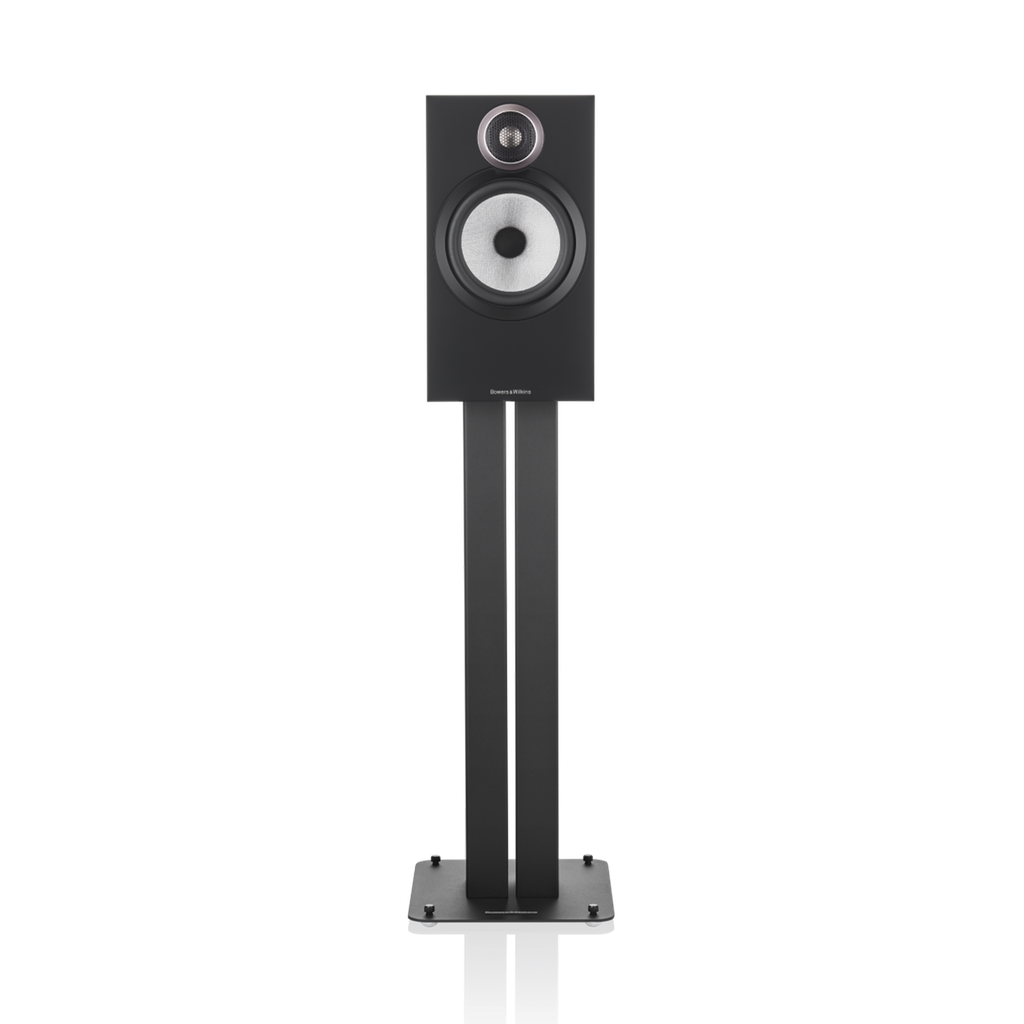

*Stand(s) not included
Technical features
Decoupled Double Dome Titanium tweeter
Continuum™ cone bass / midrange
Flowport™
Description: 2-way vented-box system
Drive units
1x ø25mm (1 in) Titanium Dome high-frequency
1x ø165mm (6.5 in) Continuum cone bass / midrange
Frequency range: -6dB 40Hz - 33kHz
Frequency response (+/-3dB from reference axis): 52Hz - 28kHz ±3dB
Sensitivity (on axis at 2.83Vrms at 1m): 88dB
Harmonic distortion 2nd and 3rd harmonics (90dB, 1m on axis)
<1% 100Hz - 22kHz
<0.5% 150Hz - 12kHz
Nominal impedance: 8Ω (minimum 3.7Ω)
Recommended amplifier power: 30W - 120W into 8Ω on unclipped program
Max. recommended cable impedance: 0.1Ω
Dimensions Cabinet Only (W x H x D): 7.4” x 13.6” x 11.8”
Dimensions with Grille and Terminals (W x H x D): 7.4” x 13.6” x 12.9”
Weight: 15.5 lbs
606 S3 2-Way Bookshelf Speakers with 6.5" Continuum Cone Driver
Grilles
Foam Plugs
Self-adhesive Rubber Feet
Literature Pack
*Stand(s) not included
Data Sheet
Installation Manual
CAD Drawings
