  3. Bowers & Wilkins CCM663RD Performance two-way in-ceiling speaker -Pair - DEMO UNIT

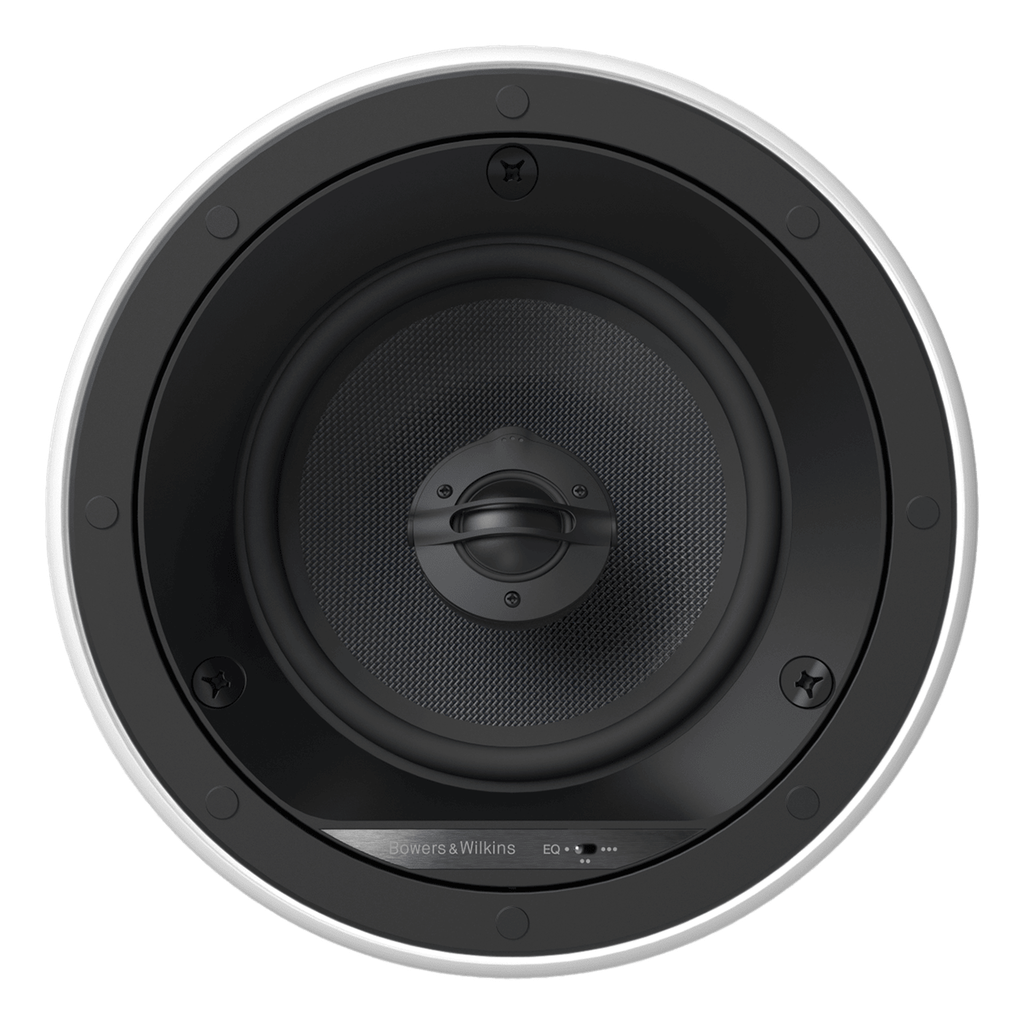

Bowers & Wilkins CCM663RD Performance two-way in-ceiling speaker -Pair - DEMO UNIT

https://www.hap.sg/web/image/product.template/2436/image_1920?unique=bf9abe0

S$ 0.00 0.0 SGD S$ 0.00 GST Included

S$ 906.42 GST Included

Ask for Quote

    This combination does not exist.

    Contact Us


    This high-performance 6in in-ceiling speaker features a Nautilus swirl-loaded 25mm (1in) aluminum dome tweeter that pivots for adjustable off-axis treble response. Other highlights include a bass/midrange driver with a rigid die-cast chassis and a three-position EQ switch. The maximum amp power is 130W. Installation couldnt be easier, thanks to our QuickDogsTM fixing system and plug-and-play connection.
      • Description: 2-way in-ceiling system
      • Drive Units:
        • 1x @25mm (1in) Nautilus swirl loaded aluminium dome tweeter
        • 1x @150mm (6in) blue Kevlar cone bass/midrange
      • Frequency Range (-6dB): 45Hz – 50kHz
      • Recommended Amp Power: 25 – 130w
      • Sensitivity SPL (2.83V, 1m): 88dB
      • Impedance Nominal (min): 8 ohms (4.5 ohms)
      • Frame diameter: 240mm (9.5in)
      • Cut-out diameter: 202mm (8in)
      • Depth behind surface: 133mm (5.2in)
      • Protrusion: 4mm (0.2 in)
      • Pre-mount Kit: C6
      • Back Box: 6C

      • What's In The Box

      • CCM Series speaker assembly (baffle, frame, and bezel, grille)
      • Cut-out template
      • Paint mask
      • Document pack containing Quick Start Guide and Warranty information

      • – Read Less

      • CCM Series speaker assembly (baffle, frame, and bezel, grille)
      • Cut-out template
      • Paint mask
      • Document pack containing Quick Start Guide and Warranty information


    Data Sheet

    Installation Manual

    CAD Drawings
